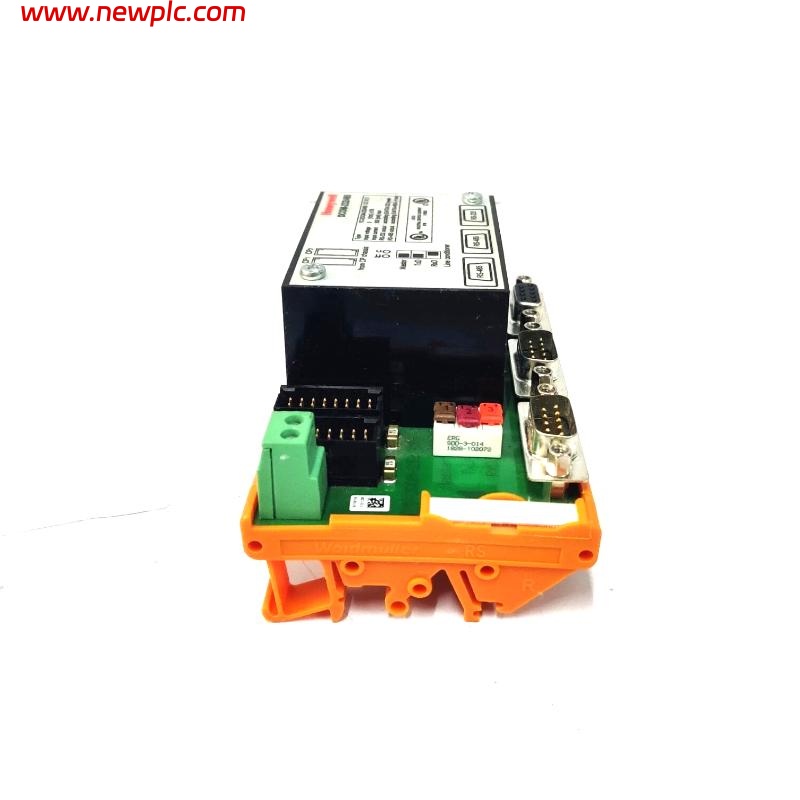

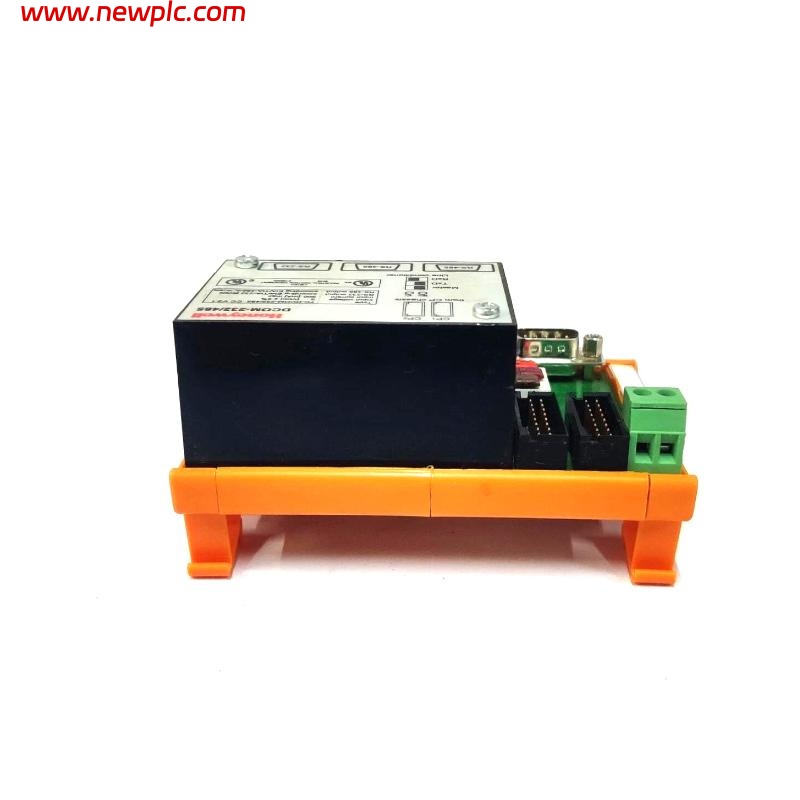

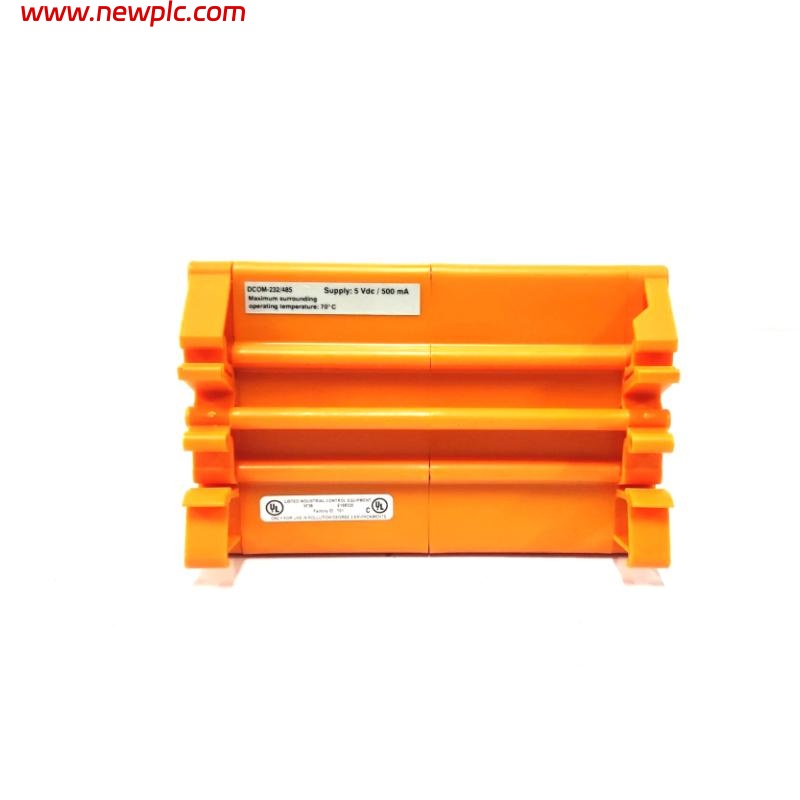

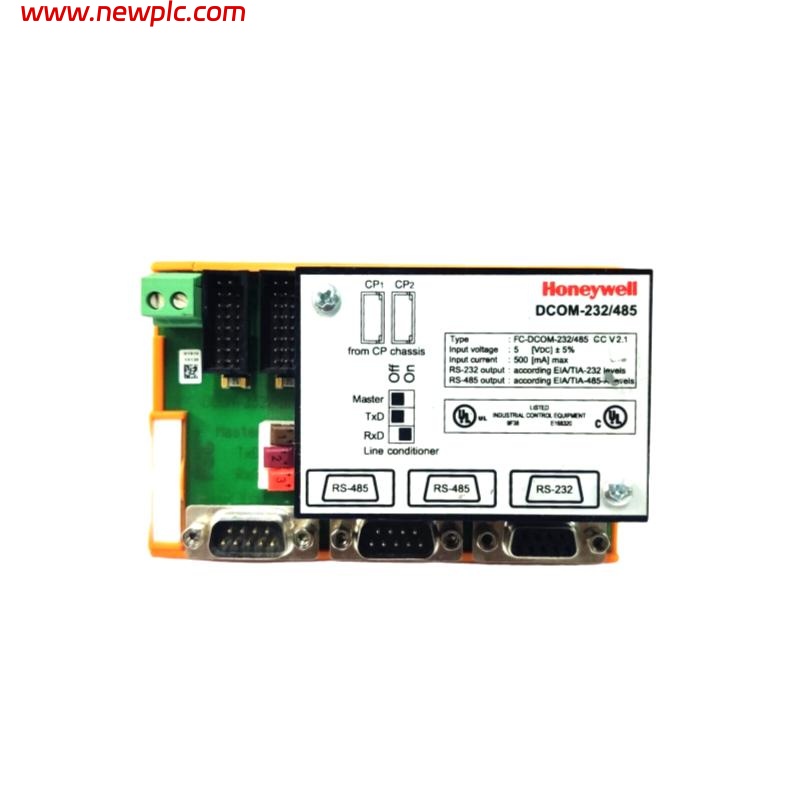

Honeywell FS-DCOM-232/485 Communication Interface Module

FAQ

Q1: What communication protocols does FS-DCOM-232/485 support?
A1: It supports RS232, RS422, and RS485 communication protocols.

Q2: What is the power input voltage for the FS-DCOM-232/485?
A2: The input voltage is 5 VDC ±5%, supplied by the control processor.

Q3: What is the maximum data rate supported by the module?
A3: RS232 supports up to 250 kBd, and RS485/422 supports up to 2 MBd.

Q4: What are the dimensions and weight of the FS-DCOM-232/485?
A4: The dimensions are 110 × 70 × 61 mm, and the weight is 0.66 kg.

Q5: How is the module mounted?
A5: It is mounted on DIN EN standard rails TS32 or TS35 × 7.5.

Q6: Does the module require a separate power supply line?
A6: No, it is powered by the connected control processor.

Q7: What certifications does the FS-DCOM-232/485 have?
A7: It is certified with CE, TUV, UL, and FM.

Q8: What encoding modes are supported for RS485/422?
A8: It supports transparent, FM0, FM1, and Manchester encoding.

Communication Interface Module FS-DCOM-232/485 Honeywell
