Technical Specifications
| Parameter | Specification |
|---|---|

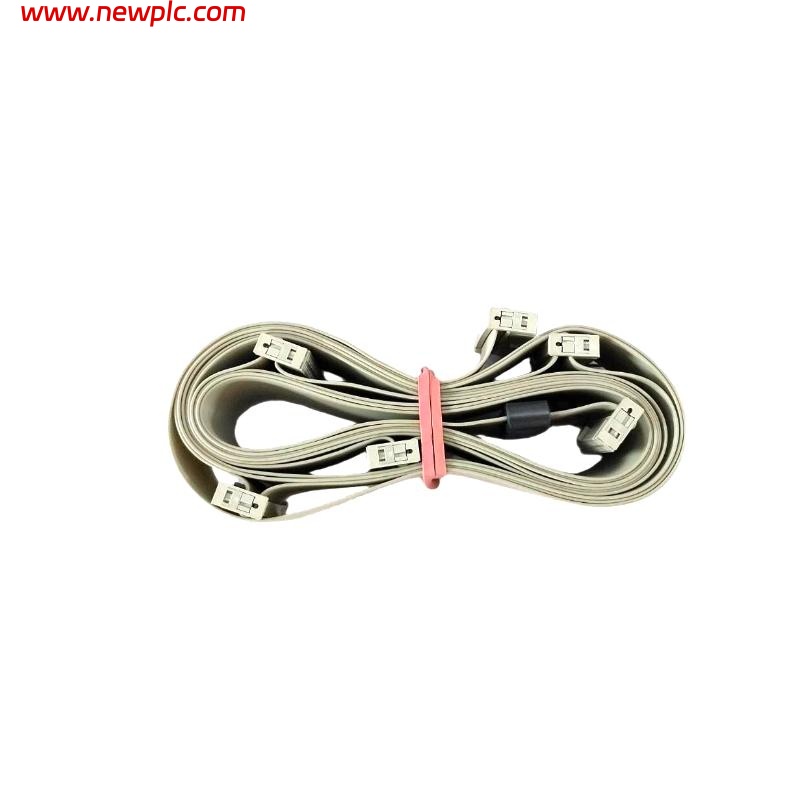

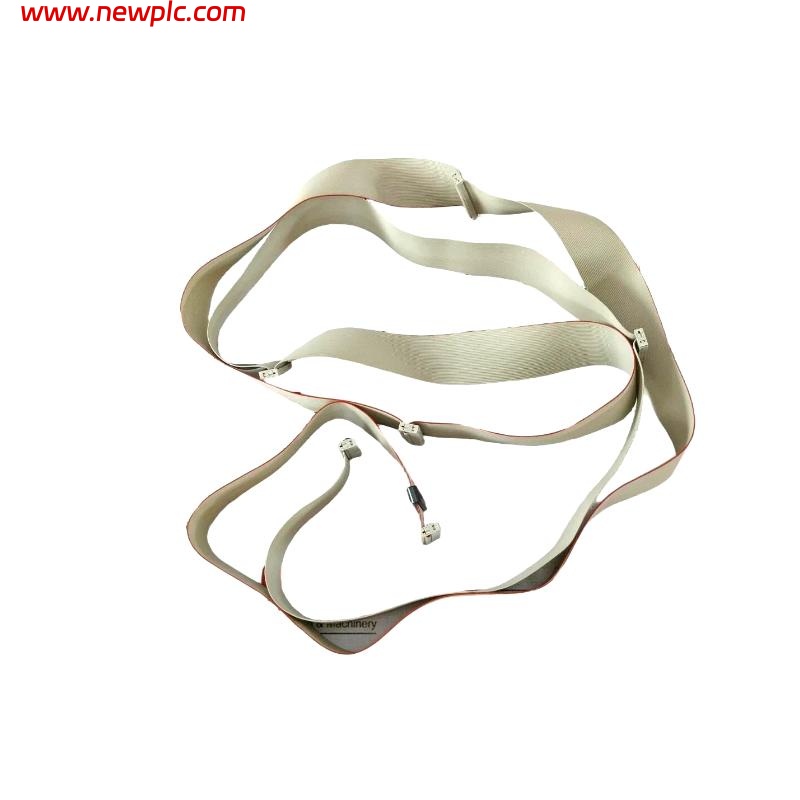

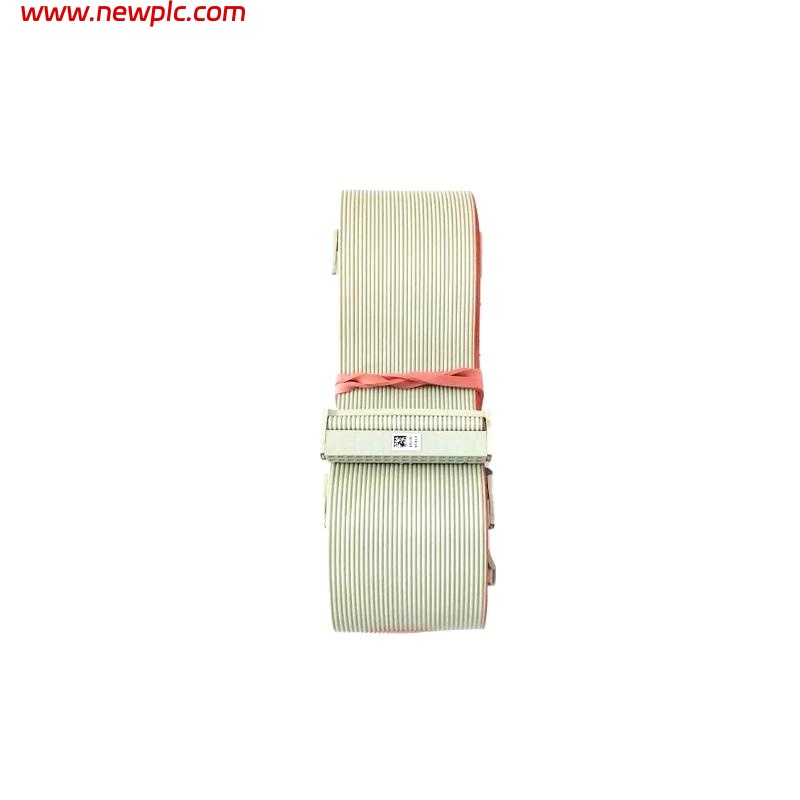

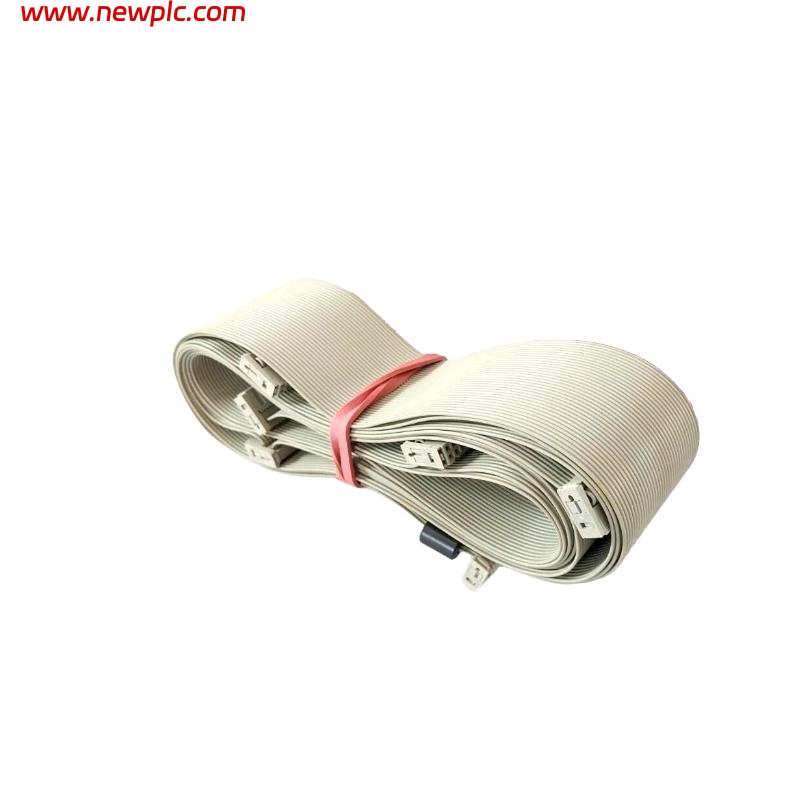

| Function | Connects controller chassis to I/O chassis, enables data exchange between QPP and I/O modules |
| Controller Side Connector | 34 pole latch (female) |
| I/O Chassis Side Connector | 34 pole latch (female) |
| Cable Type | Custom multi-conductor shielded cable |
| Cable Length | Typically 2 meters |
| Weight | 0.31 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Approvals | UL, CSA, FM |
| Key Feature | High-speed communication, reliable data transfer, shielded design |
FAQ
FAQ
-
Q1: What is the maximum number of I/O chassis that can be connected using FS-IOBUS-CPIO?
A1: The FS-IOBUS-CPIO can support up to 4 I/O chassis per controller, depending on system configuration and cable length. -
Q2: Can the FS-IOBUS-CPIO operate in a high-temperature industrial environment?
A2: Yes, it is rated for operation between -20°C and +70°C, suitable for most industrial settings. -
Q3: What type of signal integrity measures are built into the FS-IOBUS-CPIO?
A3: It uses shielded multi-conductor cables to minimize electromagnetic interference and ensure reliable data transmission. -
Q4: Is FS-IOBUS-CPIO compatible with third-party I/O modules?
A4: Yes, it supports integration with standard CPIO I/O modules while converting the proprietary controller bus signals. -
Q5: How is the FS-IOBUS-CPIO physically connected to the chassis?
A5: The controller side and I/O chassis side both use 34 pole latch connectors for secure attachment. -
Q6: What maintenance procedures are recommended for FS-IOBUS-CPIO?
A6: Regular visual inspection for cable wear, ensuring connectors are firmly latched, and checking for signal errors in the system. -
Q7: Can FS-IOBUS-CPIO support hot-swapping of I/O chassis?
A7: No, the system should be powered down during addition or removal of I/O chassis to prevent data corruption. -
Q8: What certifications ensure the reliability and safety of FS-IOBUS-CPIO?
A8: It carries UL, CSA, and FM approvals, confirming compliance with industrial safety and reliability standards.
