Technical Specifications
| Parameter | Specification |
|---|---|

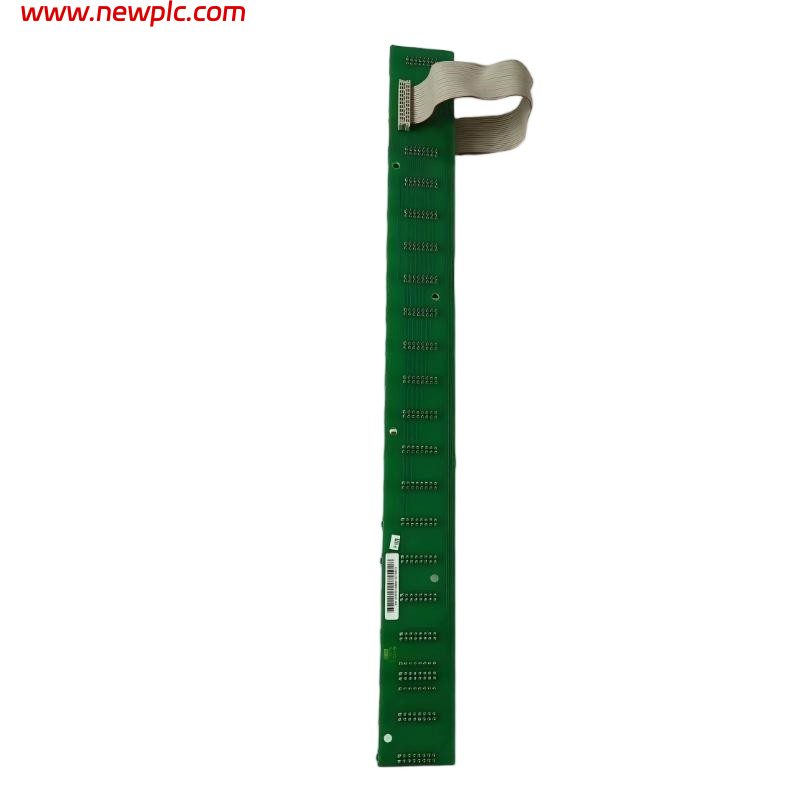

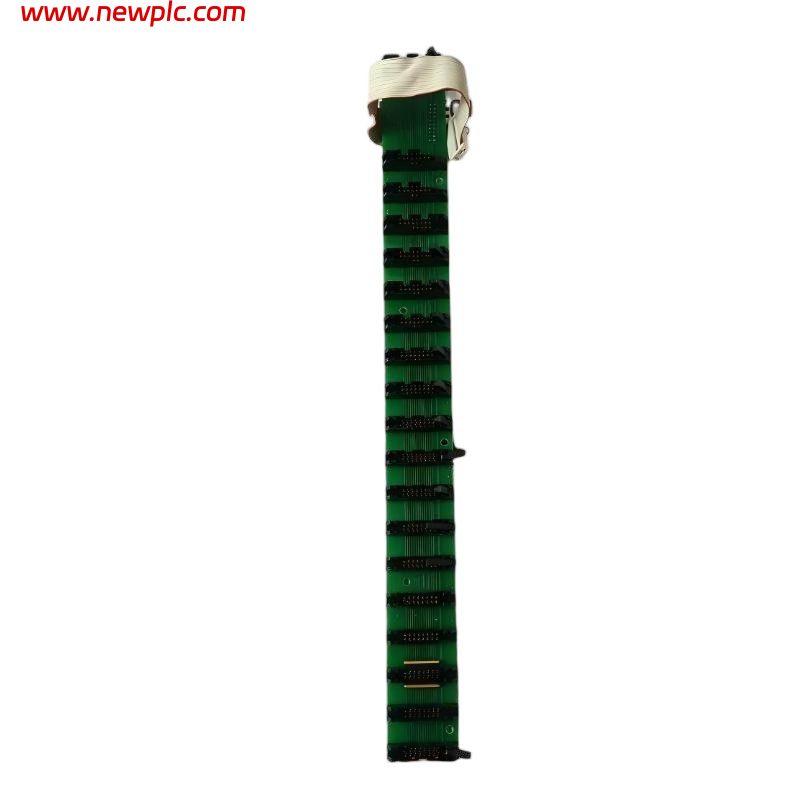

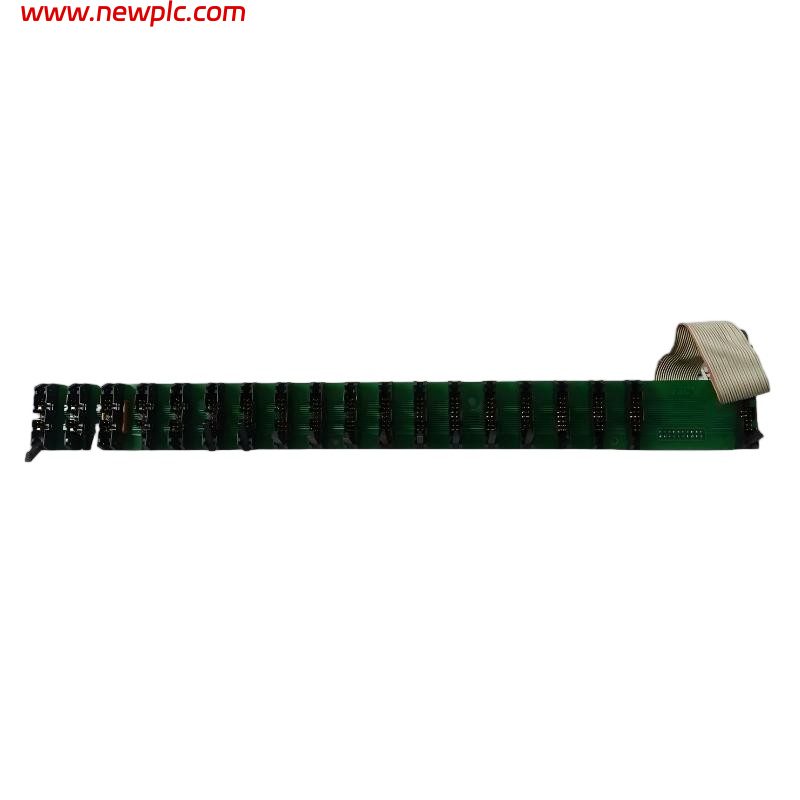

| Product Name | Honeywell FS-IOBUS-HBS |
| Product ID | FS-IOBUS-HBS |
| Manufacturer | Honeywell |
| Product Type | I/O Bus Backplane / Horizontal I/O Bus Module |
| Series | Honeywell Safety Manager / FSC / IO System Architecture |
| Function | Provides high-speed communication and signal routing between controller chassis and I/O chassis via system bus backplane |
| Bus Type | I/O Bus (system backplane communication) |
| Communication Protocol | Proprietary Honeywell I/O Bus (system dependent) |
| Power Supply | 24 VDC (system dependent) |
| Power Consumption | Low-power backplane module (system dependent) |
| I/O Capacity | Supports multi-rack / multi-module I/O expansion (system dependent) |
| Connector Type | 34-pin / flat cable bus interface (system dependent) |
| Data Transfer Rate | High-speed deterministic I/O scanning (system dependent) |
| Operating Temperature | −40°C to +70°C |
| Mounting Type | 19-inch industrial chassis / rack backplane |
| Application | Safety systems, process control systems, turbine control, petrochemical plants, power generation |
| System Compatibility | Honeywell Safety Manager / FSC / distributed I/O architectures |
| Dimensions & Weight | Approx. 125 × 95 × 35 mm; weight approx. 0.20–0.35 kg |
FAQ
FAQ
Q1: What is the FS-IOBUS-HBS used for?
It is used as an I/O bus backplane to enable communication between controller chassis and I/O chassis in Honeywell safety/control systems.
Q2: Is it a controller or an I/O module?
Neither. It is a bus/backplane interface module, not a processing controller or field I/O module.
Q3: What systems is it used in?
It is used in Honeywell Safety Manager / FSC-related distributed I/O architectures.
Q4: What is its main function?
It manages high-speed data exchange between controller and I/O racks through the system I/O bus.
Q5: What is the operating voltage?
Typically 24 VDC, depending on system configuration.
Q6: What are the dimensions and weight?
Approximately 125 × 95 × 35 mm and about 0.20–0.35 kg.
Q7: Is it interchangeable with FS-IOBUS-HBR?
No. HBS and HBR are different bus/backplane variants (non-redundant vs redundant architecture depending on system design).
Q8: What should be checked before replacement?
Verify system architecture (FSC/Safety Manager), bus type (HBS vs HBR), chassis compatibility, and wiring/backplane configuration.
