Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FS-PDC-MB24-2P |
| Cable Type | CC600 2 × 6 mm² |
| Voltage | 24 V DC |
| Approvals | UL, CSA, FM (pending) |
| Connector (Mains Power Bar) | 2-pole Squeeze To Release D-TAB-200-STR |
| Connector (FTA/Board Side) | Weidmuller BVZ 7.62HP/02F SN with keying |
| Cable Length | 2.45 m (96.5 in) |
| Packaging Weight | 3 kg |
FAQ
FAQ
Q1: What is the application of FS-PDC-MB24-2P?
A1: It distributes 24V DC from the main power rail to FTAs or 24V DC power distribution boards.
Q2: What is the standard cable length of FS-PDC-MB24-2P?
A2: The standard length is 2.45 meters (96.5 inches).
Q3: What is the cable construction?
A3: It uses CC600 2×6mm² dual wires for low impedance and stable power delivery.
Q4: What type of connectors does it use?

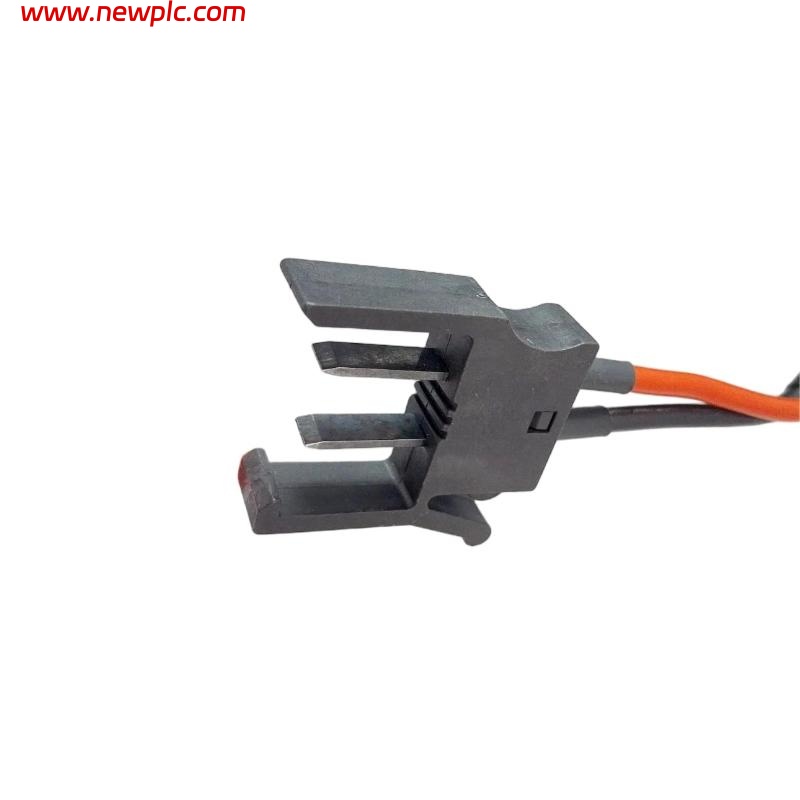

A4: One end has a 2-pole D-TAB-200-STR quick-release connector, the other has a Weidmuller BVZ 7.62HP/02F SN keyed connector.
Q5: What certifications does it have?
A5: UL, CSA, and FM certifications are pending.
Q6: What is the packaging weight?
A6: Approximately 3 kilograms.
Q7: Can it be used in high-temperature environments?
A7: It is designed for use inside standard enclosures within the recommended temperature range.
Q8: Can this model replace FS-PDC-MB24-1P or 3P?
A8: Yes, but choose the proper model based on the required length; 1P, 2P, and 3P correspond to different lengths.
