Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FS-PDC-MBMB-1 |
| Cable Type | HV8-55-c (AWG 8) |
| Power Rating | 55 A |
| Voltage Compatibility | 24 VDC / 48 VDC |
| Connector Type | 2-pole Jackscrew |
| Connector Model | D-TAB-200-JCK with D-TAB-200-8-S pins |
| Cable Length | 3 meters |
| Temperature Rating | Max. 125 °C (257 °F) |
| Approvals | UL, CSA; FM pending |
| Packaging Weight | 3 kg |
FAQ
FAQ
Q1: What voltage is this cable designed for?
A1: The FS-PDC-MBMB-1 supports 24VDC and 48VDC power distribution.
Q2: What is the current rating of the cable?
A2: The cable is rated for up to 55A.
Q3: What is the length of this cable?
A3: The standard length of the cable is 3 meters.
Q4: What is the maximum temperature the cable can withstand?
A4: The maximum operating temperature is 125°C (257°F).

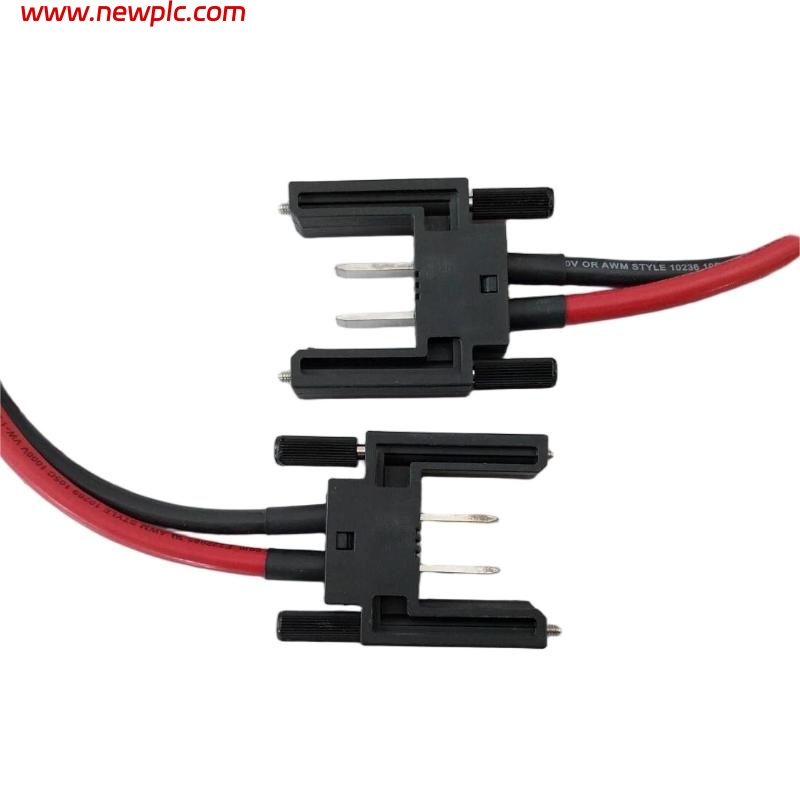

Q5: What type of connectors are used at both ends?
A5: Both ends use 2-pole jackscrew connectors, model D-TAB-200-JCK with D-TAB-200-8-S pins.
Q6: Does the cable have any certifications?
A6: The product is UL and CSA certified, with FM certification pending.
Q7: What is the weight of the cable?
A7: The packaging weight is approximately 3 kg.
Q8: Are there special requirements when the secondary rail load exceeds 30A?
A8: Yes, when the load exceeds 30A (up to 100A), it is recommended to use two FS-PDC-MBMB-1 cables, one at the top and one at the bottom of each power rail for parallel connection.
