Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FS-TSDI-16UNI |

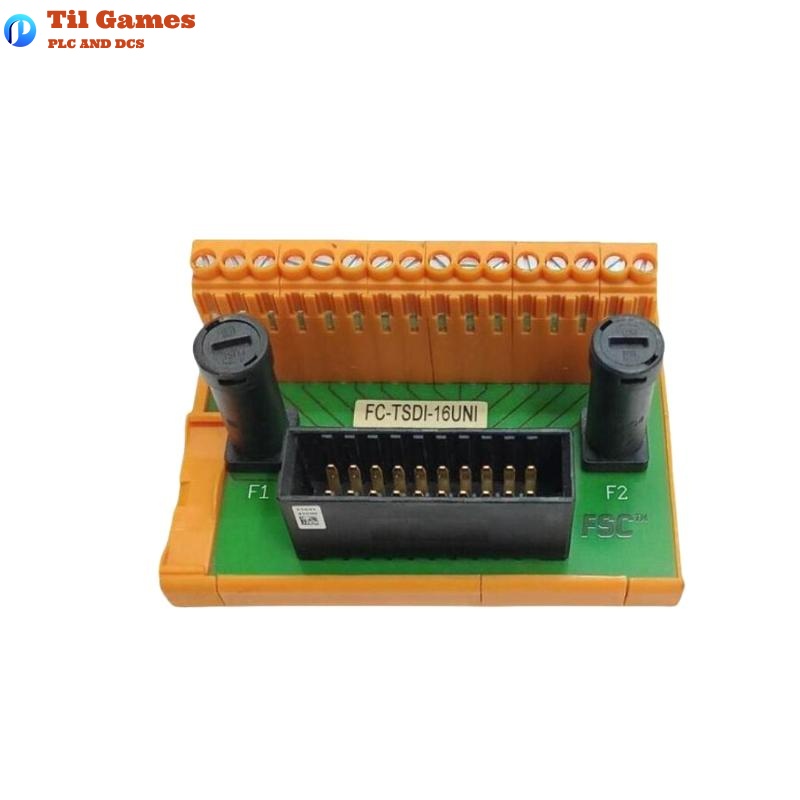

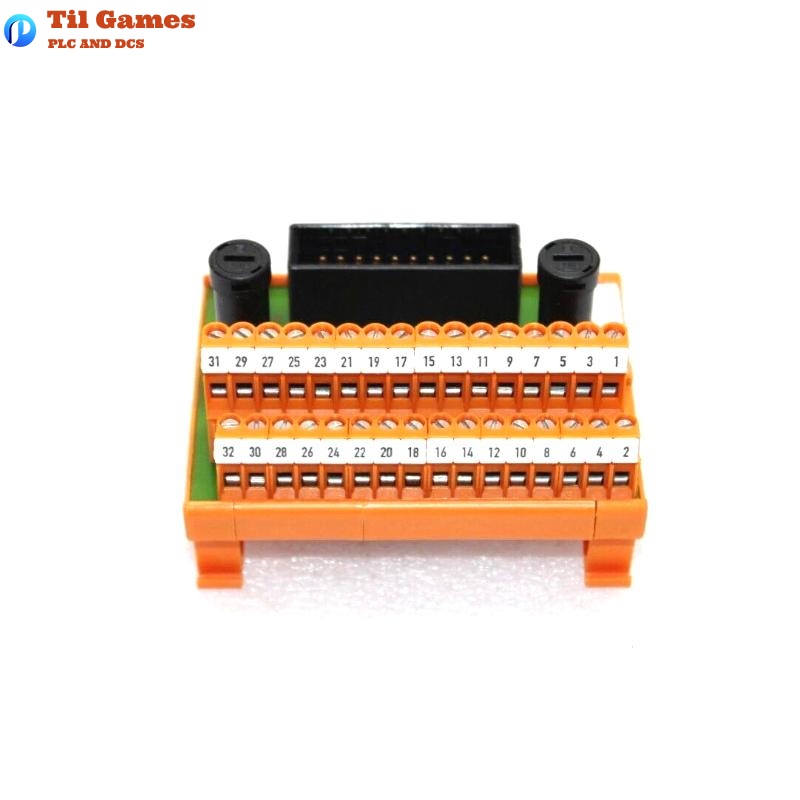

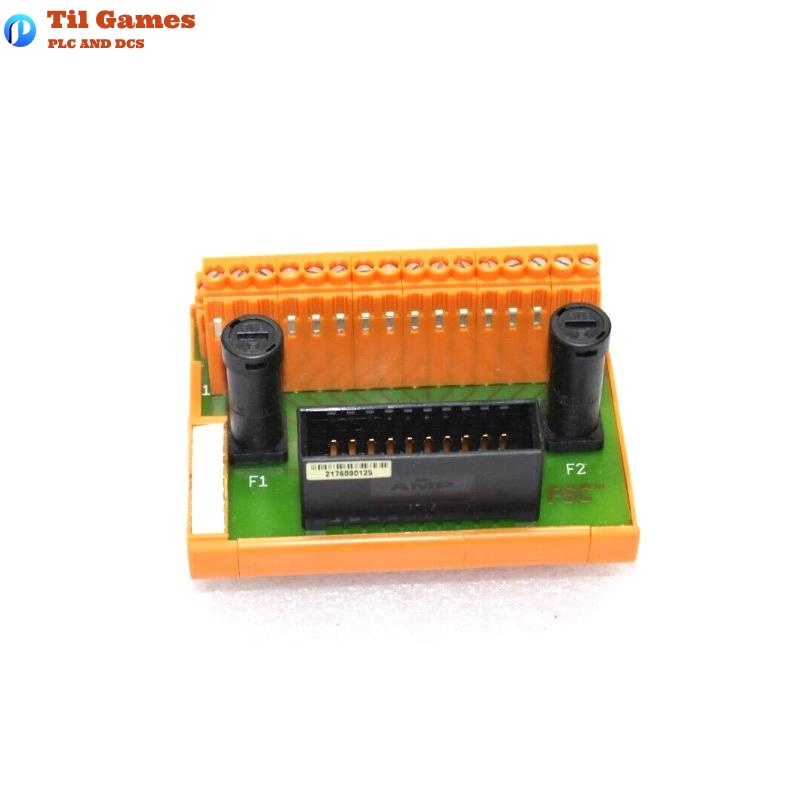

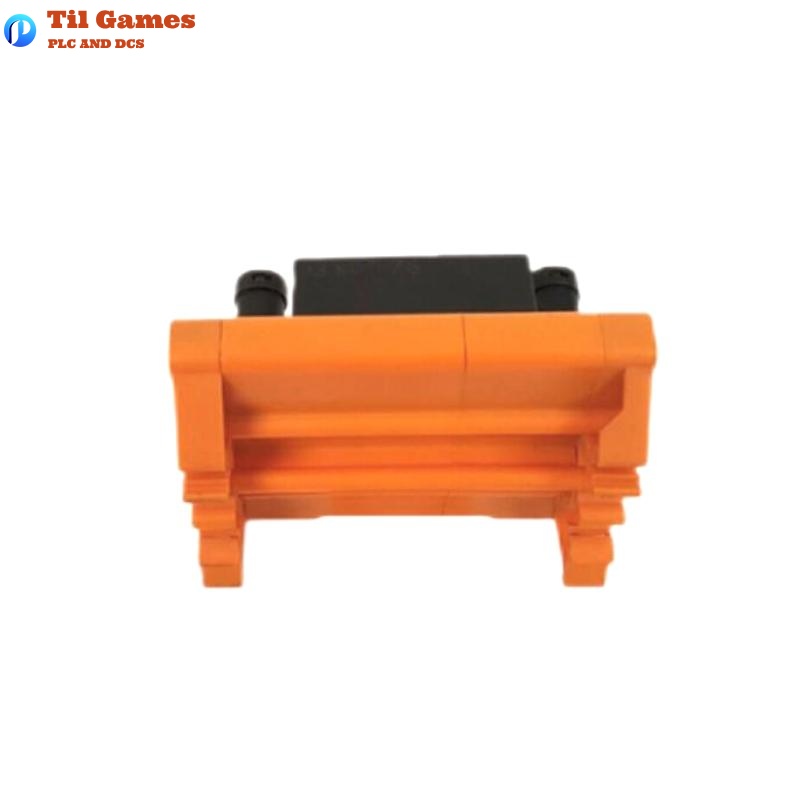

| Type | Safe Digital Input Field Termination Assembly |
| Number of Channels | 16 (2 groups of 8 channels) |
| Maximum Voltage | 50 VDC (OV category 3); 150 VDC (OV category 2) |
| Actual Max Voltage | Defined by connected input module |
| Fuse Rating | 250 mAT (slow-acting) |
| Fuse Dimensions | 5 × 20 mm |
| Terminal Type | Screw terminals |
| Max Wire Diameter | 2.5 mm² (AWG 14) |
| Strip Length | 7 mm |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| DIN Rail Compatibility | TS32 / TS35 × 7.5 |
| Used Rail Length | 91 mm (3.58 in) |
| Dimensions (L × W × H) | 90 × 70 × 60 mm |
| Weight | 0.36 kg |
| Certifications | CE, TUV, UL, CSA, FM |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the FS-TSDI-16UNI support?
A1: It supports safe digital input signals with compatibility for 24/48 VDC and NAMUR standards.
Q2: How many channels does the module have?
A2: The module supports 16 input channels, divided into two groups of 8.
Q3: What is the voltage rating for this module?
A3: The maximum voltage rating is 50 VDC (OV category 3) or 150 VDC (OV category 2), with actual limits defined by the input module.
Q4: What type of DIN rail is required for mounting?
A4: It supports TS32 and TS35 × 7.5 mm DIN rails.
Q5: Is this module suitable for redundant systems?
A5: Yes, it is designed to work with a redundant pair of SDIL-1608 input modules.
Q6: What kind of fuses does the module use?
A6: It uses 250 mAT slow-acting fuses, size 5 × 20 mm.
Q7: What wire size can be connected to the terminals?
A7: It supports wires up to 2.5 mm² (AWG 14).
Q8: What certifications does the FS-TSDI-16UNI have?
A8: The module is certified by CE, TUV, UL, CSA, and FM.
