Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-TSRO-0824 |

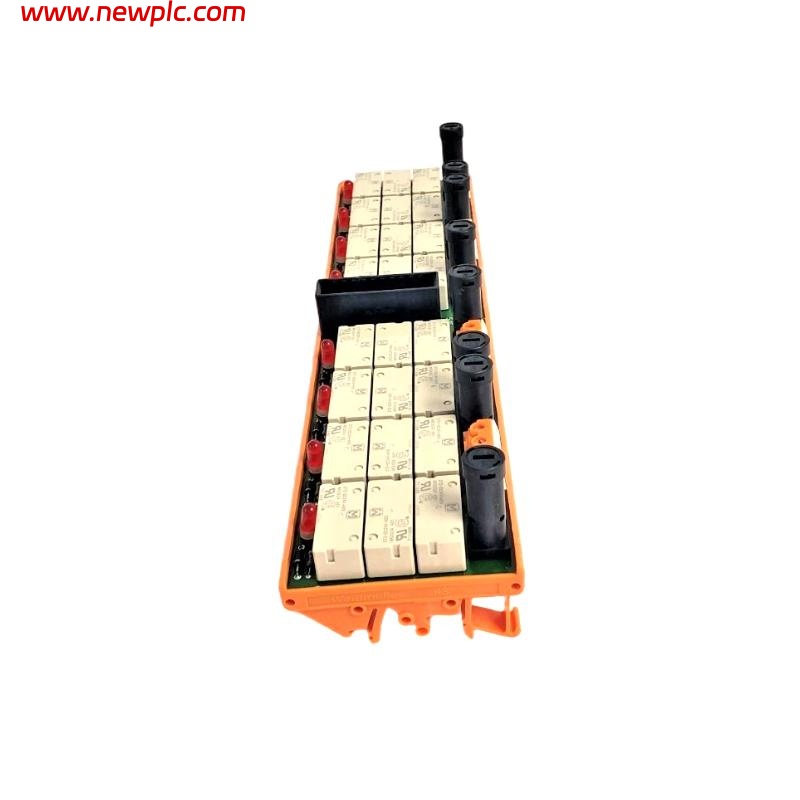

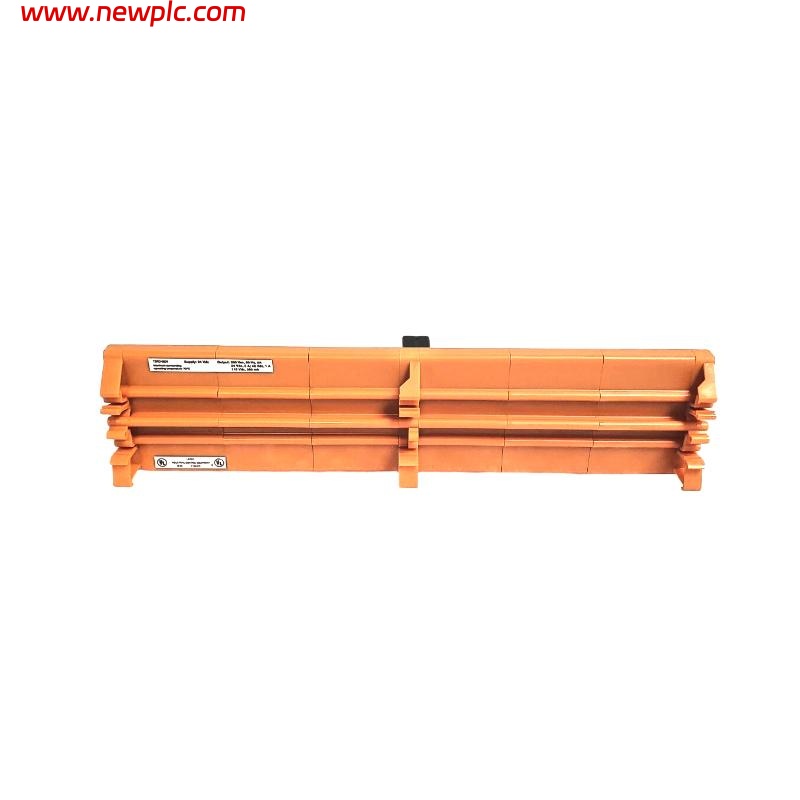

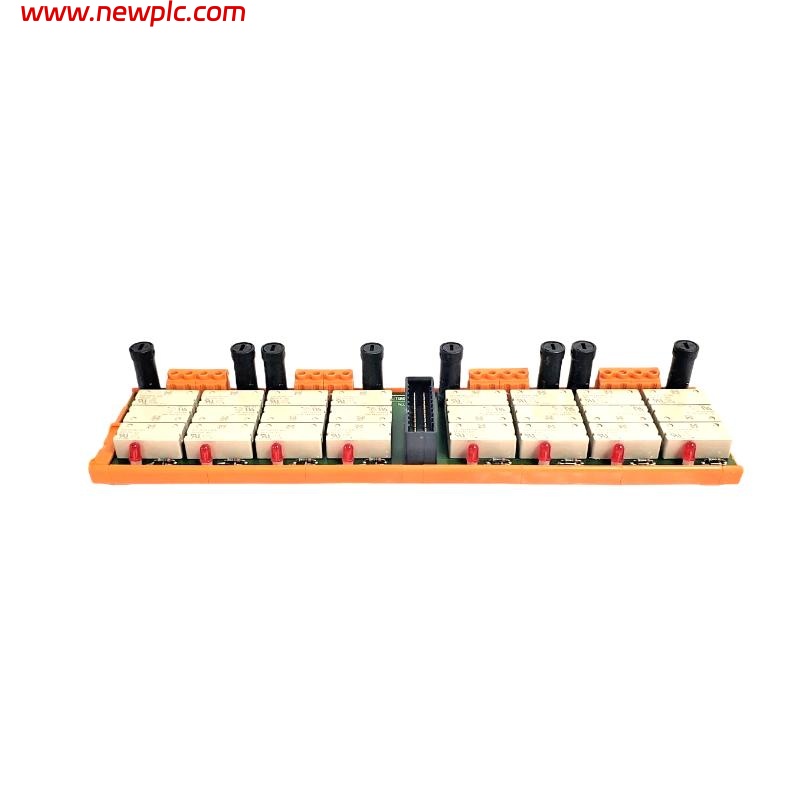

| Type | Digital Output Field Termination Assembly |
| Input Voltage | 24 VDC nominal (Max: 36 VDC, Relay pick-up: 19.2 VDC) |
| Input Current | Typically 40 mA at 24 VDC |
| Output Channels | 8 relay-based, potential-free safe outputs |
| Maximum Output Current | 5 A (fused) |
| Maximum Output Voltage | 250 VAC / 250 VDC |
| Maximum Switched Load | 1250 VA / 150 W |
| Safety Class | AK1-6 |
| Approvals | CE, UL, TÜV (pending) |
| Dimensions | 120 × 50 × 110 mm (L × W × H) |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to +85°C |
FAQ
FAQ
-
Q1: What types of relays are used in the FS-TSRO-0824?
A1: The FS-TSRO-0824 utilizes electromechanical relays with potential-free contacts suitable for SIL3-rated safety applications. -
Q2: Can this assembly handle inductive loads?
A2: Yes, the outputs are designed to safely switch inductive loads within the rated current and voltage limits. -
Q3: How is the unit mounted in the field?
A3: The assembly can be mounted on standard DIN rails or panels using the provided mounting brackets. -
Q4: What is the expected relay lifespan?
A4: Under normal operating conditions, each relay is rated for approximately 100,000 mechanical cycles and 50,000 electrical cycles. -
Q5: How does the FS-TSRO-0824 ensure signal isolation?
A5: Each relay channel is electrically isolated, providing complete separation between input control circuits and field outputs. -
Q6: What maintenance is required for long-term operation?
A6: Regular inspection for dust, corrosion, and mechanical integrity is recommended; relays may require replacement after extended service. -
Q7: Is the unit compatible with high-voltage DC circuits?
A7: Yes, it can switch up to 250 VDC within the rated load specifications. -
Q8: How does temperature affect performance?
A8: The assembly is rated for -40°C to +85°C, with relay operation stable across this range; extreme temperatures outside this range may reduce reliability.
