Technical Specifications
| Parameter | Specification |
|---|---|

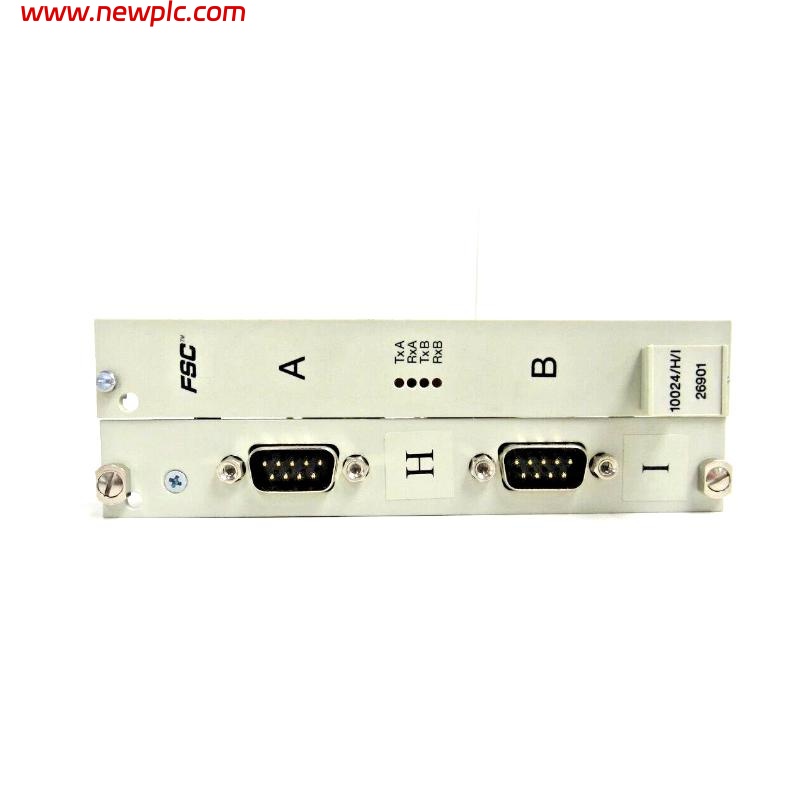

| Model | FSC 10024/H/I |
| Module Type | Communication Module |
| Compatibility | Honeywell control systems and field devices |
| Communication Protocol | Fieldbus (HART, Modbus) |
| Input Voltage | 24 V DC ± 20% |
| Power Consumption | 4 W (max) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 40 mm × 130 mm × 160 mm |
| Weight | 0.5 kg |
| Mounting Type | DIN Rail Mountable |
| Housing Material | Polycarbonate |
| IP Rating | IP20 |
FAQ
FAQ
Q1: What is the supported communication protocol for the FSC 10024/H/I Communication Module?
A1: The module supports Fieldbus communication protocols, including HART and Modbus.
Q2: What is the power supply requirement for the FSC 10024/H/I Communication Module?
A2: The module operates on a 24 V DC input with a tolerance of ± 20%.
Q3: Can the FSC 10024/H/I Communication Module be used in extreme temperatures?
A3: Yes, it can operate in temperatures ranging from -20°C to +60°C and can be stored between -40°C and +85°C.
Q4: What is the maximum power consumption of the FSC 10024/H/I Communication Module?
A4: The maximum power consumption is 4 watts.
Q5: What are the physical dimensions of the FSC 10024/H/I Communication Module?
A5: The module measures 40 mm in width, 130 mm in height, and 160 mm in depth.
Q6: How is the FSC 10024/H/I Communication Module mounted?
A6: The module is designed for DIN rail mounting, a standard industrial mounting system.
Q7: What is the weight of the FSC 10024/H/I Communication Module?
A7: The module weighs approximately 0.5 kg.
Q8: What material is used for the housing of the FSC 10024/H/I Communication Module?
A8: The module’s housing is made of durable polycarbonate material.
