Technical Specifications
| Item | Specification |
|---|---|

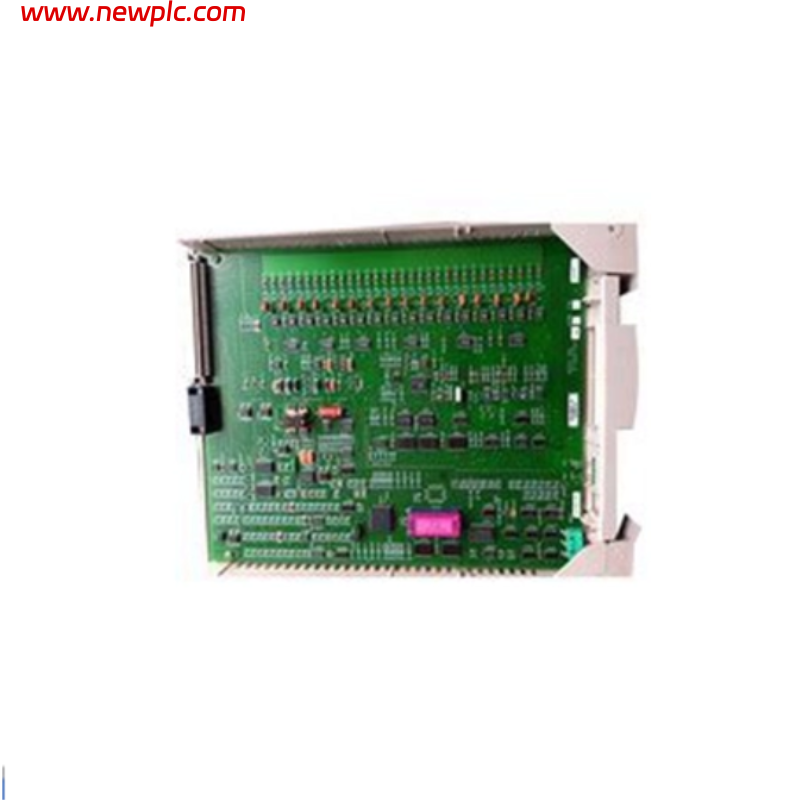

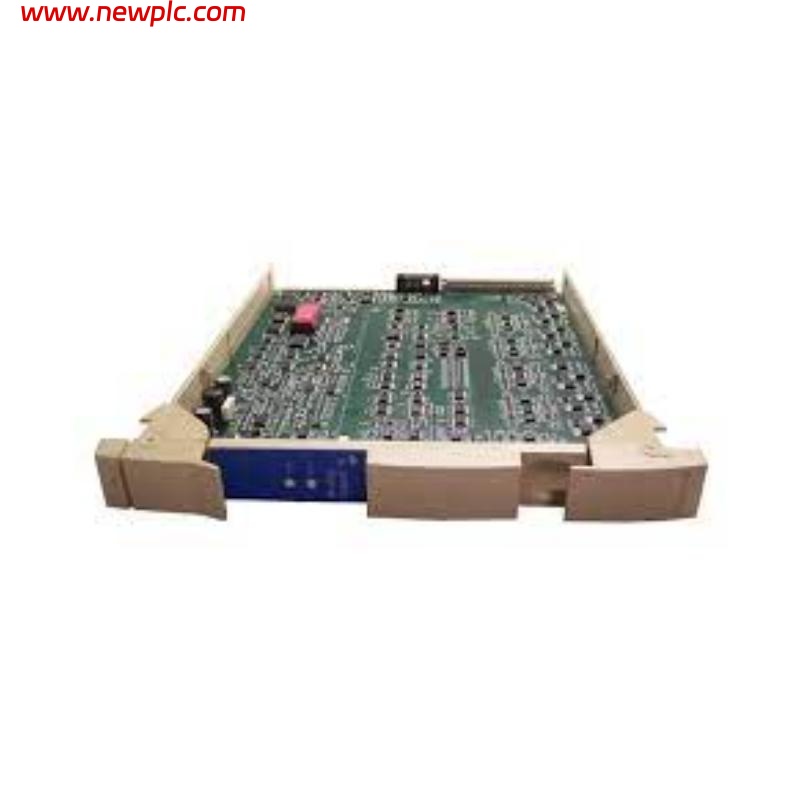

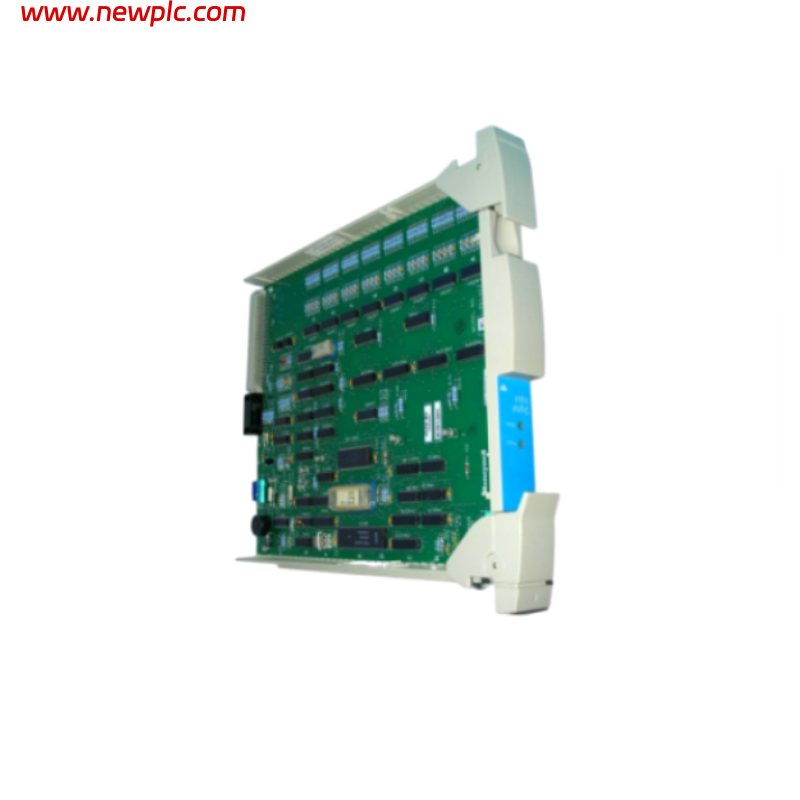

| Product Name | Honeywell MC-PDIX02 51304485-150 Digital Input Module |
| Module Type | Digital Input Module |
| Input Type | DC Digital Input |
| Number of Channels | 16 channels |
| Input Voltage | 24 V DC |
| Response Time | ≤ 5 ms |
| Isolation | Optically isolated |
| Power Supply | 24 V DC |
| Power Consumption | 3 W |
| Operating Temp. | 0 ~ +55 ℃ |
| Storage Temp. | -20 ~ +70 ℃ |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Dimensions | 213 x 200 x 20 mm |
| Weight | 0.662 kg |
| Protection | Overcurrent, short-circuit protection |
FAQ
FAQ
Q1: What is the main application of the MC-PDIX02 module?
A1: It is used to receive digital input signals and transmit them to Honeywell control systems.
Q2: How many input channels does it support?
A2: Supports 16 digital input channels.
Q3: What is the input voltage range?
A3: 24 V DC.
Q4: What is the response time?
A4: ≤ 5 ms.
Q5: What is the required power supply?
A5: 24 V DC.
Q6: What is the power consumption?
A6: Approximately 3 W.
Q7: What are the module dimensions and weight?
A7: Dimensions are 213 x 200 x 20 mm, weight 0.662 kg.
Q8: Does it have protection functions?
A8: Yes, including overcurrent and short-circuit protection.
