Technical Specifications
| Parameter | Description |
|---|---|

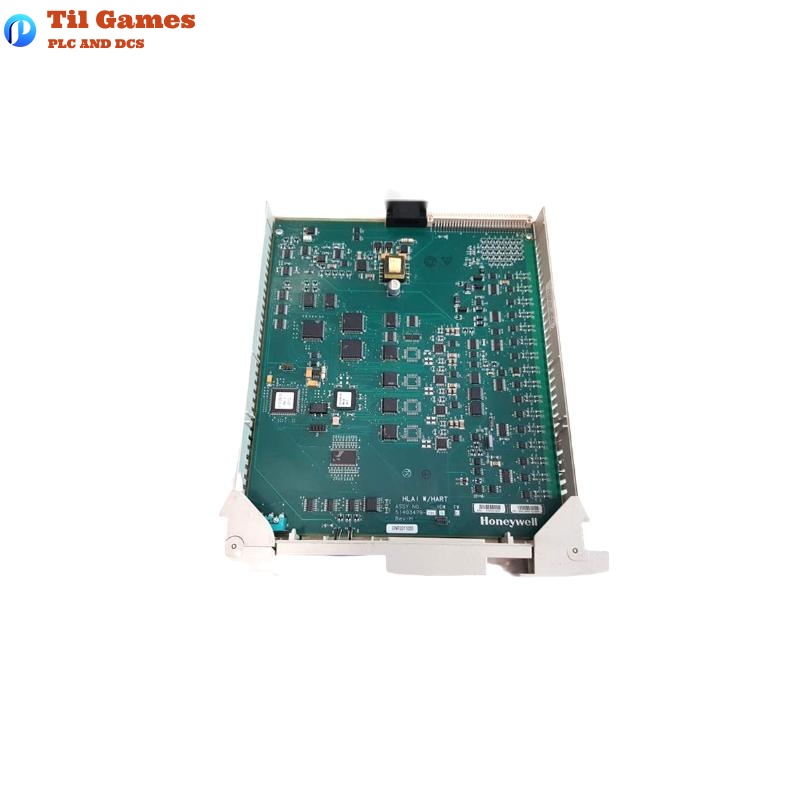

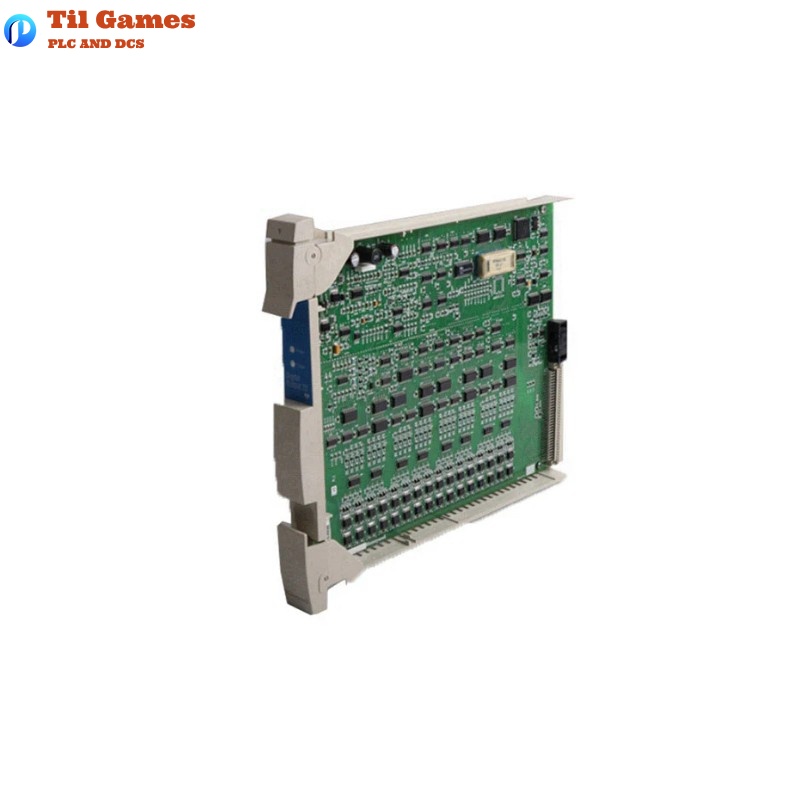

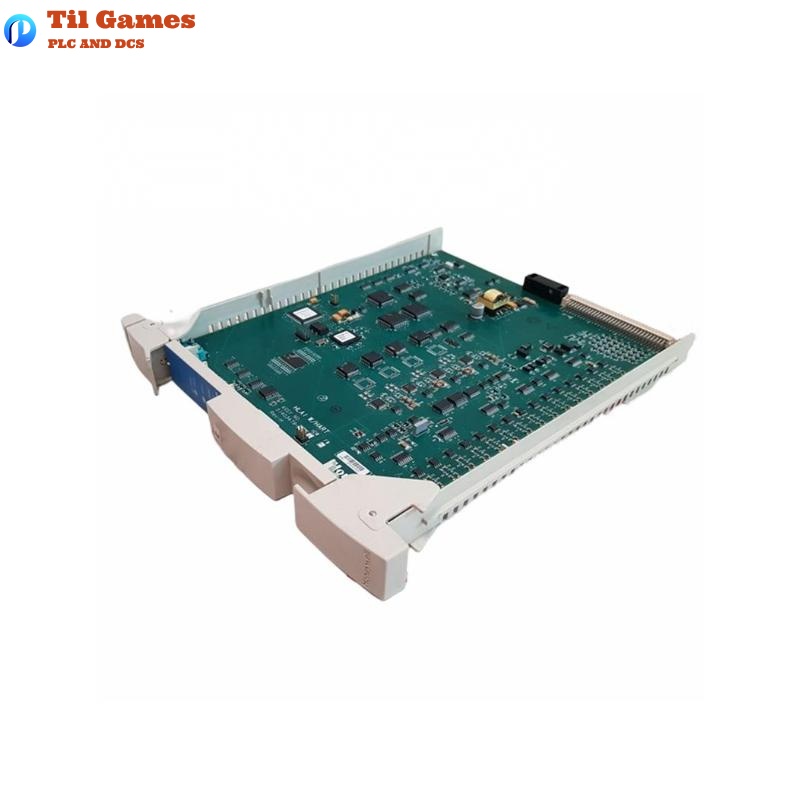

| Model | MC-PHAI01 |
| Part Number | 51403479-150 |
| Function | High-Level Analog Input Module |
| Number of Channels | 8 differential channels |
| Input Type | 4–20 mA |
| Input Range | 0–20 mA, 4–20 mA (configurable) |
| Accuracy | ±0.05% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-bus isolated |
| Power Supply | Supplied by system backplane |
| Temperature Range | 0°C to 60°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 120 × 45 × 110 mm |
| Weight | 0.35 kg |
| Mounting | DIN rail mounting |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input signal type supported by MC-PHAI01?
A1: It supports high-level analog 4–20 mA signals.
Q2: How many input channels does the module provide?
A2: The module provides 8 differential input channels.
Q3: Is the module channel-to-channel isolated?
A3: Yes, each channel is isolated from the others and from the system bus.
Q4: What resolution does the MC-PHAI01 offer?
A4: It provides 16-bit resolution for precise signal conversion.
Q5: What is the physical size of the MC-PHAI01?
A5: The dimensions are 120 mm × 45 mm × 110 mm.
Q6: What is the weight of the MC-PHAI01?
A6: The module weighs approximately 0.35 kg.
Q7: What environment conditions are suitable for this module?
A7: The module operates within 0°C to 60°C and 5–95% RH non-condensing.
Q8: How is the module powered?
A8: It is powered through the system backplane, not requiring external power input.
