Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MC-TAMT04 51305890-175 |

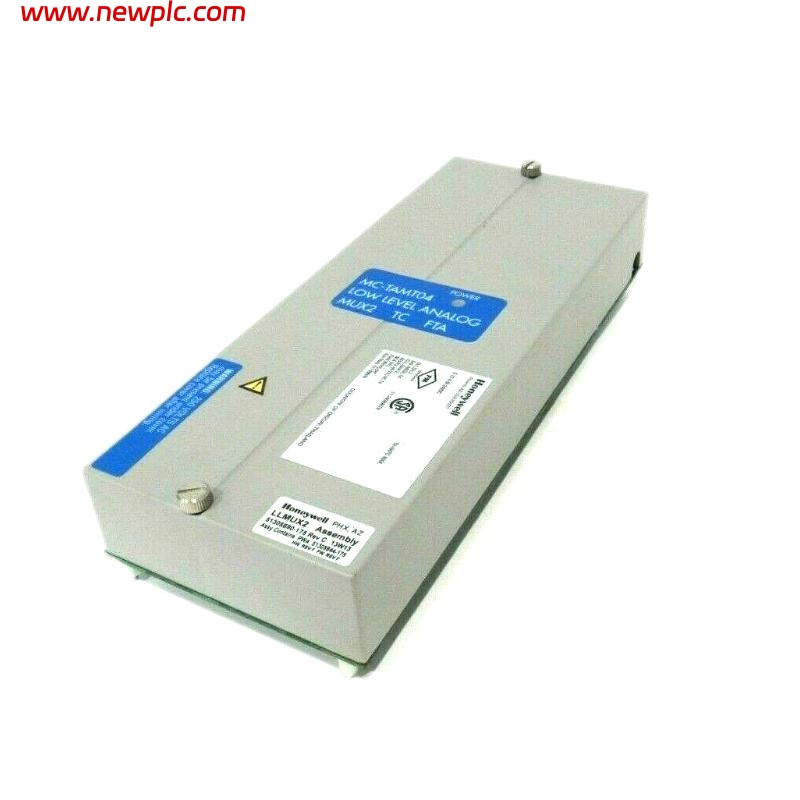

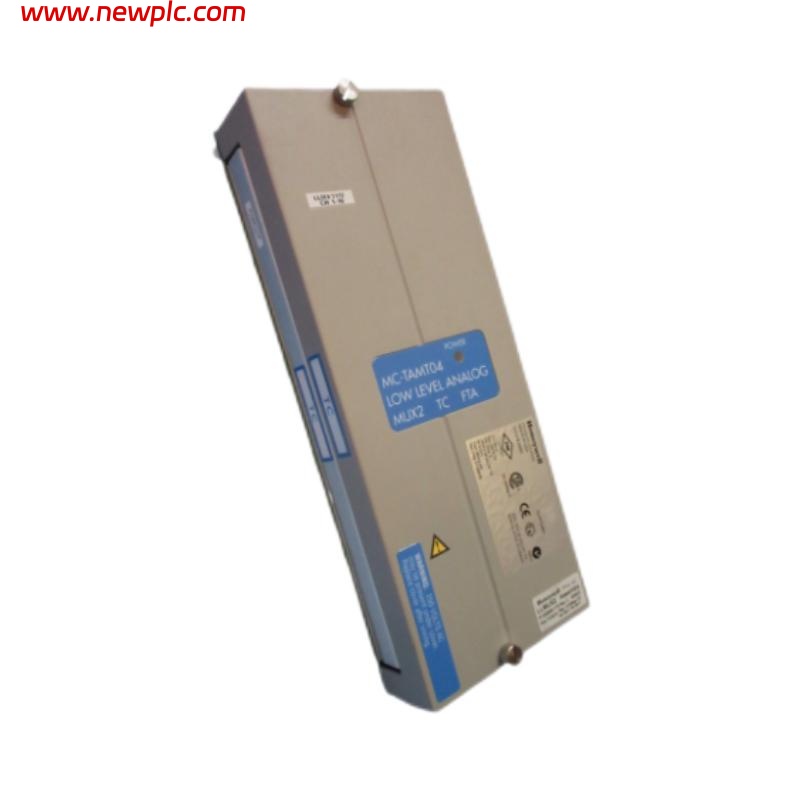

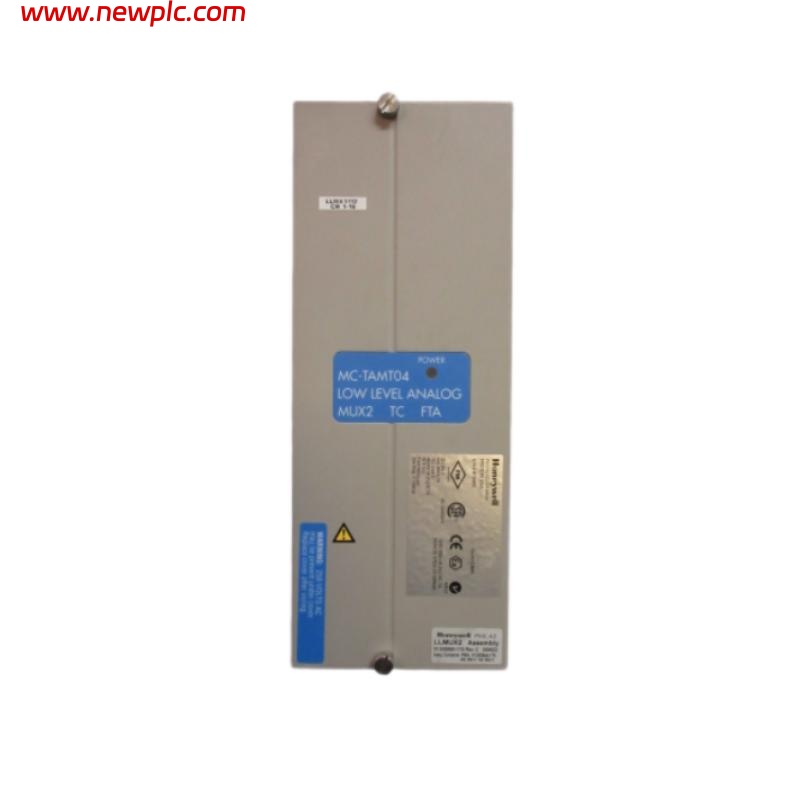

| Type | Low-Level Analog Multiplexer TC FTA |
| Input Channels | 16 single-ended or 8 differential |
| Output Channels | 1 or 2 analog outputs |
| Signal Type | Low-level analog voltage/current |
| Bandwidth | DC to 50 kHz |
| Resolution | 16-bit |
| Isolation | Channel-to-channel isolation |
| Operating Temperature | -20°C to 70°C |
| Power Supply | 24 V DC ±10% |
| Mounting Type | DIN rail or panel mount |
| Dimensions | 305 x 119 x 70 mm |
| Weight | 0.85 kg |
| Certifications | CE, UL |
FAQ
FAQ
Q1: How many input channels does the MC-TAMT04 support?
A1: 16 single-ended or 8 differential channels.
Q2: What type of outputs are available?
A2: 1 or 2 analog outputs.
Q3: What is the maximum signal bandwidth?
A3: DC to 50 kHz.
Q4: Does the module provide channel-to-channel isolation?
A4: Yes.
Q5: What is the resolution of the outputs?
A5: 16-bit.
Q6: What is the operating temperature range?
A6: -20°C to 70°C.
Q7: What is the required power supply?
A7: 24 V DC ±10%.
Q8: What certifications does this module have?
A8: CE and UL certified.
