Technical Specifications
| Parameter | Description |
|---|---|

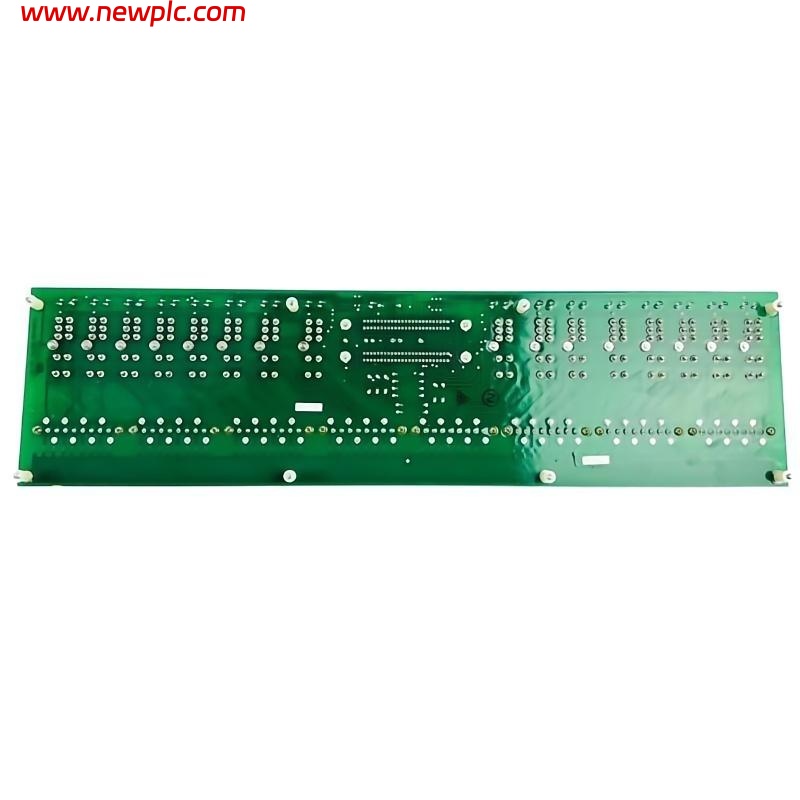

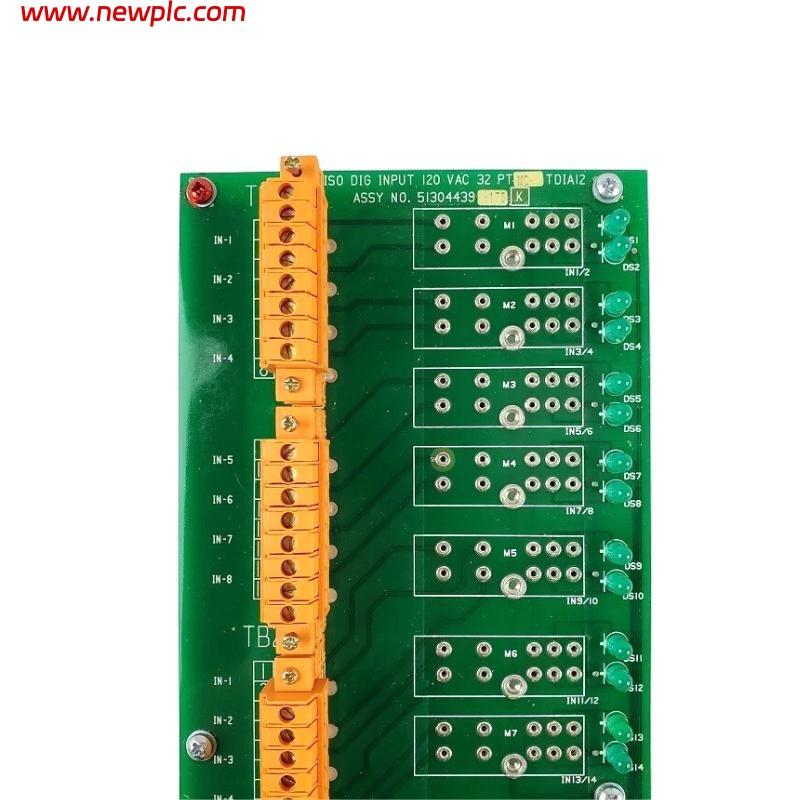

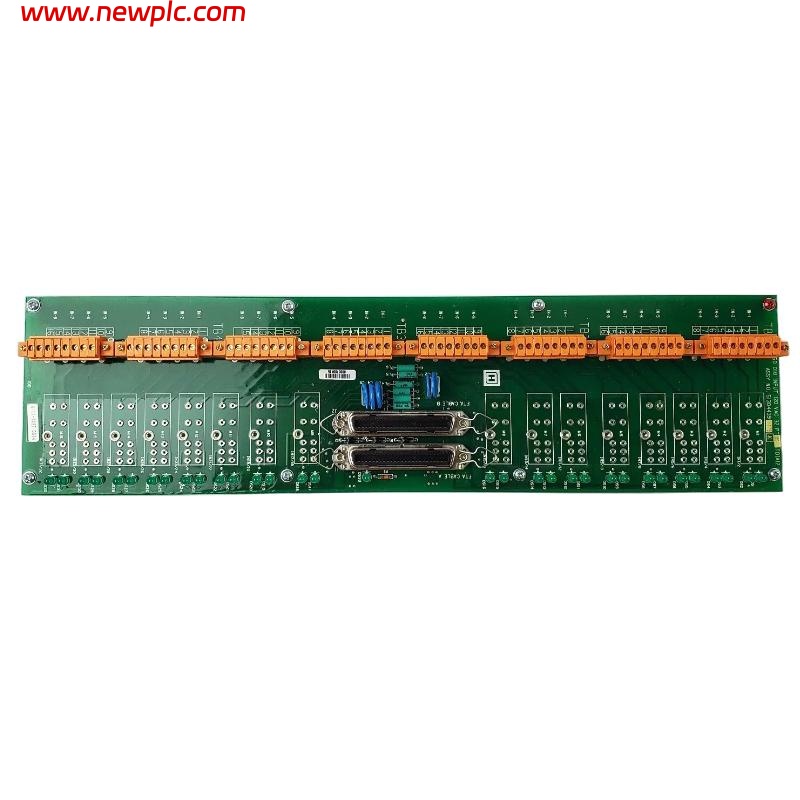

| Product Name | Honeywell MC-TDIA12 51304439-175 Isolated Digital Input Module |
| Module Type | Isolated digital input module |
| Function | Provides isolated digital input channels for monitoring discrete signals from field devices |
| Number of Channels | 12 channels |
| Isolation | Electrical isolation between input channels and control system to prevent interference |
| Input Voltage Range | Compatible with standard industrial digital input voltages |
| Mounting | DIN-rail or panel mounting compatible |
| Dimensions | 230 × 123 × 20 mm |
| Weight | 0.862 kg |
| Compatibility | Honeywell TDC, Experion, and other compatible process control systems |
FAQ
FAQ
Q1: What is the primary purpose of the MC-TDIA12 module?
A1: The MC-TDIA12 module is designed to monitor discrete field signals, such as switches and contact closures, and transmit them safely to Honeywell control systems with electrical isolation for protection and signal integrity.
Q2: How many input channels does the module provide?
A2: The module provides 12 independent digital input channels, allowing multiple discrete field devices to be monitored simultaneously.
Q3: Does the module provide electrical isolation between channels?
A3: Yes, each channel is electrically isolated from the control system and other channels to prevent interference, ensure safety, and protect sensitive equipment.
Q4: What type of digital signals can the module accept?
A4: It accepts standard industrial digital signals from devices such as switches, push buttons, and relay contacts.
Q5: Can multiple MC-TDIA12 modules be installed in the same control system?
A5: Yes, multiple modules can be installed to expand the system’s digital input capacity and monitor a larger number of field devices efficiently.
Q6: What mounting options are available for the module?
A6: The module can be mounted on a standard DIN rail or directly onto a panel, providing flexible integration into various control cabinet layouts.
Q7: Does the module require configuration after installation?
A7: Minimal configuration may be required within the control system to map input channels and define signal parameters, but the module is ready for wiring immediately.
Q8: How does this module improve system reliability?
A8: By providing isolated input channels, the MC-TDIA12 protects the control system from electrical noise and faults, ensures accurate detection of digital signals, and maintains operational reliability in industrial environments.
