Technical Specifications
| Item | Description |
|---|---|

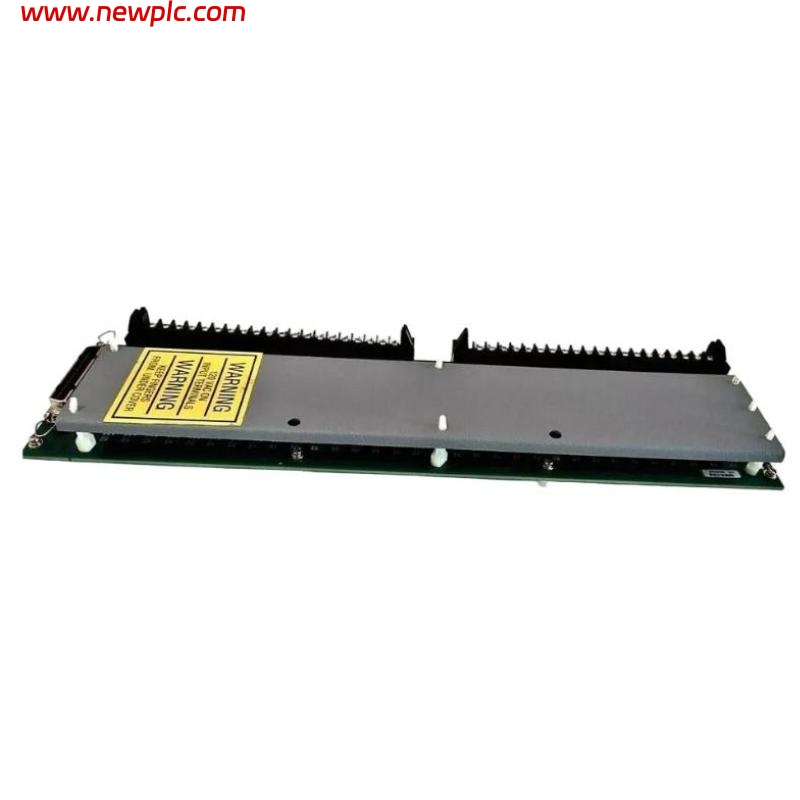

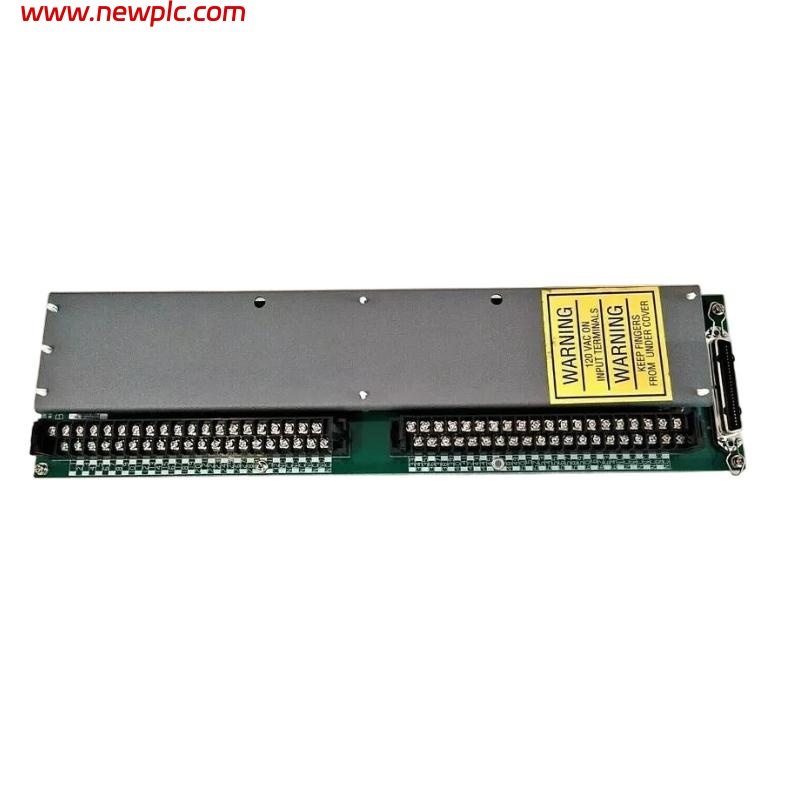

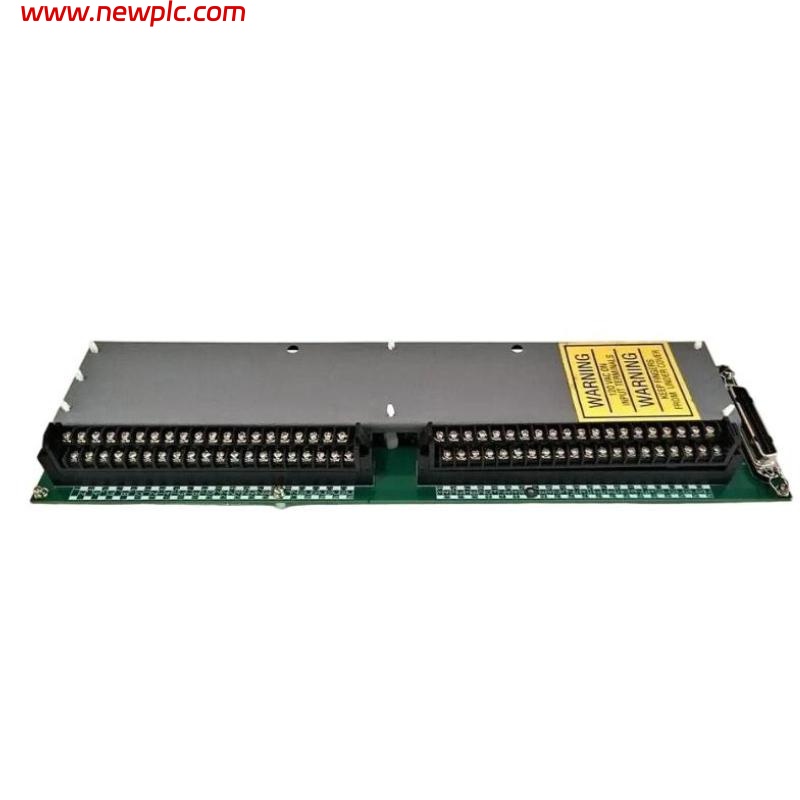

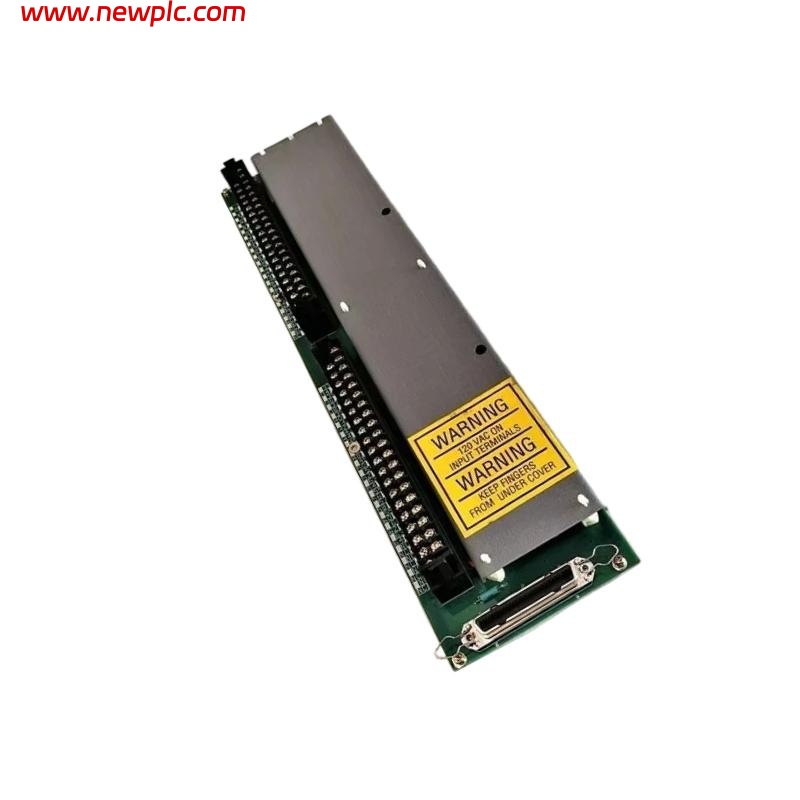

| Product Model | Honeywell MC-TDIA72 51303930-150 |
| Product Type | Isolated Digital Input Module |
| Manufacturer | Honeywell |
| Function | Receives and isolates digital input signals from field devices, transmitting them to the control system safely |
| Number of Channels | 16 channels |
| Input Type | DC digital input |
| Input Voltage | 24 V DC nominal |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Response Time | ≤ 5 ms typical |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 2 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN-rail or rack-mountable |
| Compliance | CE, UL |
| Dimensions | 252 × 110 × 45 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the main function of the Honeywell MC-TDIA72 module?
It receives digital input signals and provides channel-to-channel and channel-to-system isolation before transmitting them to the control system.
Q2: How many input channels does it have?
16 channels.
Q3: What is the input voltage for the module?
24 V DC nominal.
Q4: Is there isolation between channels?
Yes, it provides both channel-to-channel and channel-to-system isolation.
Q5: What is the response time of the module?
≤ 5 ms typical.
Q6: What is the operating temperature range?
0 °C to +55 °C.
Q7: How is the module mounted?
It can be mounted on a DIN rail or in a rack.
Q8: Does the module comply with safety standards?
Yes, it meets CE and UL standards.
