Technical Specifications
| Parameter | Specification |
|---|---|

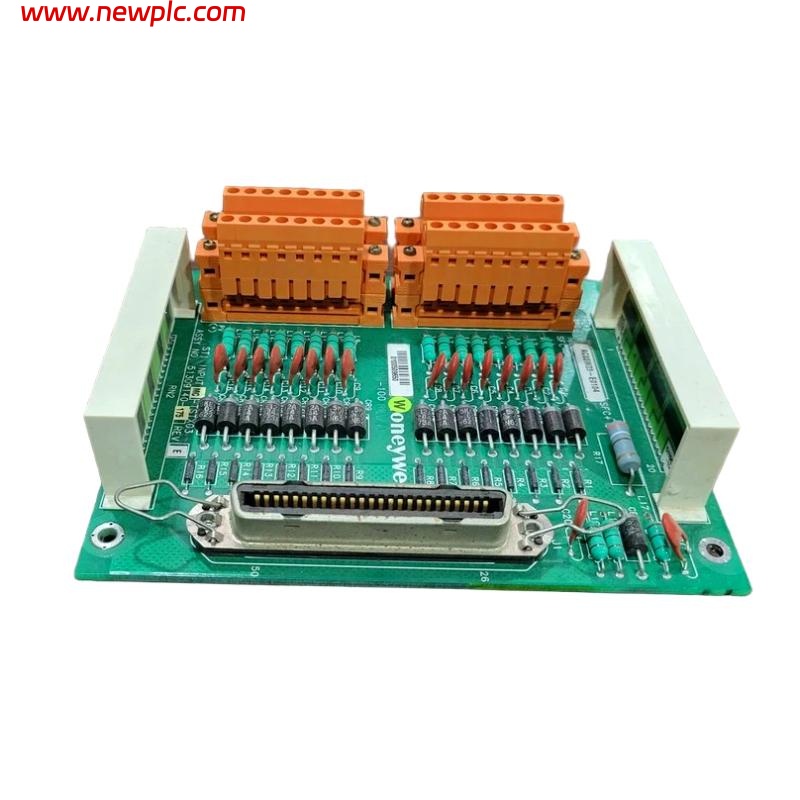

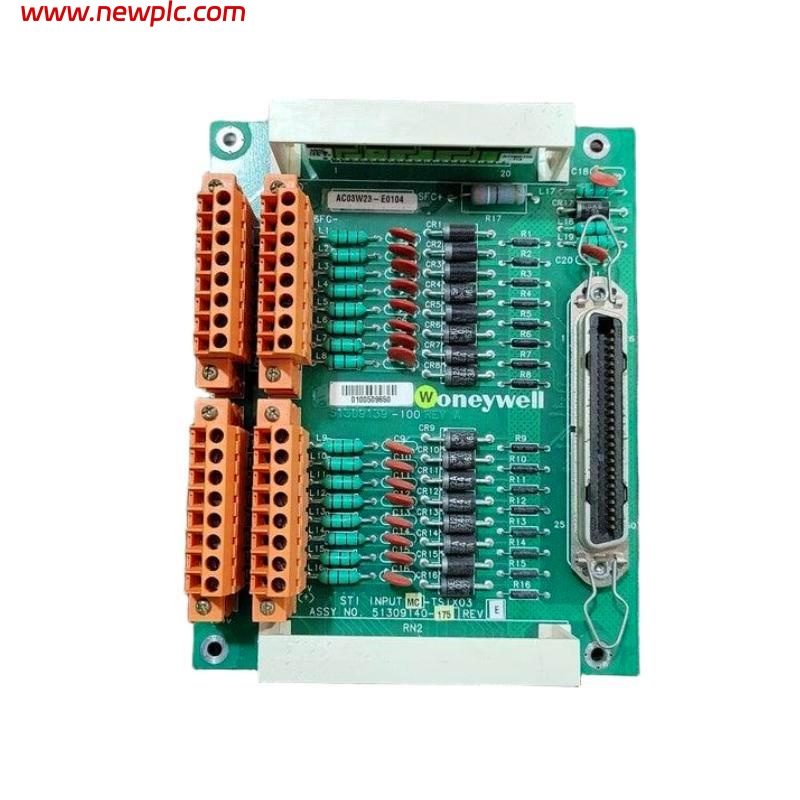

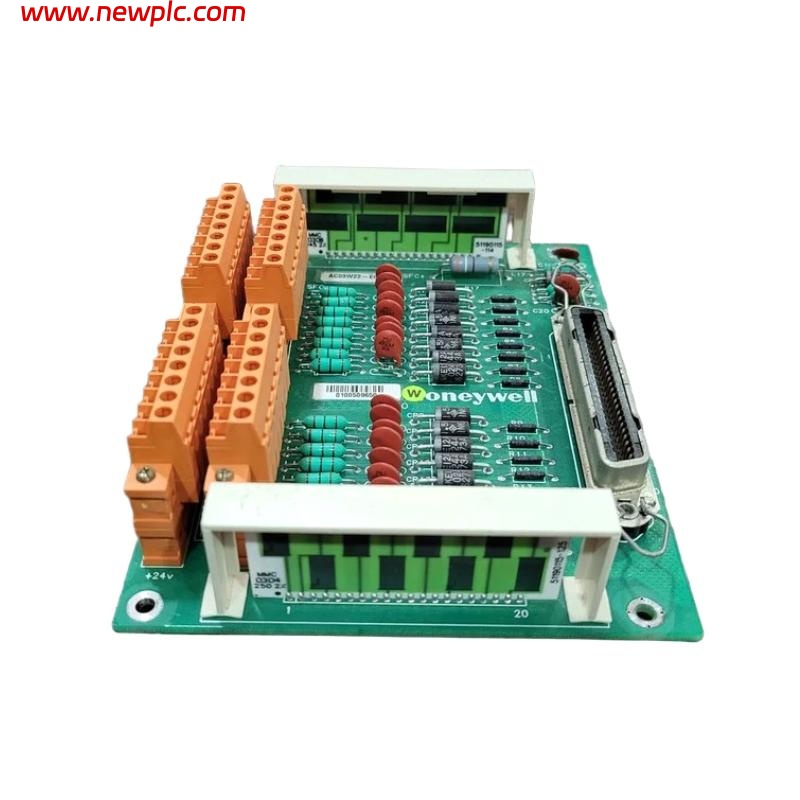

| Model | MC-TSTX03 51309140-175 |
| Type | Smart Transmitter Interface Processor |
| Processor Type | 32-bit Microprocessor |
| Memory Capacity | 512 KB RAM / 2 MB Flash |
| Power Supply | 5 V DC ±5% |
| Power Consumption | Max 8 W |
| Input/Output | Supports 4-20 mA HART signal interfaces |
| Response Time | ≤50 ms |
| Operating Temperature | 0°C ~ 55°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions | 240 × 100 × 25 mm |
| Weight | 0.3 kg |
| Compatible Systems | Honeywell Experion PKS / TDC 3000 systems |
FAQ
FAQ
Q1: Which systems does MC-TSTX03 support?
Compatible with Honeywell Experion PKS and TDC 3000 systems.
Q2: What is the operating temperature range?
Operating temperature: 0°C to 55°C; Storage temperature: -20°C to 70°C.
Q3: What is the power consumption?
Maximum power consumption is 8 W.
Q4: What are the dimensions and weight of the unit?
Dimensions: 240 × 100 × 25 mm; Weight: 0.3 kg.
Q5: What input signal types are supported?
Supports 4-20 mA HART signal interfaces for connecting smart transmitters.
Q6: Does it support hot-swapping?
No, it must be replaced when the system is powered down.
Q7: What is the protection class of the module?
IP20, suitable for indoor installation environments.
Q8: What should be considered during installation?
Ensure proper connection of interfaces and avoid static damage and high humidity.
