Technical Specifications
| Item | Specification |
|---|---|

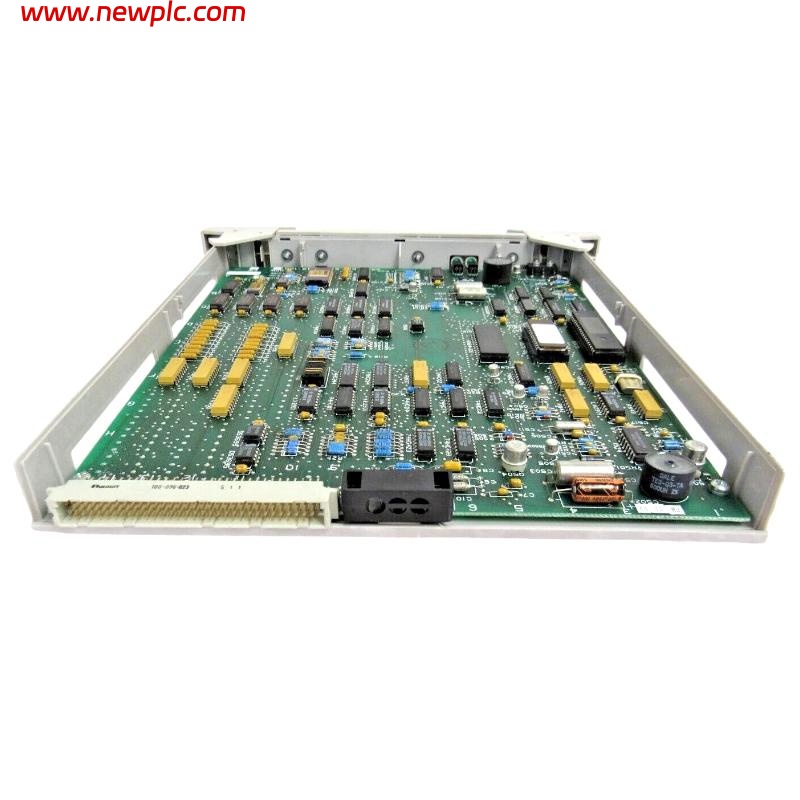

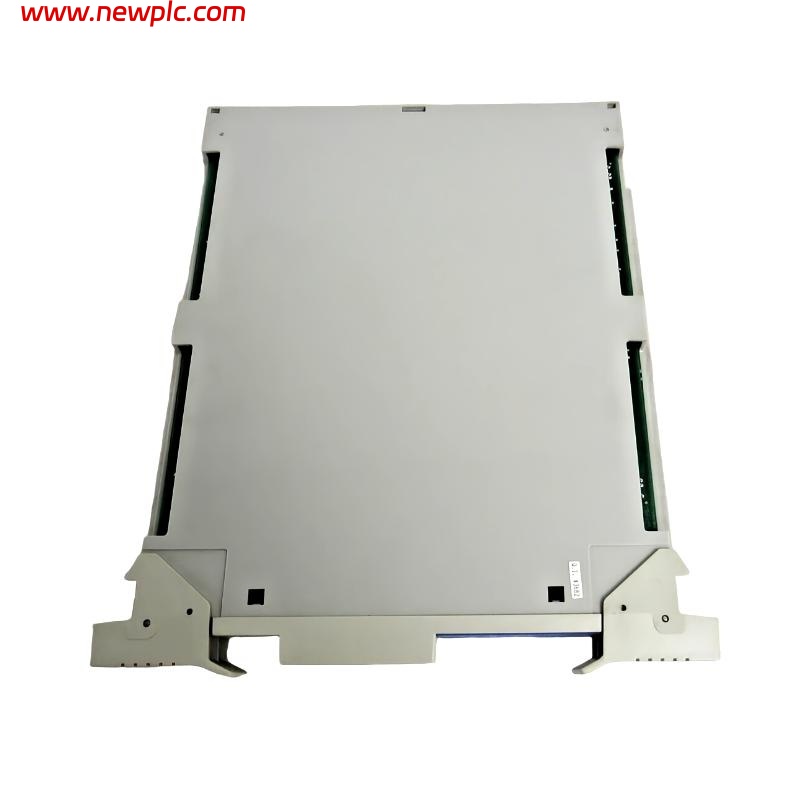

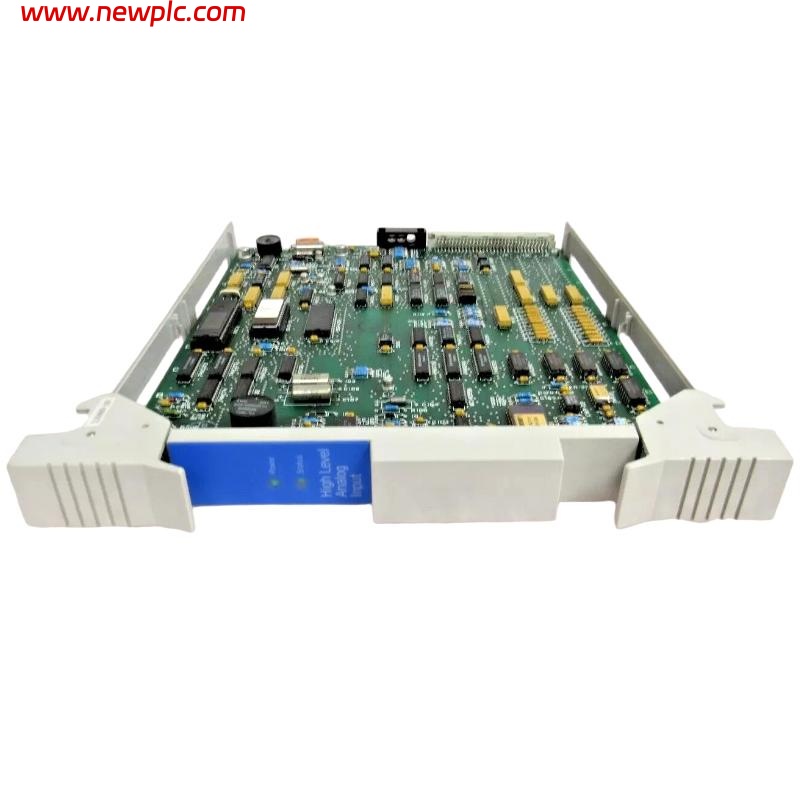

| Product Model | Honeywell MU-PAIH02 51304489-100 |
| Product Type | High-level Analog Input Module |
| Function | Receives high-level analog signals for process monitoring and control |
| Input Channels | 16 channels |
| Input Signal Type | High-level analog signals (0~10 V / 4~20 mA selectable) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1 % of reading ±0.05 V |
| Scan Period | 100 ms |
| Communication Interface | System bus interface |
| Power Supply | Powered via system rack |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | -20 °C ~ +70 °C |
| Dimensions | 250 x 30 x 175 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the main function of the MU-PAIH02 module?
A: It acquires high-level analog signals for process monitoring and control.
Q2: How many input channels does the module support?
A: It supports 16 input channels.
Q3: What types of input signals are supported?
A: High-level analog signals, such as 0~10 V or 4~20 mA.
Q4: What is the resolution of the module?
A: 16-bit A/D conversion ensures high-precision measurement.
Q5: What is the accuracy of the module?
A: ±0.1 % of reading ±0.05 V.
Q6: How is the module powered?
A: Powered via the system rack without requiring an external supply.
Q7: What is the operating temperature range?
A: 0 °C to +60 °C.
Q8: What is the weight of the module?
A: Approximatel 1.1 kg.
