Technical Specifications
| Item | Specification |
|---|---|
| Model | MU-TDOR22 |
| Honeywell Part Number | 51304427-100 |

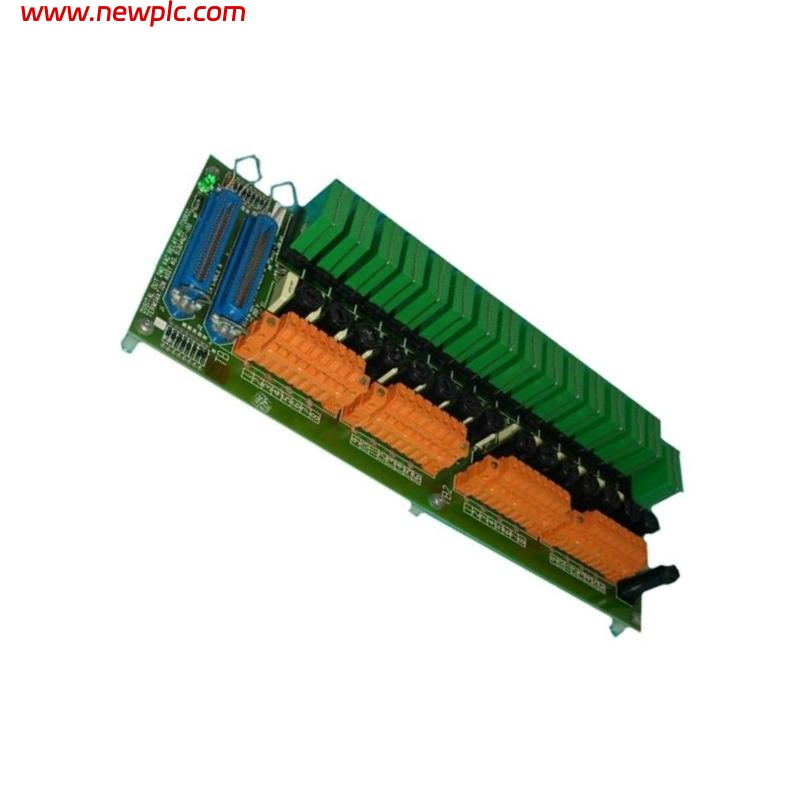

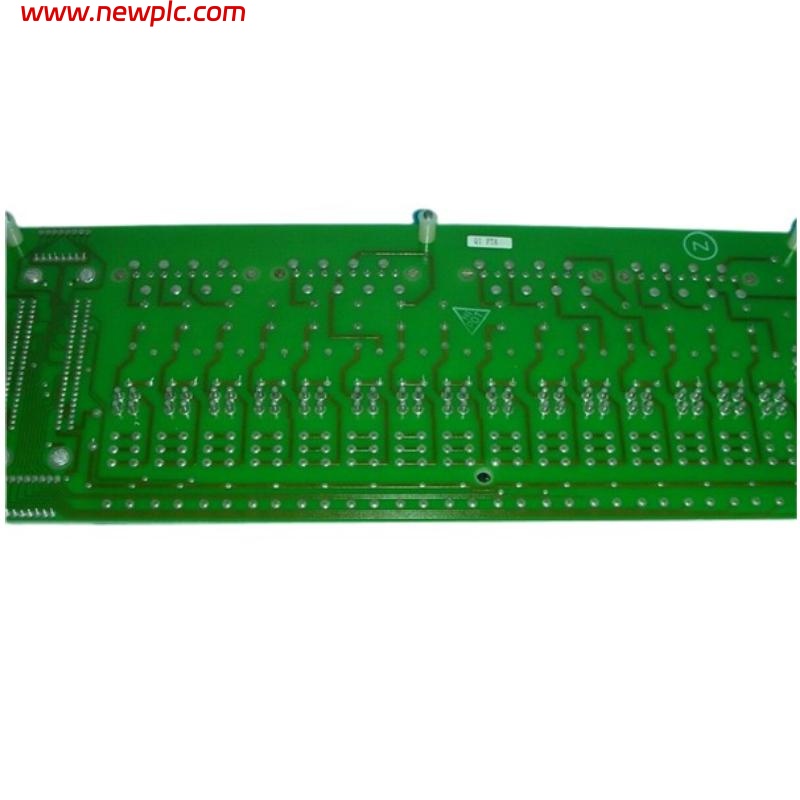

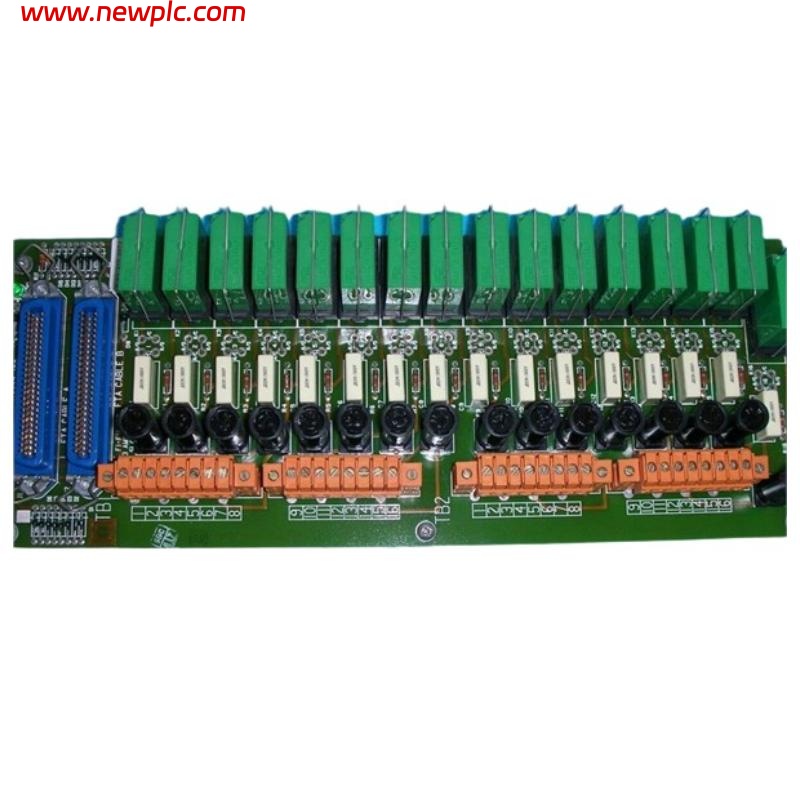

| Type | Digital Relay Output Field Termination Assembly |
| Channels | 22 channels |
| Output Type | Relay Contact Output |
| Rated Voltage | 24 VDC / 120 VAC |
| Rated Current | 2 A |
| Response Time | ≤ 10 ms |
| Isolation Voltage | 500 V AC |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions | 280 × 120 × 50 mm |
| Weight | 2.0 kg |
FAQ
FAQ
Q1: What types of outputs does this module support?
It supports relay contact digital outputs.
Q2: What is the operating temperature range of the module?
The operating temperature range is -20°C to 70°C.
Q3: How many channels does the MU-TDOR22 have?
It has 22 relay output channels.
Q4: What are the dimensions of the module?
Dimensions are 280 × 120 × 50 mm.
Q5: What is the weight of the module?
The weight is 2.0 kg.
Q6: What is the rated voltage and current of the module?
Rated voltage is 24 VDC / 120 VAC, rated current is 2 A.
Q7: What kind of environment is the module suitable for?
It has a protection class of IP20, suitable for standard indoor industrial environments.
Q8: What is the response time of the module?
The response time is ≤ 10 ms.
