Technical Specifications
| Item | Specification |
|---|---|

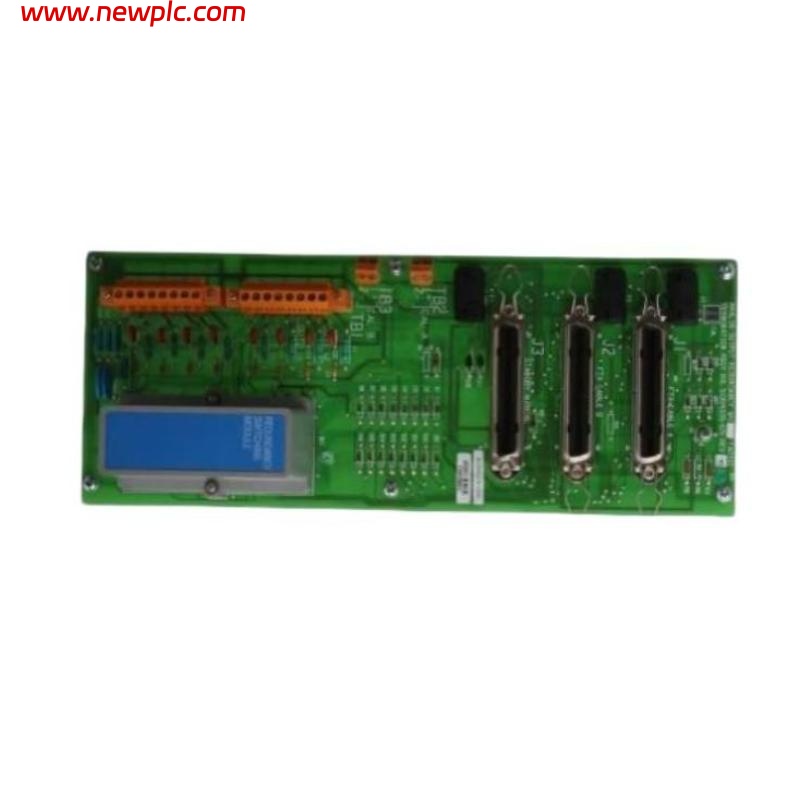

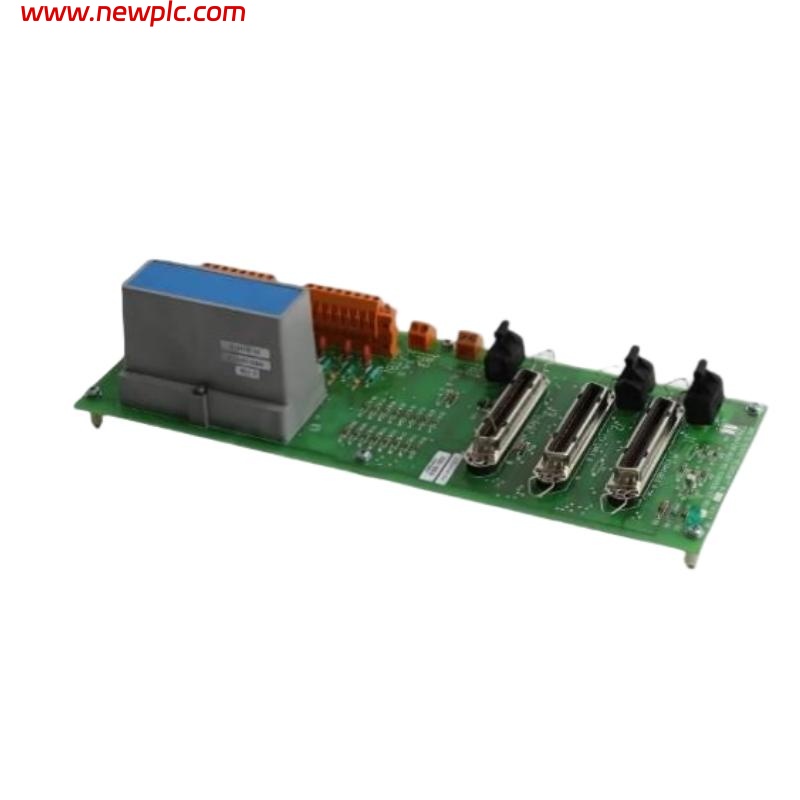

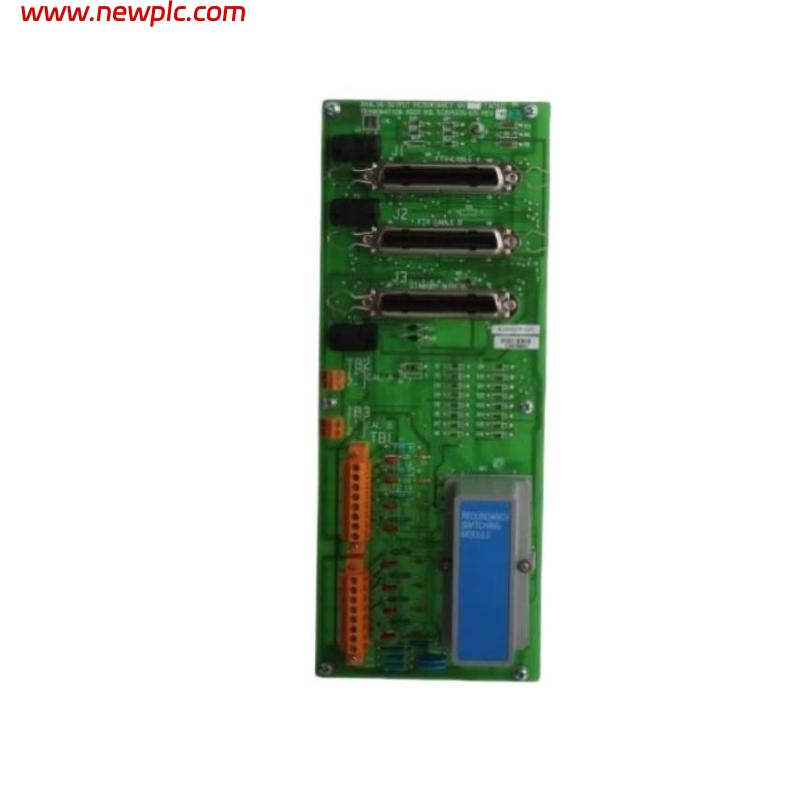

| Product Name | Honeywell MU-TDOY22 51204162-125 Isolated Digital Output Field Termination Assembly |
| Manufacturer | Honeywell |
| Module Type | Isolated Digital Output Field Termination Assembly |
| Function | Provides multiple isolated digital output signals for controlling actuators, valves, and other field devices |
| Number of Channels | 8 digital output channels |
| Output Voltage Range | 24 V DC |
| Output Type | Isolated dry contact output |
| Response Time | < 1 ms |
| Wiring Method | Terminal wiring (Field Termination) |
| Isolation | Electrical isolation between output channels and system logic |
| Power Supply | Powered through system or module backplane |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +70 °C |
| Humidity | 5% to 90% non-condensing |
| Mounting | DIN rail or panel mounting |
| Dimensions | 260 x 180 x 65 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the main function of the MU-TDOY22 module?
A1: It provides multiple isolated digital output signals to drive actuators, valves, and other field devices.
Q2: How many output channels does it provide?
A2: The module provides 8 independent digital output channels.
Q3: What is the supported output voltage range?
A3: The output voltage is 24 V DC.
Q4: What type of output does it provide?
A4: Isolated dry contact output, ensuring isolation from system logic.
Q5: What is the response time of the module?
A5: The response time is less than 1 millisecond.
Q6: What wiring method is used?
A6: Terminal wiring is used for easy field connection and maintenance.
Q7: What mounting options are supported?
A7: It can be mounted on a DIN rail or panel, suitable for control cabinets and field equipment.
Q8: In which industries is this module typically used?
A8: It is widely used in process automation, petrochemical, power, and water treatment industries.
