Technical Specifications
| Parameter | Specification |
|---|---|

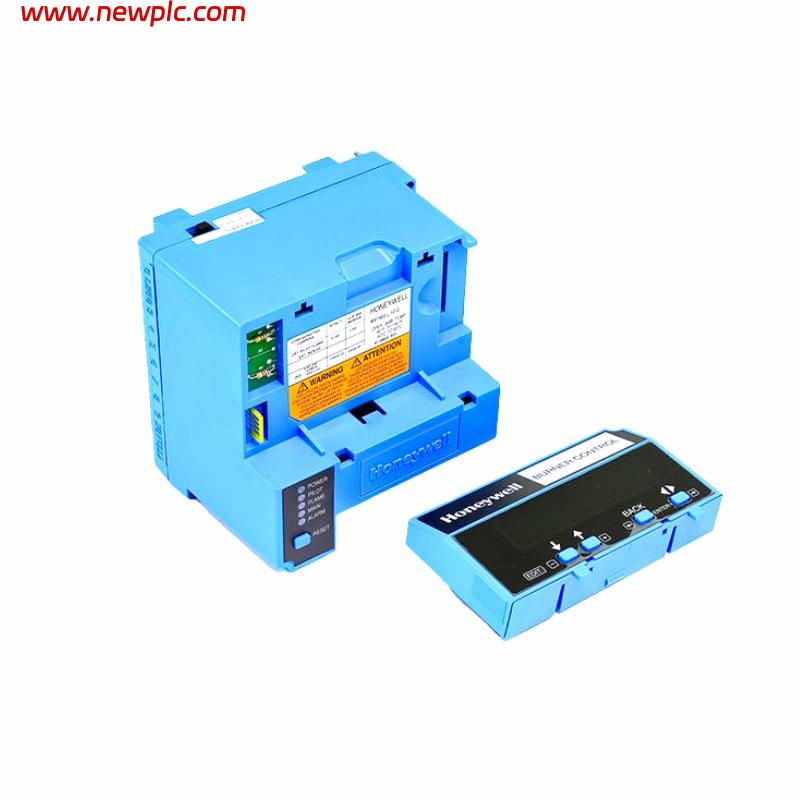

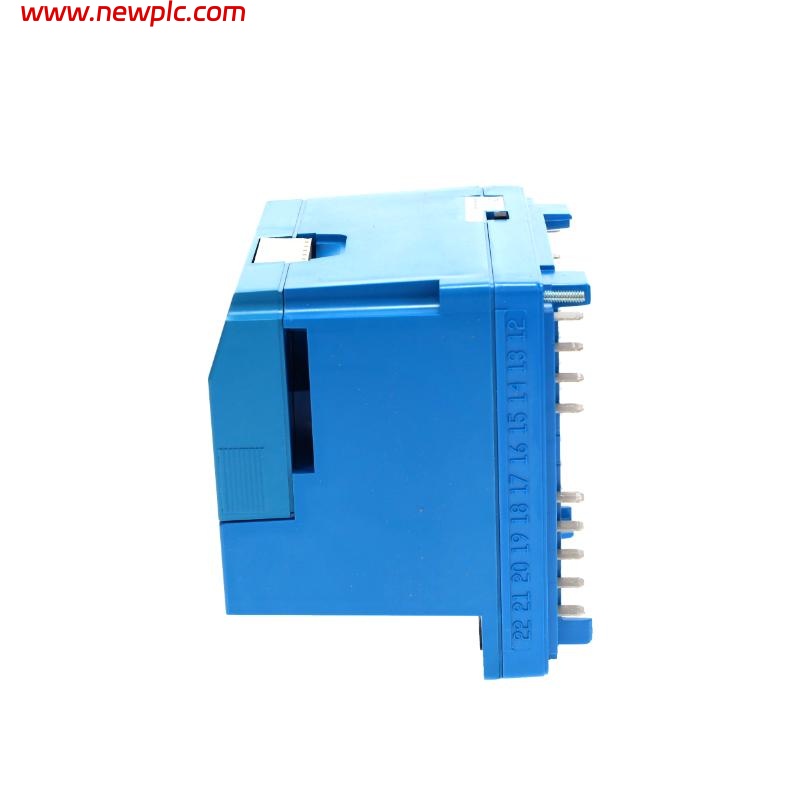

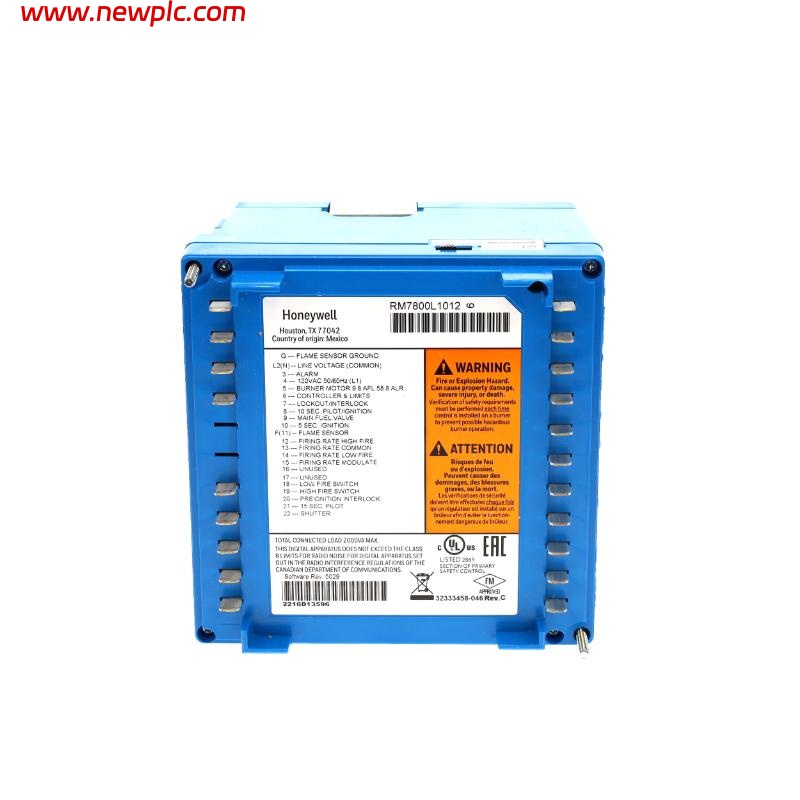

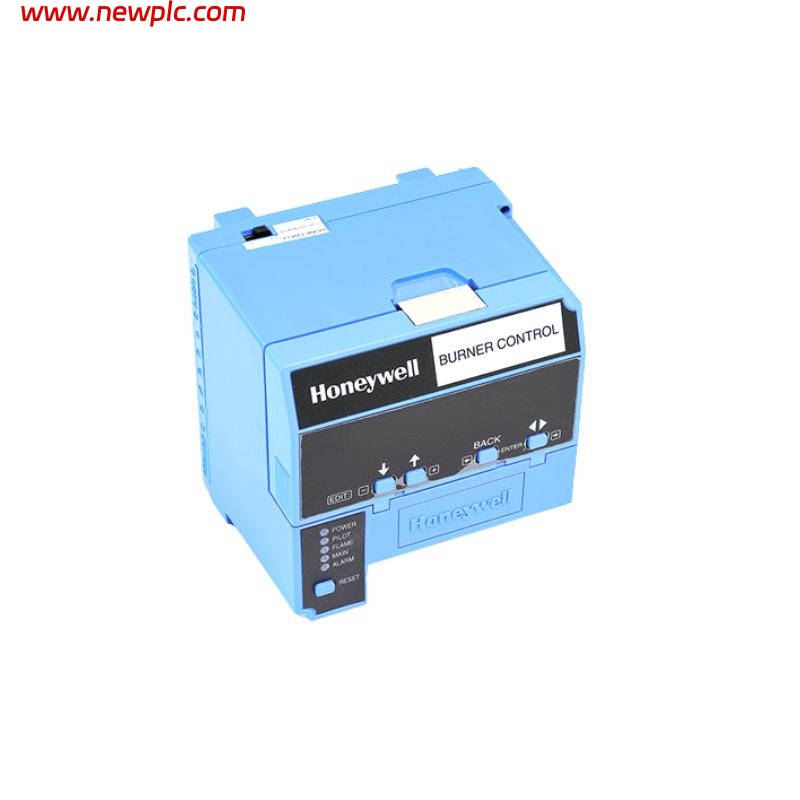

| Product Model | Honeywell RM7800L1012 |
| Product Series | 7800 SERIES |
| Function | Integrated burner control relay module |
| Application | Automatically fired gas, oil, or combination fuel single burner systems |
| Power Supply Voltage | 120 Vac (+10% / -15%), 50/60 Hz (±10%) |
| Power Consumption (Relay Module) | 10 W max |
| Power Consumption (Display) | 3 W max |
| Maximum Connected Load | 2000 VA |
| Ambient Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Humidity | 85% RH continuous, non-condensing |
| Vibration | 0.5G environment |
| Safety Level | SIL 3 Capable (with appropriate flame detection setup) |
| Communication Options | Modbus™ Module, Data ControlBus Module™, Remote Display |
| Compatible Display Module | S7800A Series |
| Flame Failure Response Time | 0.8 to 3.0 seconds (based on amplifier type) |
| Required Components | Flame Amplifier, Purge Timer Card, Subbase (Q7800A/B) |
| Mounting Type | Panel Mount (Q7800A) or Wall/Burner Mount (Q7800B) |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.83 kg (1 lb 13 oz) |
FAQ
FAQ
Q1: What type of burners is the RM7800L1012 suitable for?
A1: It is designed for single burner systems using gas, oil, or combination fuels that are automatically fired.
Q2: What is the maximum allowable power load the RM7800L1012 can handle?
A2: The maximum connected load is 2000 VA.
Q3: Does the RM7800L1012 support Modbus communication?
A3: Yes, it supports Modbus™ communication via an optional module (S7810M1003).
Q4: Can this burner control module be used in high-humidity environments?
A4: Yes, it can operate in environments with up to 85% relative humidity, non-condensing.
Q5: What is the flame failure response time range for this model?
A5: The flame failure response time ranges from 0.8 to 3.0 seconds, depending on the amplifier selected.
Q6: What are the mounting options available for the RM7800L1012?
A6: It can be mounted using either a Q7800A (panel mount) or Q7800B (wall/burner mount) subbase.
Q7: Is the RM7800L1012 compliant with safety standards?
A7: Yes, it is SIL 3 capable when configured properly and meets multiple agency approvals including UL, CSA, FM, and FCC.
Q8: Does it retain history and fault data after power loss?
A8: Yes, the RM7800L1012 features nonvolatile memory that preserves history files and status information during power interruptions.
