Technical Specifications
| Parameter | Specification |
|---|---|

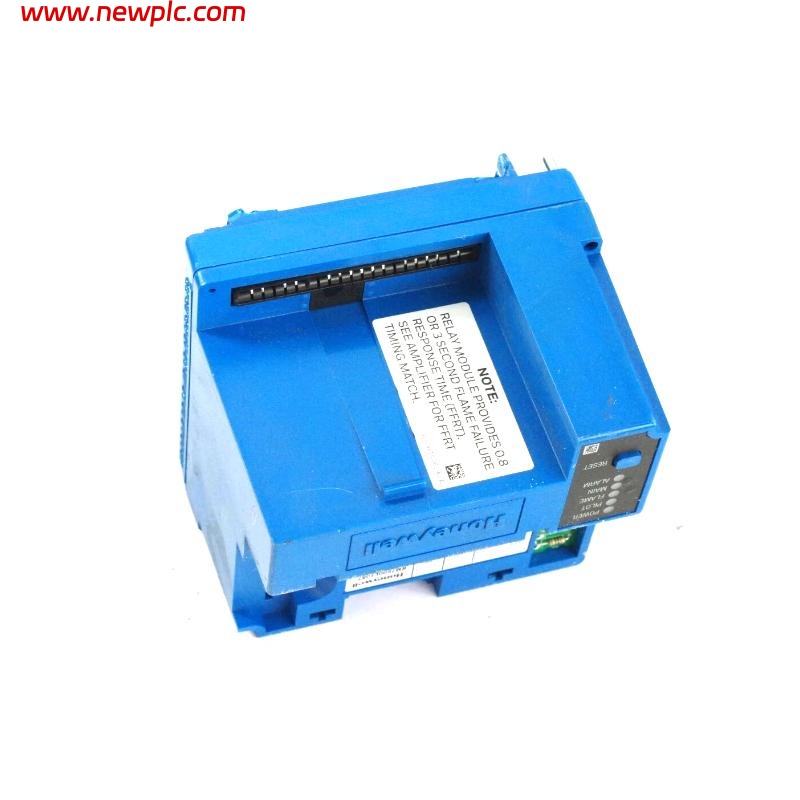

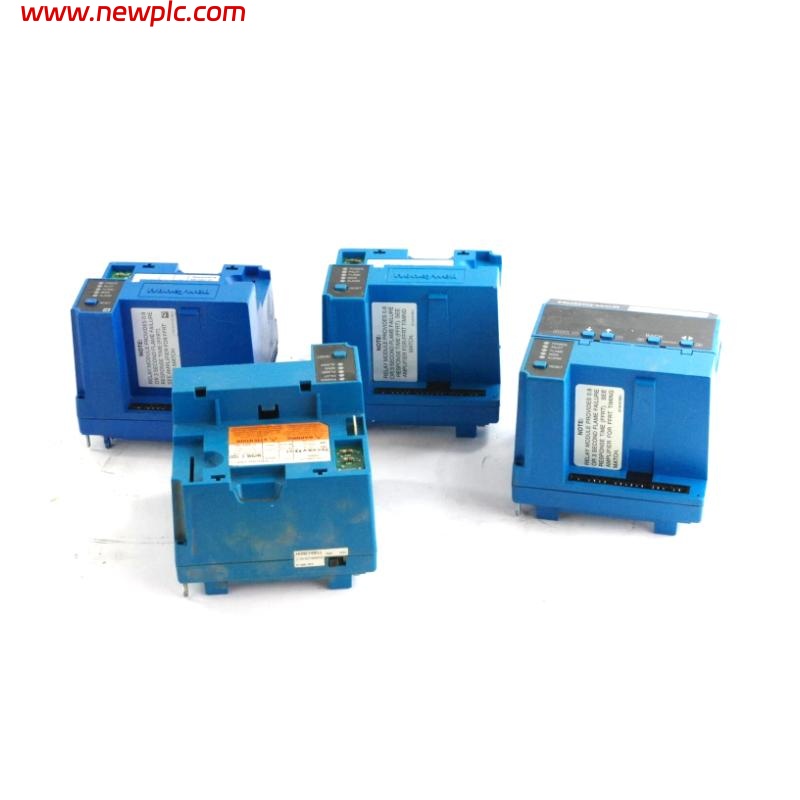

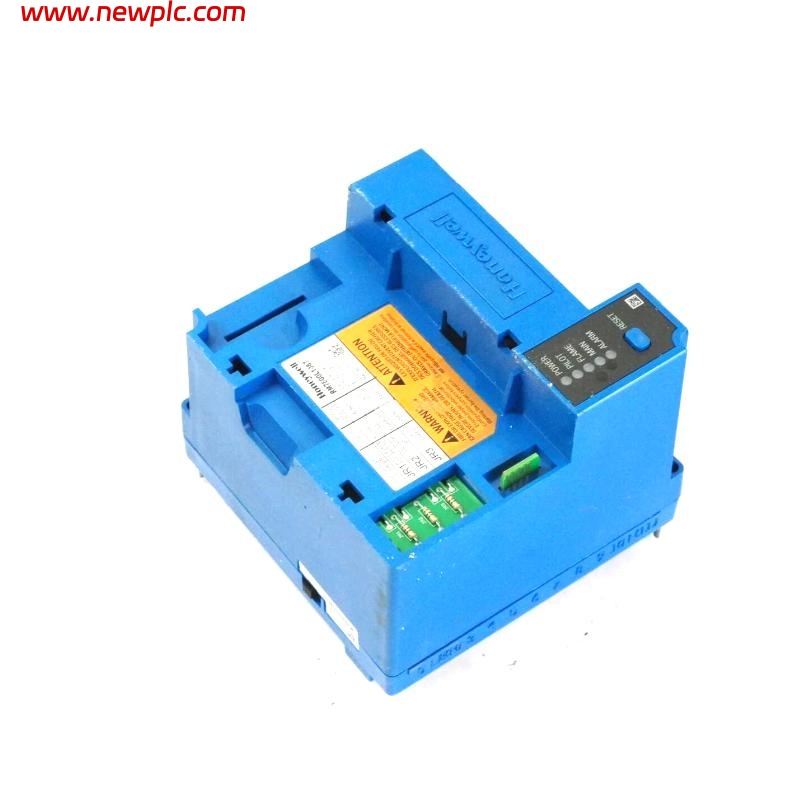

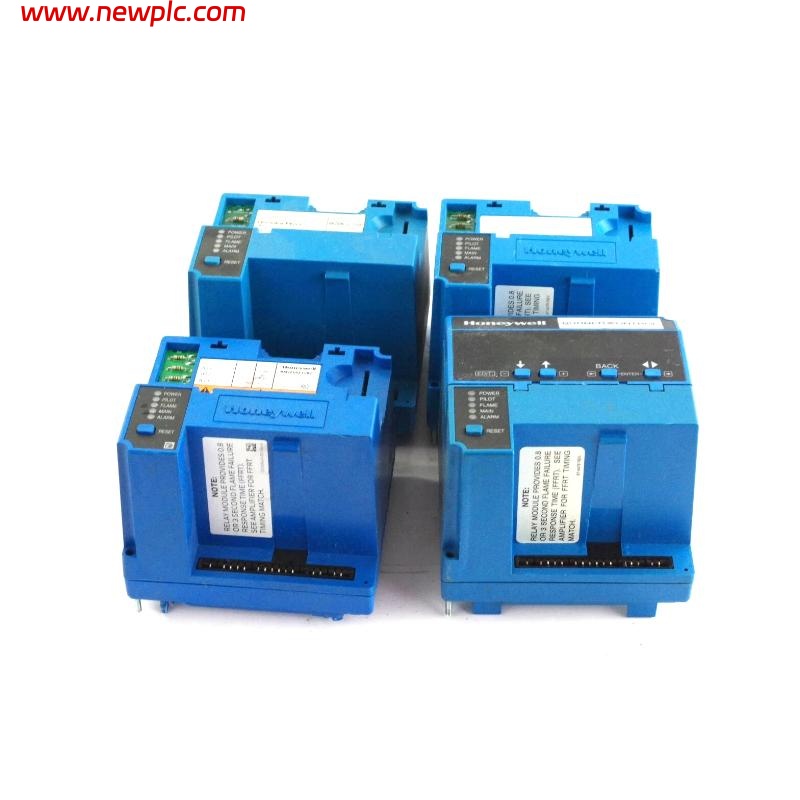

| Model | Honeywell RM7800L1087 Burner Control |
| Voltage | 120 Vac (+10/-15%), 50/60 Hz (±10%) |
| Power Dissipation | RM7800: 10 W max, Display Module: 3 W max |
| Max Connected Load | 2000 VA |
| Fusing | 15 A fast blow, Type SC or equivalent |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 66°C |
| Humidity | 85% RH continuous, non-condensing |
| Vibration | 0.5G environment |
| Flame Failure Response Time | 0.8 to 3.0 seconds (depending on amplifier used) |
| Communication | Modbus™ interface available |
| Mounting | Q7800A (panel), Q7800B (wall or burner mount) |
| Compatible Amplifiers | R7847A/B/C, R7849A/B/C, R7861A, R7886A, etc. |
| Display | 2×20 character Vacuum Fluorescent Display |
| Enclosure Options | NEMA 1, NEMA 4 (with or without reset) |
| Post Purge Time | Adjustable up to 60 minutes (default 15 seconds) |
| Safety Features | Interlock check, AMPLI-CHECK™, self-check, etc. |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.83 kg |
FAQ
FAQ
Q1: Does the RM7800L1087 support different fuel types?
A1: Yes, it is suitable for automatically fired gas, oil, or combination fuel single-burner applications.
Q2: Does the module include self-diagnostic capabilities?
A2: Yes, it provides dynamic self-check, hardware monitoring, and fault history logging.
Q3: What communication interface does it support?
A3: It supports Modbus™ communication and optional Data ControlBus™ modules.
Q4: Can the post purge time be adjusted?
A4: Yes, it is adjustable up to 60 minutes, with a default of 15 seconds.
Q5: What flame amplifiers are compatible?
A5: Compatible with a range of amplifiers, including R7847, R7849, R7852, R7861, and R7886.
Q6: Are multilingual display modules available?
A6: Yes, display modules are available in English, French, German, Italian, Spanish, Japanese, and more.
Q7: Does it support remote reset?
A7: Yes, the system supports remote reset with optional S7820A1007 module.
Q8: Is first-out fault annunciation available?
A8: Yes, the system provides built-in or expanded LED annunciation for first-out fault identification.
