Technical Specifications
| Parameter | Specification |
|---|---|

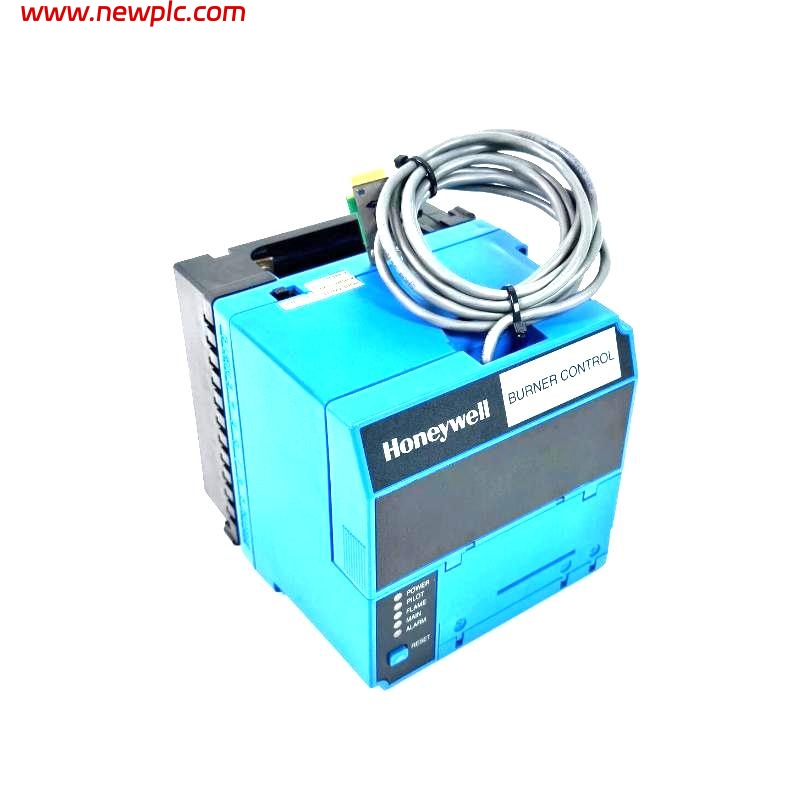

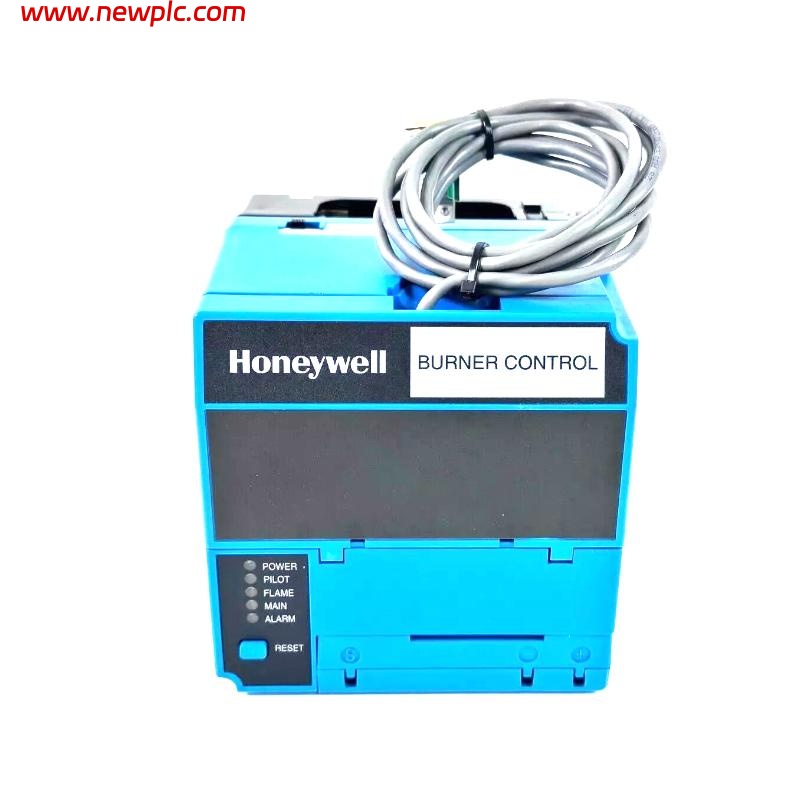

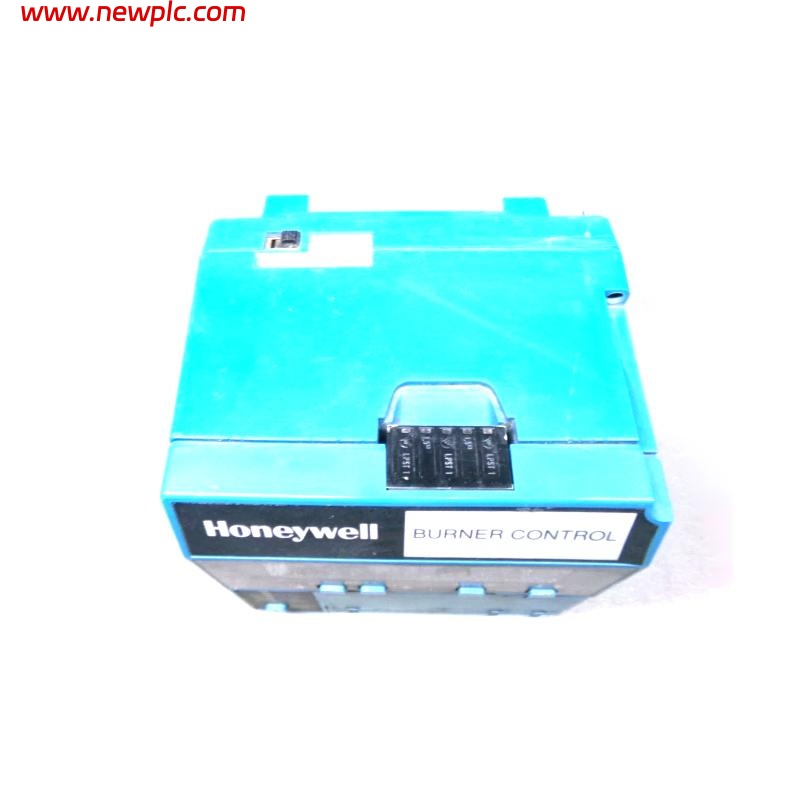

| Model | Honeywell RM7800M1011 Burner Control |
| Voltage and Frequency | 120 Vac (+10/-15%), 50/60 Hz (±10%) |
| Power Dissipation | 10 W (Relay Module), 3 W (Display Module) |
| Maximum Connected Load | 2000 VA |
| Fuse Rating | 15A fast blow, type SC |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Humidity | 85% RH continuous, non-condensing |
| Vibration | 0.5G |
| SIL Capability | SIL 3 capable in suitable systems |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.7 kg |
| Mounting | Panel mount (Q7800A) or wall/burner mount (Q7800B) |
| Flame Failure Response Time | 0.8 to 3.0 seconds (depends on amplifier) |
| Environmental Approvals | UL, CSA, FM, IRI, FCC Part 15 Class A |
| Memory | Nonvolatile memory for fault history and status |
| Communication Options | Modbus™, Data ControlBus™ Module |
| Display | 2×20 VFD Keyboard Display Module |
FAQ
FAQ
Q1: What is the power supply requirement for the RM7800M1011?
A1: It requires 120 Vac (+10/-15%) at 50 or 60 Hz with a maximum power dissipation of 10 W for the relay module.
Q2: What is the operating temperature range of the RM7800M1011?
A2: The operating temperature range is from -40°C to +60°C.
Q3: Is the RM7800M1011 capable of SIL 3 certification?
A3: Yes, it is SIL 3 capable when used in a properly designed Safety Instrumented System.
Q4: What are the mounting options available?
A4: It can be mounted on a panel using the Q7800A subbase or on a wall/burner using the Q7800B subbase.
Q5: What flame failure response time does it support?
A5: The RM7800M1011 supports a flame failure response time between 0.8 and 3.0 seconds, depending on the amplifier used.
Q6: Does the RM7800M1011 support remote reset and diagnostics?
A6: Yes, it supports remote reset and provides extensive diagnostics and fault history.
Q7: What is the weight and size of the RM7800M1011?
A7: The dimensions are 127 × 127 × 133 mm, and the weight is approximately 0.7 kg.
Q8: What are the communication interfaces available?
A8: The RM7800M1011 can communicate via Modbus™ and the Data ControlBus™ Module.
