Technical Specifications
| Parameter | Specification |
|---|---|

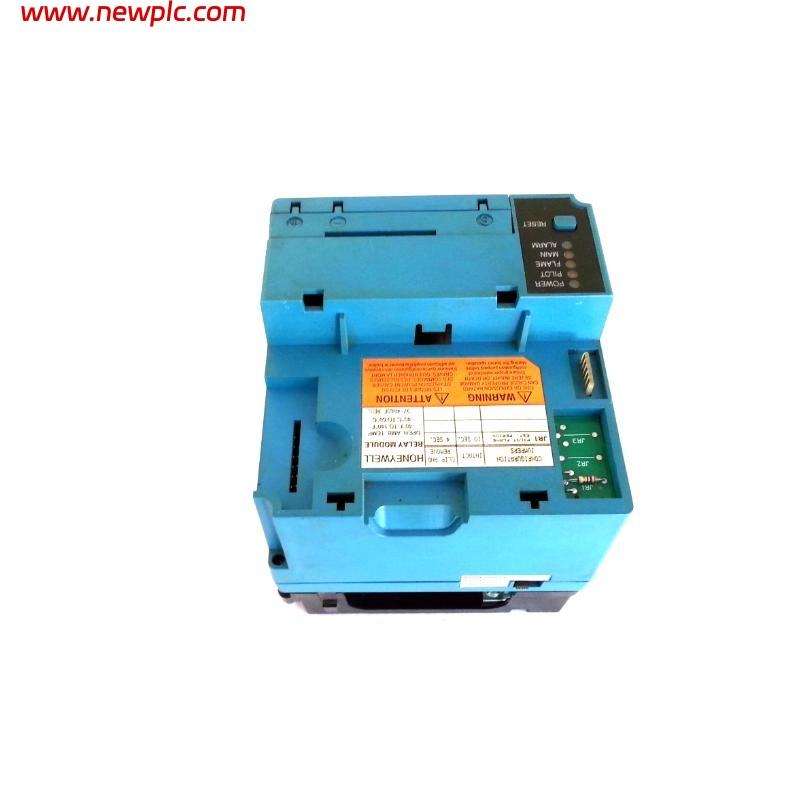

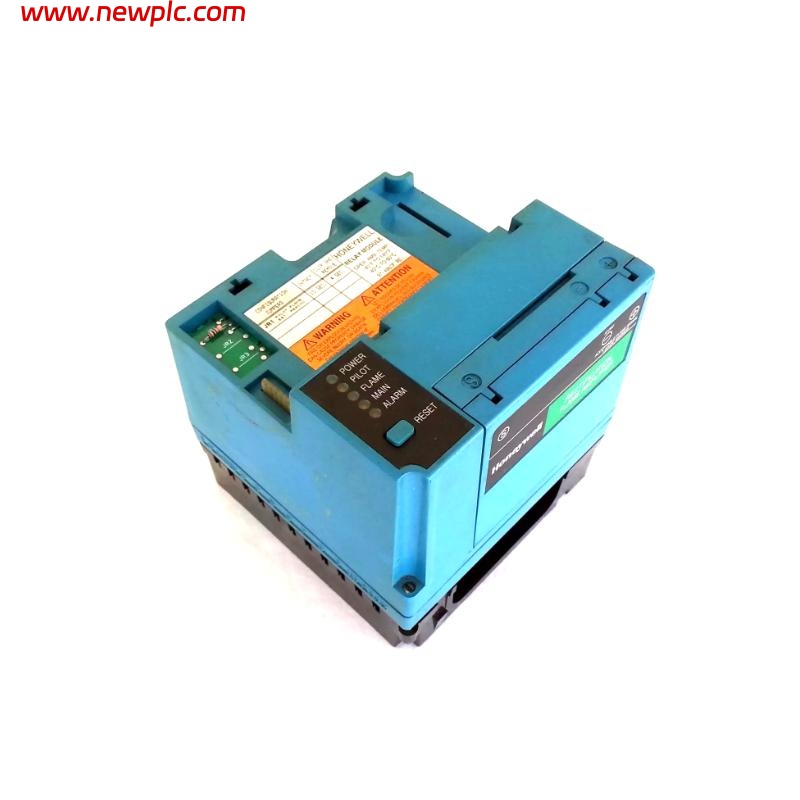

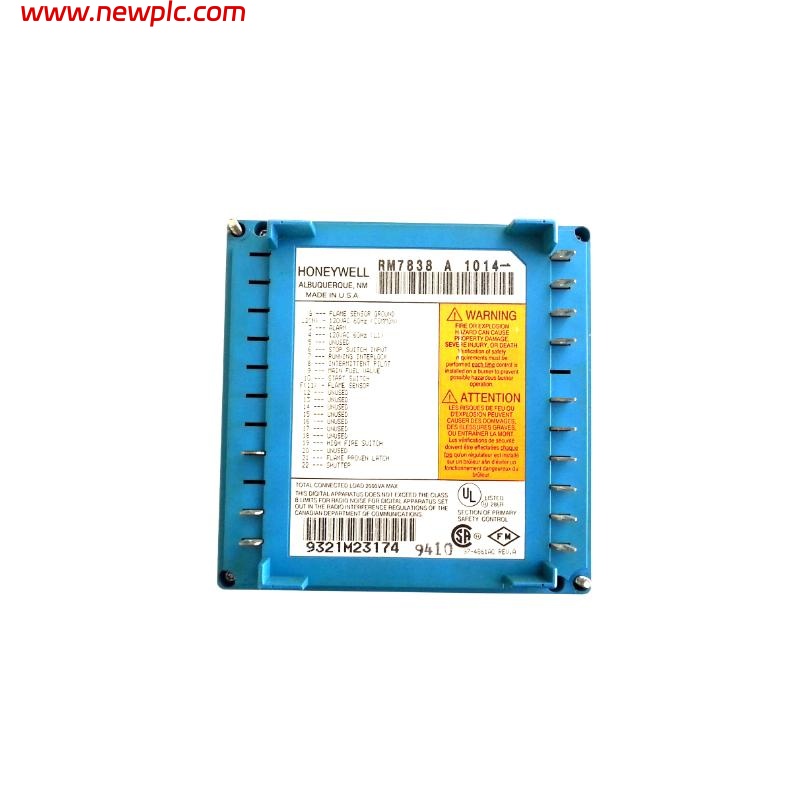

| Product Model | Honeywell RM7838A1014 |
| Series | 7800 SERIES |
| Voltage and Frequency | 120 Vac (+10/-15%), 50/60 Hz (±10%) |
| Power Dissipation | Relay Module: 10W max, Display Module: 3W max |
| Max Connected Load | 2000 VA |
| Fusing Requirement | 15A Fast Blow (Type SC or equivalent) |
| Flame Failure Response Time | 0.8 to 3.0 seconds (depending on amplifier used) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Relative Humidity | 85% RH, non-condensing |
| Vibration Resistance | 0.5G |
| Mounting Options | Q7800A (panel), Q7800B (wall or burner) |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.74 kg (1 lb 13 oz) |
| Communication Interface | Modbus™, Data ControlBus™ (optional) |
| Display | Vacuum Fluorescent Display (2×20 characters) |
| Safety Certification | SIL3 capable, UL, CSA, FM, FCC Part 15 Class A, SwissRe |
| Required Components | Plug-in Flame Amplifier, ST7800A Purge Timer Card |
FAQ
FAQ
Q1: What types of fuels are supported by the RM7838A1014?
A1: It supports gas, oil, or a combination of fuels for single-burner industrial applications.
Q2: Does the RM7838A1014 include self-diagnostics?
A2: Yes, it provides dynamic self-check logic, internal hardware status monitoring, and fault history logging.
Q3: What communication options are available?
A3: The RM7838A1014 supports Modbus™ and Data ControlBus™ communication modules (optional).
Q4: What is the flame failure response time?
A4: The flame failure response time ranges from 0.8 to 3.0 seconds, depending on the amplifier used.
Q5: Can the RM7838A be used with continuously operating burners?
A5: Yes, but it must use self-checking flame detectors such as the C7012E,F with R7847C amplifier or other supported types.
Q6: Is remote reset supported by this module?
A6: Yes, remote reset is available with the optional S7820A1007 Remote Reset Module.
Q7: Does the module provide terminals for external flame signal checks?
A7: Yes, it includes test jacks for measuring flame current externally.
Q8: Does the RM7838A retain data after power loss?
A8: Yes, it has non-volatile memory to preserve sequence status and fault history even after a power interruption.
