Technical Specifications
| Parameter | Value |
|---|---|

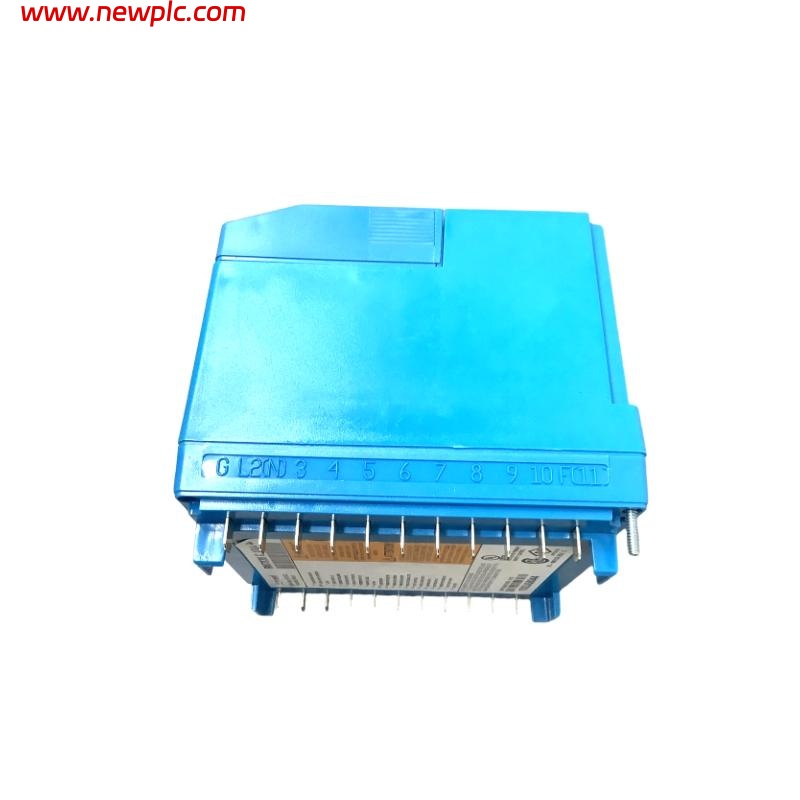

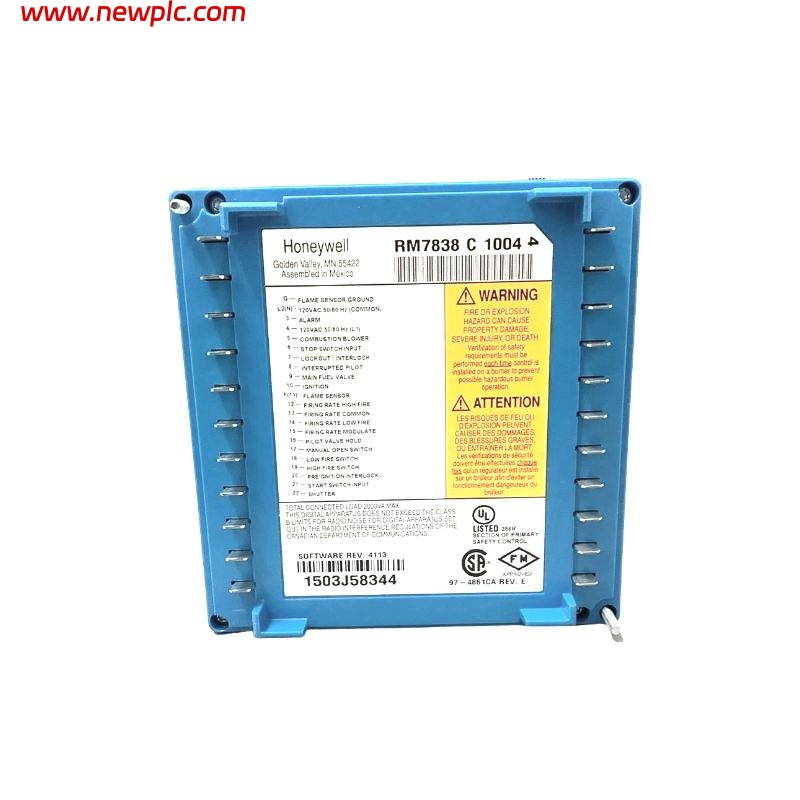

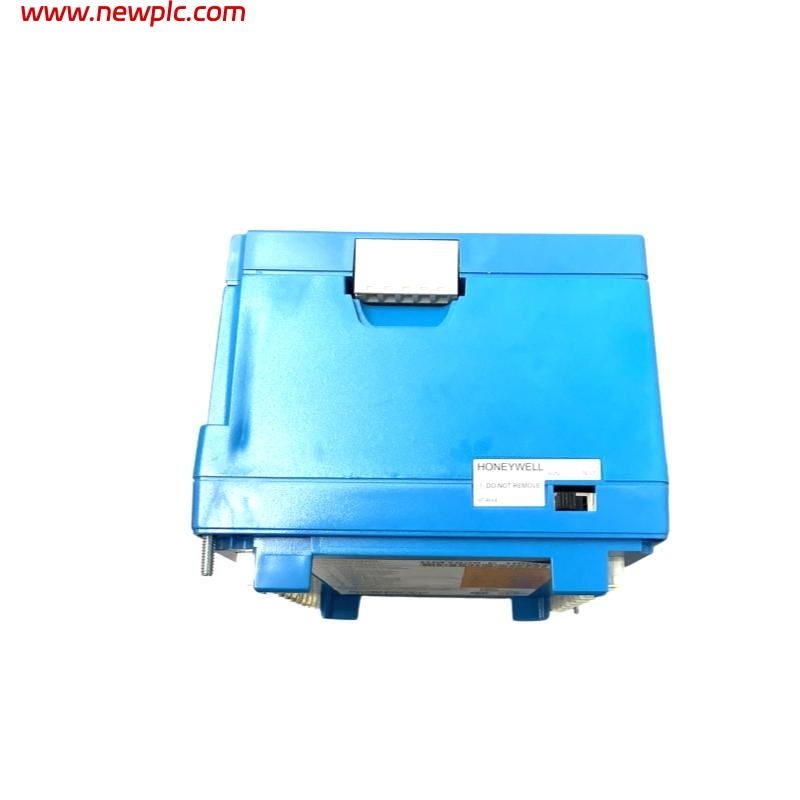

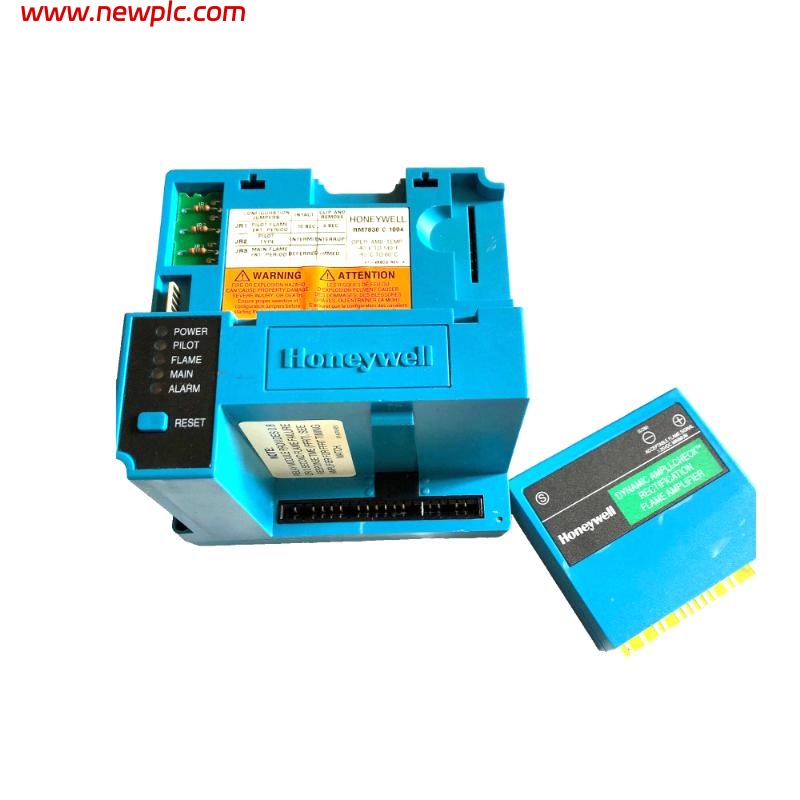

| Model | Honeywell RM7838C1004 Burner Control |
| Supply Voltage | 120 Vac (+10% / -15%), 50/60 Hz (±10%) |
| Power Consumption | 10 W (max) |
| Maximum Connected Load | 2000 VA |
| Fuse Rating | 15 A, Fast Blow |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +66°C (-40°F to +150°F) |
| Humidity | 85% RH continuous, non-condensing |
| Vibration | 0.5G |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.7 kg |
| SIL Capability | SIL 3 capable (with proper system design) |
| Mounting Options | Panel mount (Q7800A) or wall/burner mount (Q7800B) |
| Approvals | UL, CSA, FM, FCC Class A, SwissRe |
| Communication Options | Modbus™ or Data ControlBus™ modules |
FAQ
FAQ
Q1: What is the supply voltage requirement for the RM7838C1004?
A1: The RM7838C1004 operates on 120 Vac (+10% / -15%), 50 or 60 Hz.
Q2: What is the safety integrity level (SIL) capability of this model?
A2: The RM7838C1004 is SIL 3 capable when used in a properly designed Safety Instrumented System.
Q3: What are the environmental operating conditions?
A3: It operates in temperatures from -40°C to +60°C, with up to 85% RH non-condensing humidity.
Q4: How much does the RM7838C1004 weigh?
A4: The weight of the RM7838C1004 is approximately 0.7 kg.
Q5: What are the available mounting options?
A5: It can be mounted using a Q7800A subbase for panel mounting or a Q7800B for wall or burner mounting.
Q6: Does this model support communication interfaces?
A6: Yes, it supports Modbus™ and Data ControlBus™ communication modules.
Q7: What are the main safety features included?
A7: Safety features include combustion interlock check, self-check logic, expanded safe-start check, and tamper-resistant timing.
Q8: What certifications and approvals does it carry?
A8: The RM7838C1004 is UL listed, CSA certified, FM approved, FCC Class A compliant, and acceptable to SwissRe.
