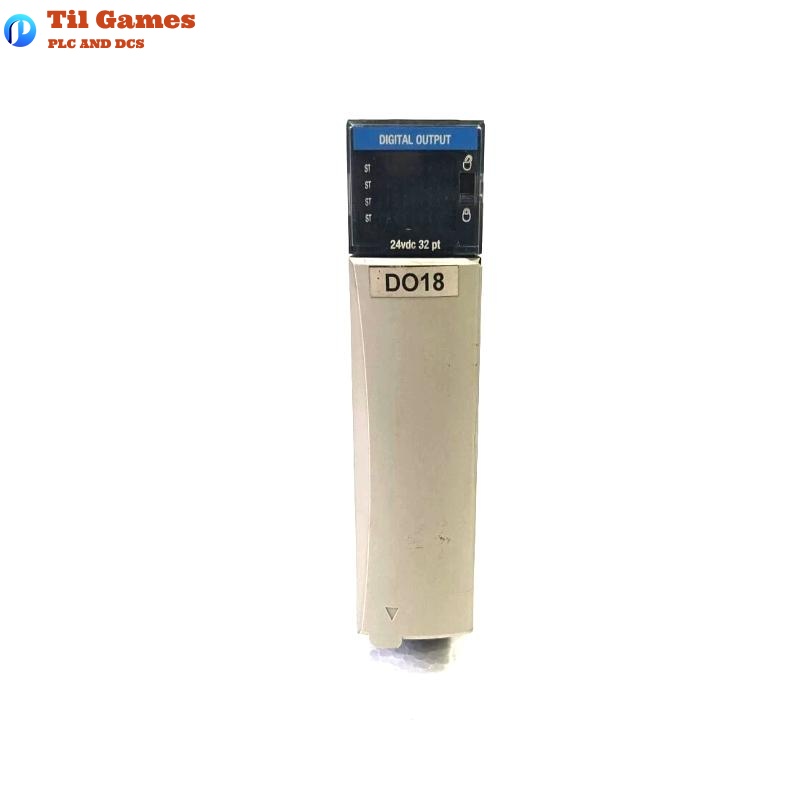

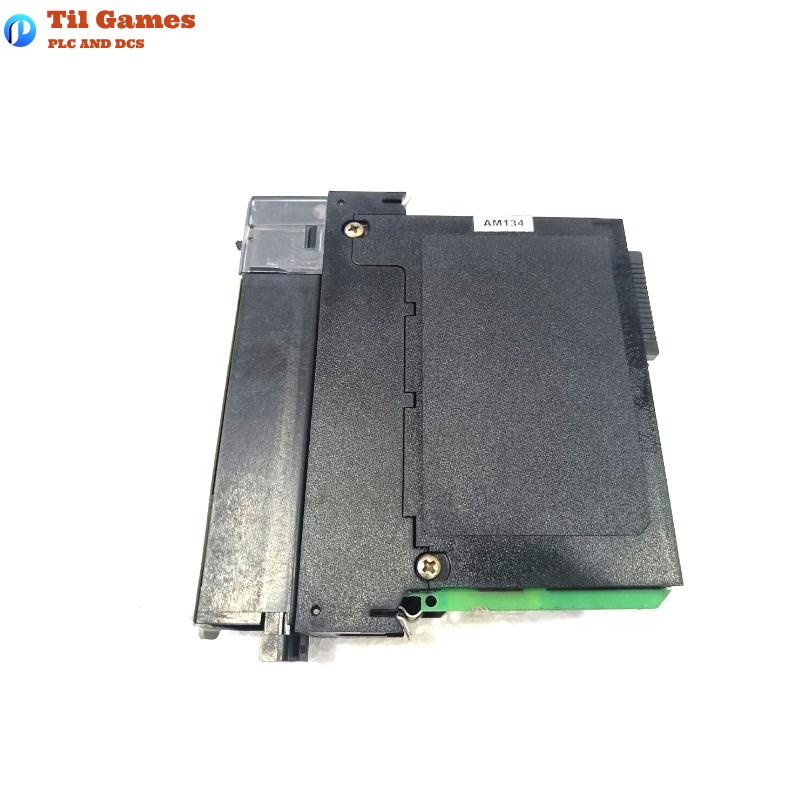

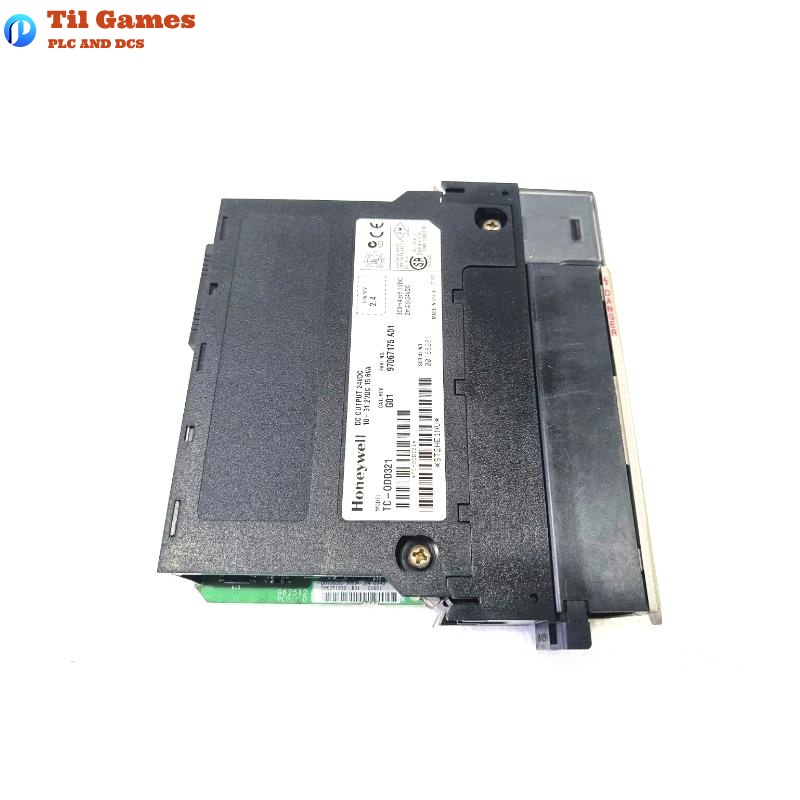

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | DC Output Module (Discrete) |
| Model Number | TC-ODD321 |
| Number of Output Channels | 32 channels |
| Output Voltage Range | 18–30 VDC |
| Output Type | Sourcing (Positive Logic) |
| Output Current per Channel | 0.5 A max |
| Output Current Total | 8.0 A max per module |
| Output Leakage Current | < 0.1 mA |
| Minimum Load | 10 mA |
| Output Delay Time (Off to On) | 0.2 ms typical |
| Output Delay Time (On to Off) | 0.5 ms typical |
| Output Voltage Drop | 1.0 VDC max @ 0.5 A |
| Overcurrent Protection | Electronic current limiting |
| Isolation Voltage | 2546 VDC (channel to system) |

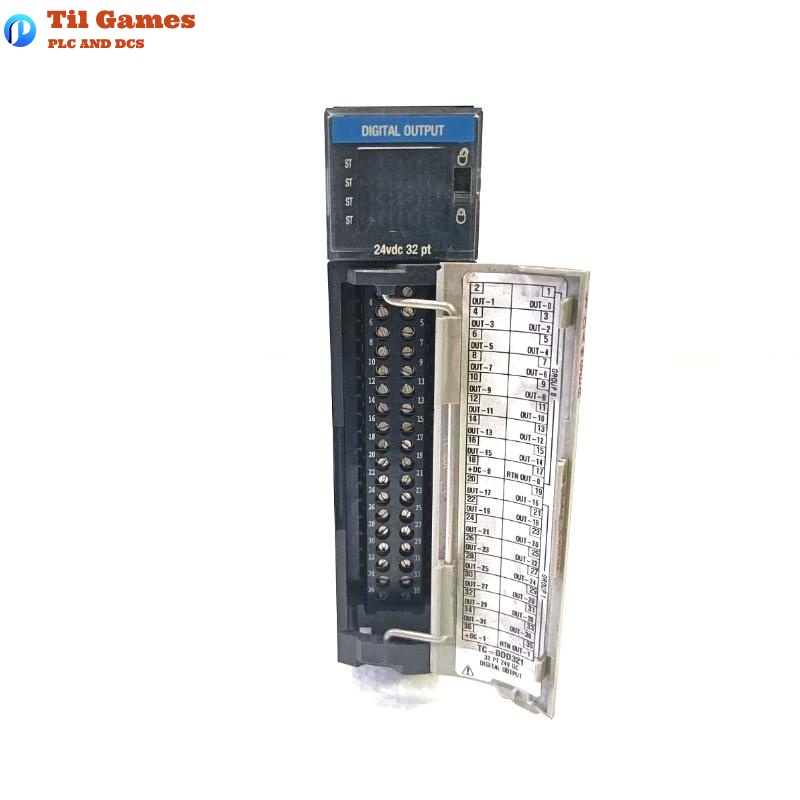

| Connection Type | 36-pin terminal block (TC-TBCH) |
| Power Dissipation | 5.4 W max |
| Dimensions (W x H x D) | 35 x 140 x 145 mm |
| Weight | 0.23 kg |
FAQ
FAQ
Q1: How many output channels does the TC-ODD321 module support?
A1: It supports 32 independent 24 VDC output channels.
Q2: What is the maximum current per output channel?
A2: The maximum output current per channel is 0.5 A.
Q3: Does the module have overcurrent protection?
A3: Yes, it includes electronic current limiting to prevent overload.
Q4: Is the output type sourcing or sinking?
A4: The TC-ODD321 provides sourcing (positive logic) outputs.
Q5: What is the isolation voltage between the channels and system?
A5: The isolation voltage is 2546 VDC channel to system.
Q6: Is hot-swapping supported?
A6: Hot-swapping is supported in non-hazardous locations but not allowed in Class I, Division 2 areas.
Q7: What type of terminal block is used for wiring?
A7: It uses a 36-pin plug-in terminal block (model TC-TBCH).
Q8: What are typical applications of this module?
A8: It’s ideal for controlling 24 VDC digital loads such as lights, relays, alarms, and solenoids.
