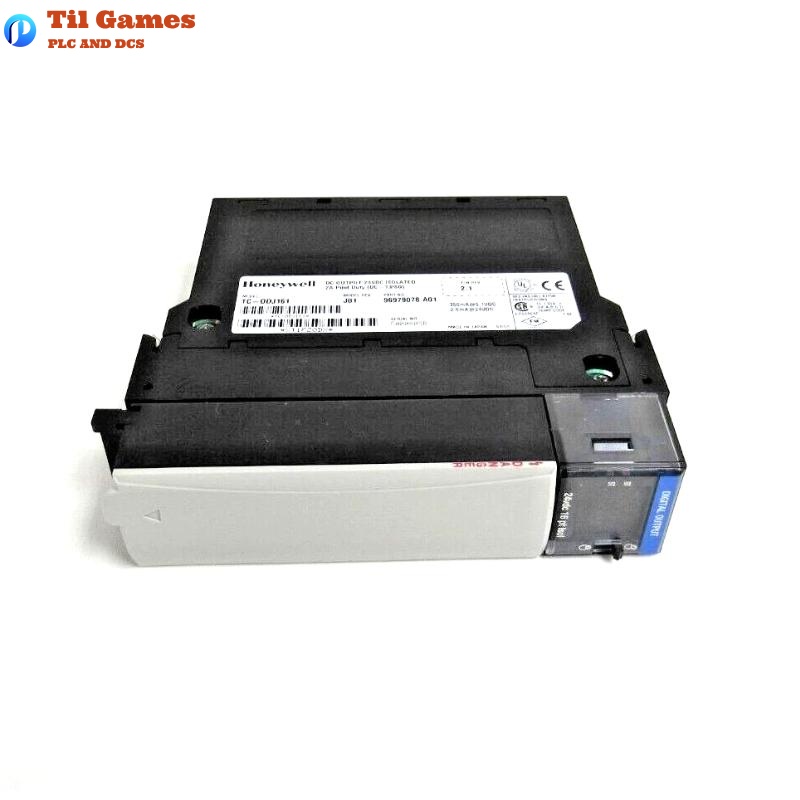

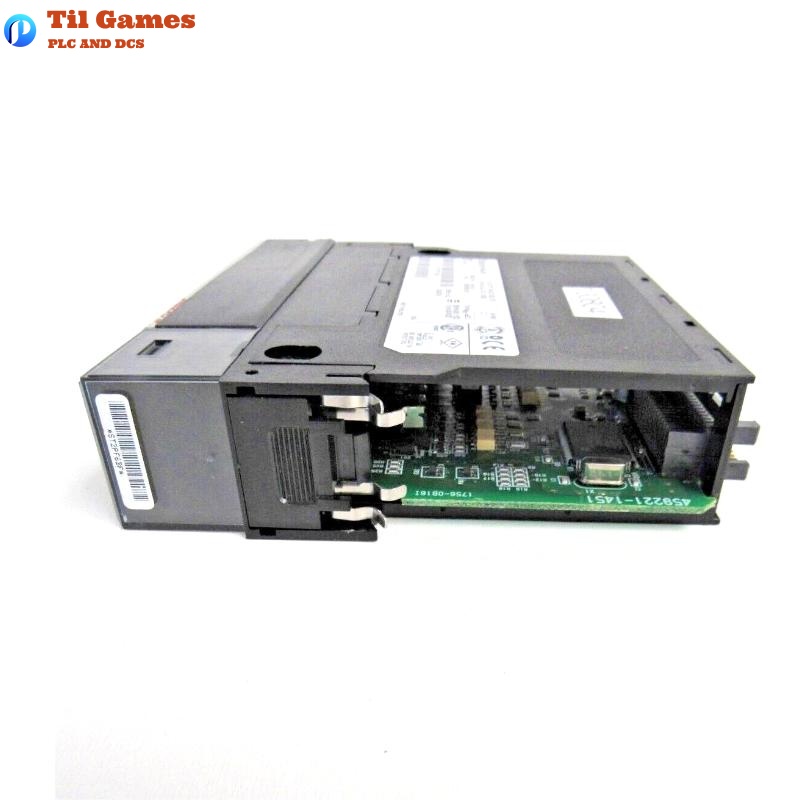

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Digital Output Module (24 VDC, Isolated) |
| Model Number | TC-ODJ161 |
| Number of Outputs | 16 |
| Output Type | Isolated Discrete DC Outputs |
| Output Voltage | 24 VDC (nominal) |
| Output Voltage Range | 10–30 VDC |
| Output Current per Point | 0.5 A (max) |
| Output Current per Module | 8 A (total max) |
| Minimum Load | 5 mA |
| Off-State Leakage | < 0.5 mA |
| On-State Voltage Drop | 1.2 VDC max @ 0.5 A |
| Output Delay Time (On-Off) | < 1 ms typical |
| Surge Current | 2 A for 10 ms per point |
| Diagnostics | None |
| Isolation (Channel to Channel) | 2546 VDC |
| Isolation (User to System) | 2546 VDC |
| Backplane Current | See system power budget |
| Terminal Block Type | TC-TBCH (36-pin terminal block) |
| Power Dissipation | 5.5 W max |
| Dimensions (H × W × D) | 38 × 57 × 78 mm |
| Weight | 0.33 kg |
FAQ
FAQ
Q1: What types of loads are supported by the module?
A1: The TC-ODJ161 module is designed for standard 24 VDC loads such as solenoids, indicators, and contactor coils.
Q2: Are the output channels electrically isolated?
A2: Yes, each output channel is electrically isolated, offering 2546 VDC isolation both channel-to-channel and user-to-system.
Q3: What is the maximum output current per channel?
A3: Each channel can handle up to 0.5 A, with a total maximum of 8 A for the entire module.
Q4: Does the TC-ODJ161 support RIUP (Removal and Insertion Under Power)?
A4: Yes, RIUP is allowed in non-hazardous locations. In hazardous (Class I, Div 2) environments, RIUP is not permitted.
Q5: Does the module include diagnostic functions?
A5: No, TC-ODJ161 does not have diagnostics. For such features, consider models like ODX161.
Q6: How much surge current can the outputs tolerate?
A6: Each output channel can tolerate up to 2 A for 10 milliseconds.
Q7: What terminal block is used with this module?

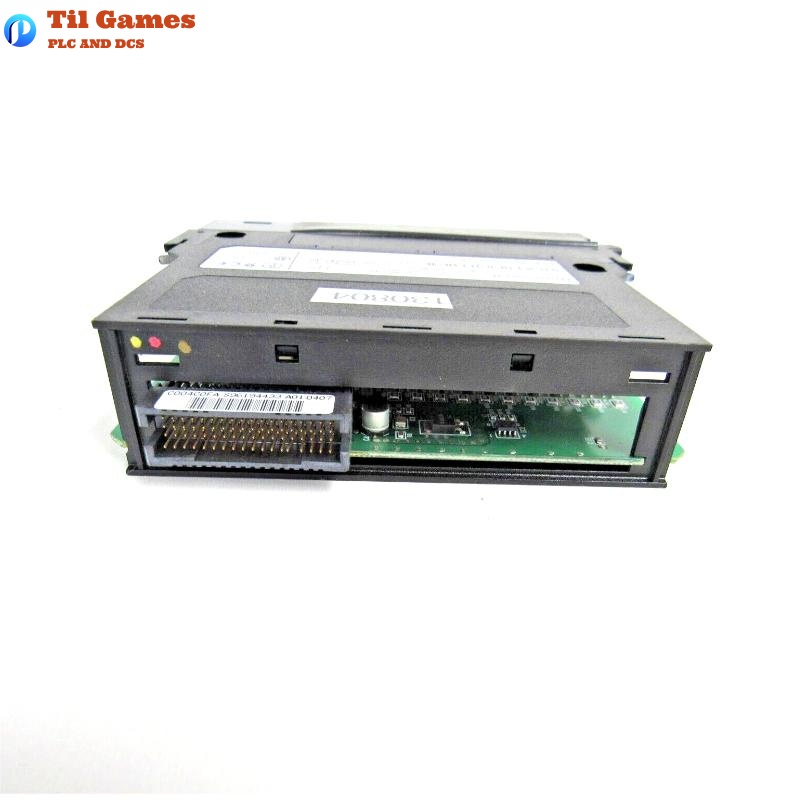

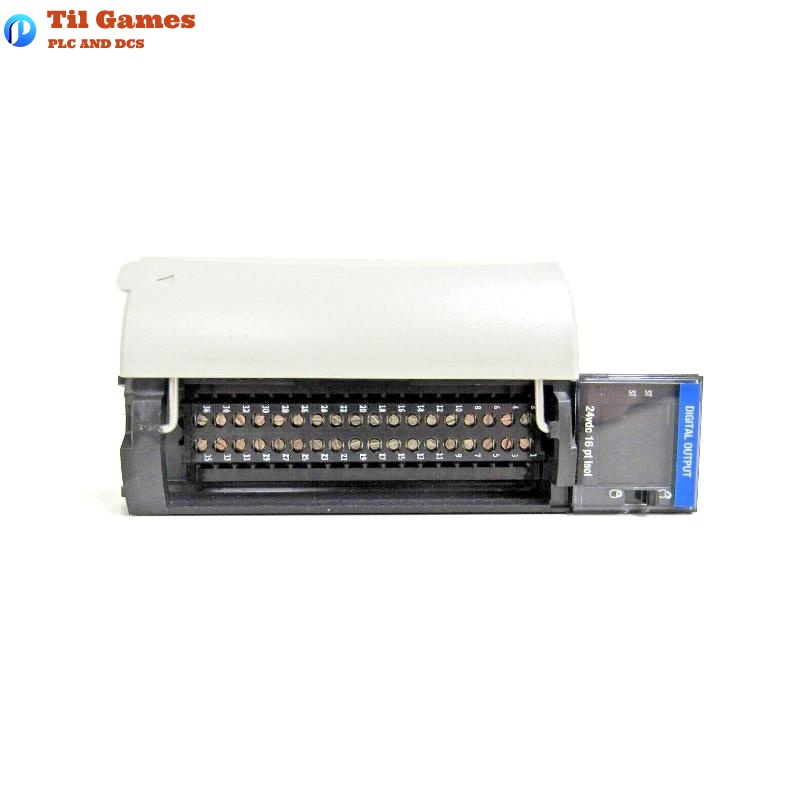

A7: It uses a 36-pin TC-TBCH removable terminal block, supporting standard industrial wiring.
Q8: Does the module require special cooling or mounting?
A8: No special cooling is needed. Install in a standard industrial enclosure with adequate ventilation.
