Technical Specifications
| Parameter | Description |
|---|---|

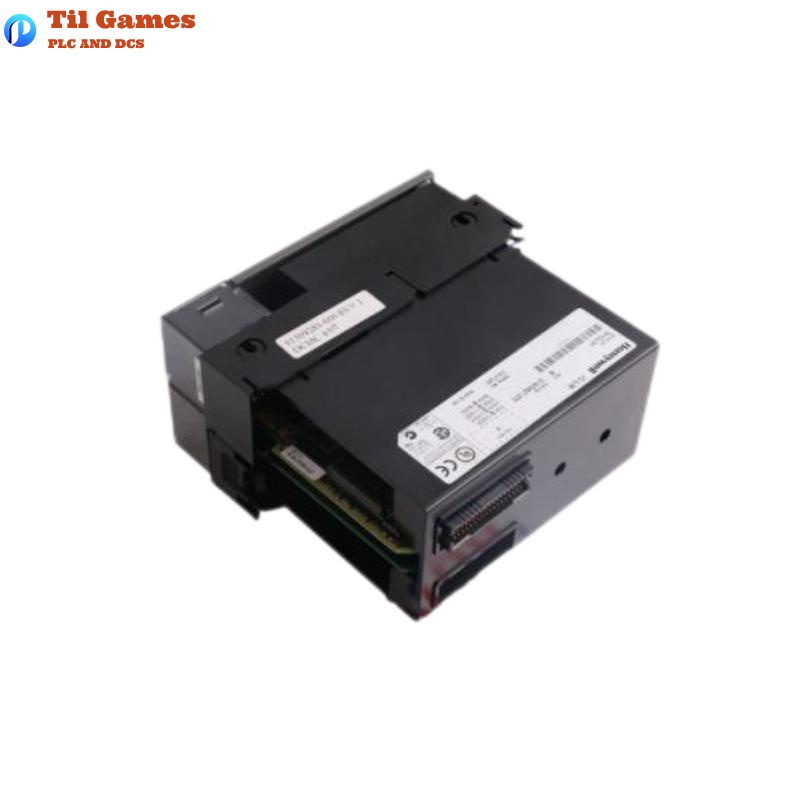

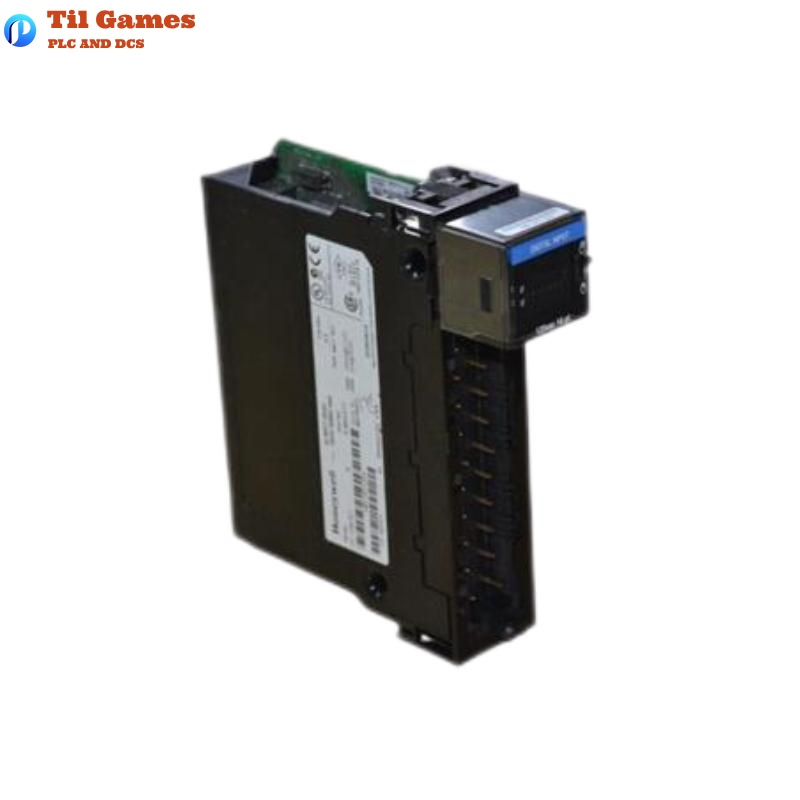

| Product Model | TC-ORC161 |
| Output Type | Relay Output |
| Number of Outputs | 16 Normally Open (NO) Contacts |
| Isolation | Channel-to-channel isolation |
| Switching Voltage Range | 10–250 VAC / 5–125 VDC |
| Switching Current Range | Up to 2 A (resistive load) |
| Maximum Output Power | 60 W (DC) / 60 VA (AC) |
| Module Type | I/O Module for Control Systems |
| Response Time | <10 ms |
| Mounting | DIN rail / Chassis Mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W×H×D) | 38 × 77 × 108 mm |
| Weight | 0.231 kg |
FAQ
FAQ
Q1: How many output channels does the TC-ORC161 support?
A1: The module supports 16 relay output channels with Normally Open (NO) contacts.
Q2: What is the maximum load per output channel?
A2: Each channel can drive up to 2 A, with a maximum output of 60 W (DC) or 60 VA (AC).
Q3: Is there electrical isolation between output channels?
A3: Yes, the TC-ORC161 provides channel-to-channel isolation.
Q4: What types of voltages can it switch?
A4: It can switch both AC (10–250 VAC) and DC (5–125 VDC) voltages.
Q5: How can the module be mounted?
A5: It supports mounting on DIN rail or chassis/backplane.
Q6: What is the module’s typical response time?
A6: The typical switching response time is less than 10 milliseconds.
Q7: What is the operating temperature range of the module?
A7: It operates between 0°C and 60°C, and can be stored from -40°C to 85°C.
Q8: Is the TC-ORC161 suitable for industrial environments?
A8: Yes, it is designed for industrial use and supports 5% to 95% relative humidity (non-condensing).
