Technical Specifications
| Parameter | Specification |
|---|---|

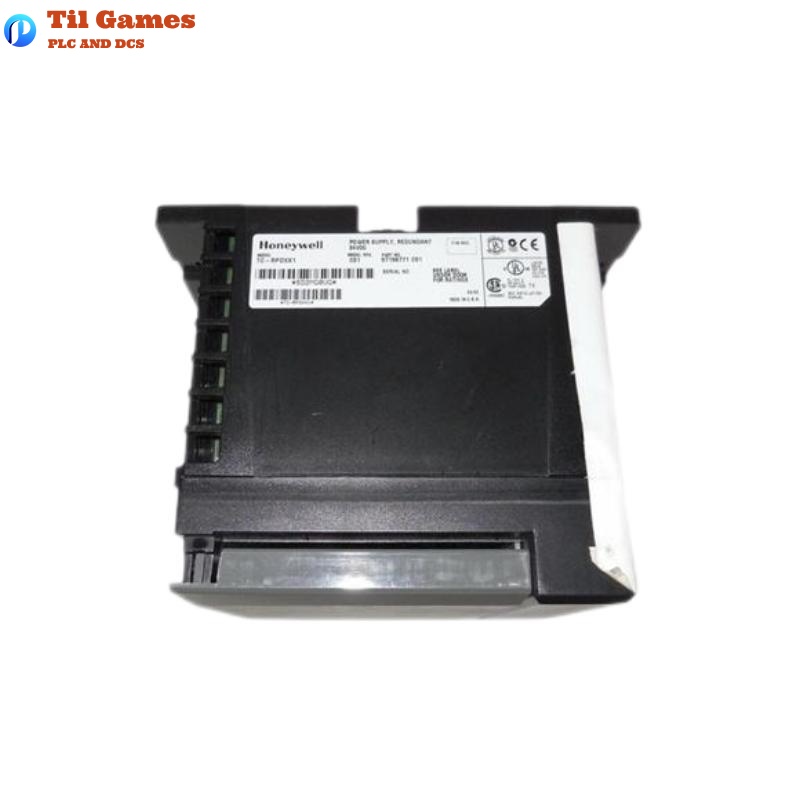

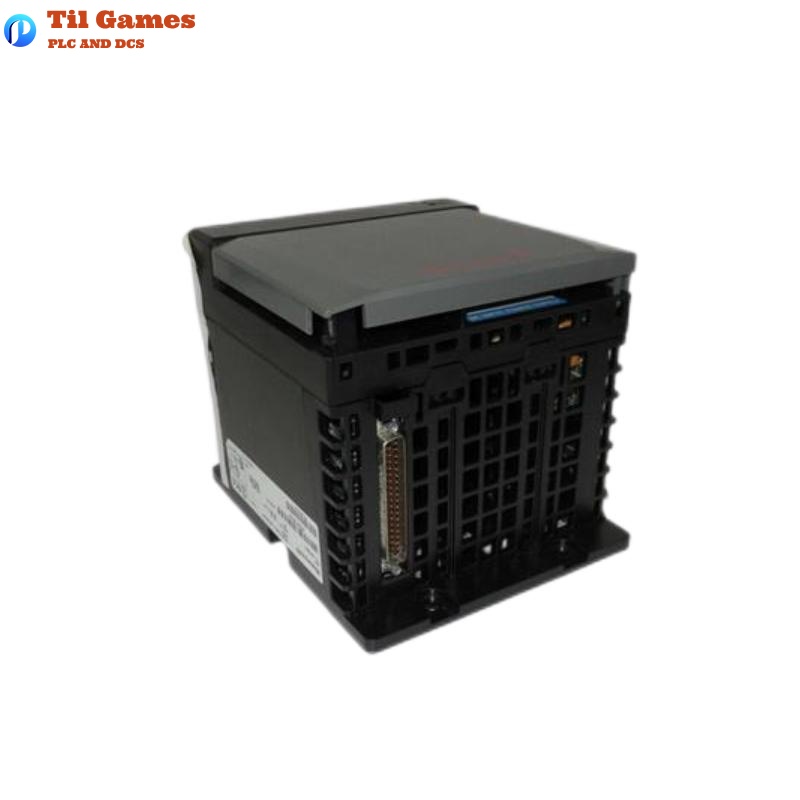

| Model | Honeywell TC-RPDXX1 |
| Power Input Range | 16 – 32 VDC |
| Input Power | 110 W (estimated) |
| Maximum Inrush Current | 30 A @ 19–32 VDC |
| Frequency | DC |
| Total Output Power | 75 W @ 60°C |
| Backplane Output Current | 1.5 A @ 1.2 V 4 A @ 3.3 V 13 A @ 5.1 V 2.8 A @ 24.0 V |
| Input Power Wiring | #14 AWG (1.4 mm) |
| Annunciation User Connection | Solid-state relay, 120 VAC/DC @ 100 mA max |
| Dimensions (L x D x H) | 175 x 144 x 75 mm |
| Weight | 1.47 kg |
| Mounting Location | Vertical (typically above/below chassis) |
| Redundant Cable Model | TC-RPSC03 (1 meter length) |
| Key Features | Redundancy support, error detection, LED indicators |
FAQ
FAQ
Q1: What is the input voltage range of the TC-RPDXX1 module?
A1: The TC-RPDXX1 accepts 16 to 32 VDC input voltage.
Q2: Does TC-RPDXX1 support redundant power configurations?
A2: Yes, it is specifically designed for redundant configurations with load-sharing and backup power capabilities.
Q3: What is the maximum power output of the module?
A3: The module provides up to 75W at 60°C.
Q4: What backplane voltages does it supply?
A4: It supplies 1.2V, 3.3V, 5.1V, and 24V to the backplane.
Q5: Where is the TC-RPDXX1 typically used?
A5: It is used in Honeywell’s Experion Series-A chassis systems for industrial process control.
Q6: How should the module be mounted?
A6: It should be vertically mounted, typically above or below the chassis it powers.
Q7: Is the module hot-swappable?
A7: Hot swapping is allowed only in non-hazardous environments; it is not permitted in hazardous (Class I, Div 2) areas.
Q8: Does the module provide operational status indicators?
A8: Yes, it includes LED indicators for redundant, non-redundant, and fault conditions.
