Technical Specifications
| Parameter | Description |
|---|---|

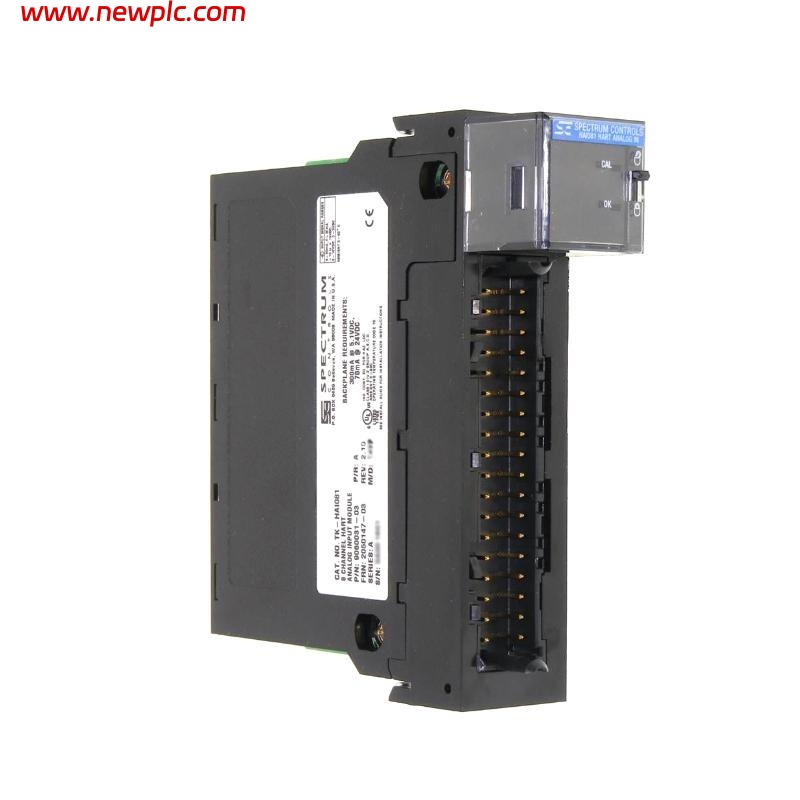

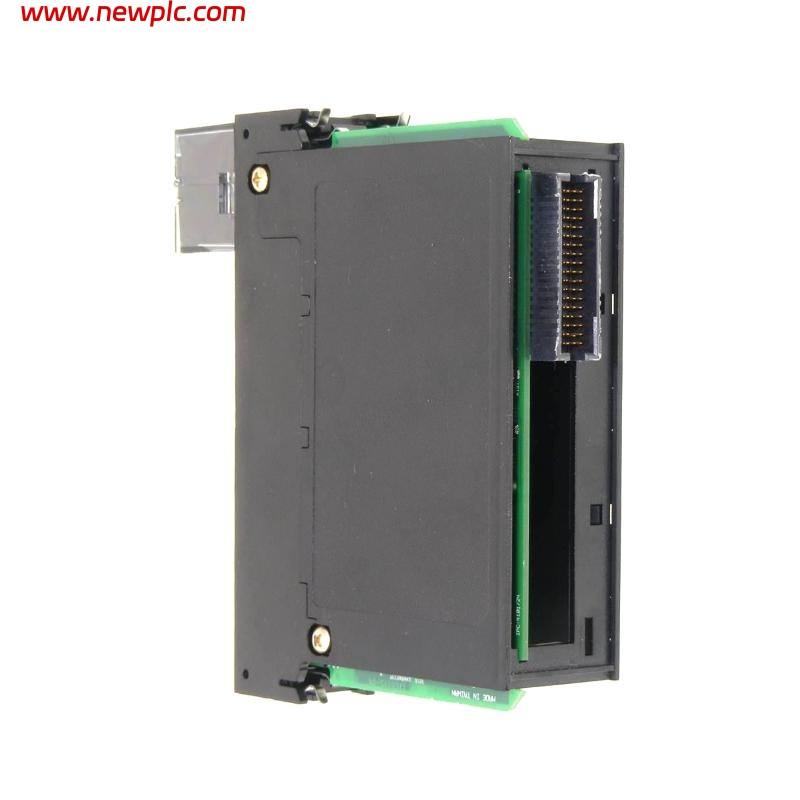

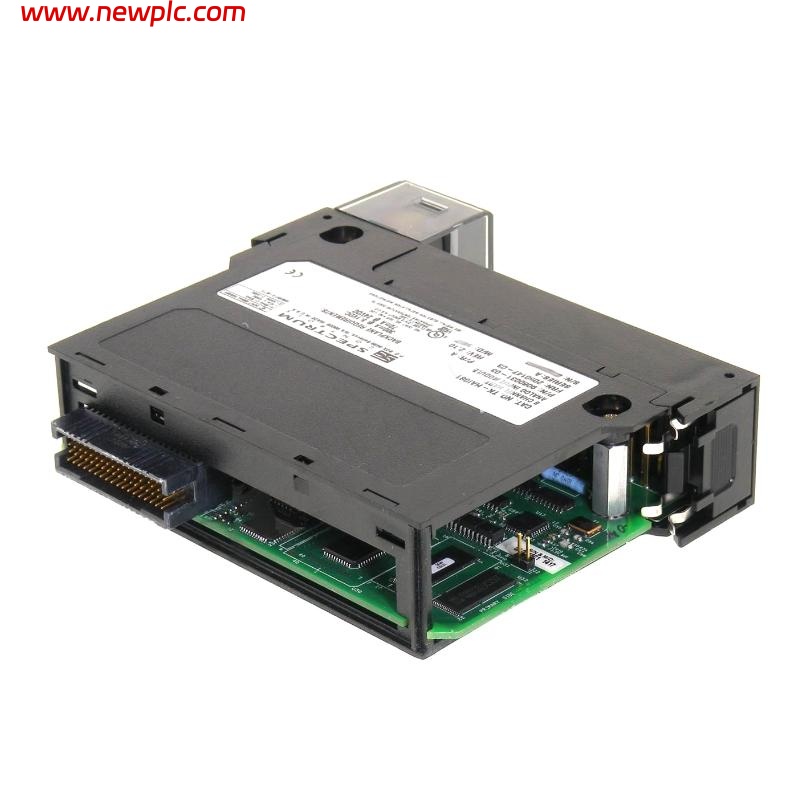

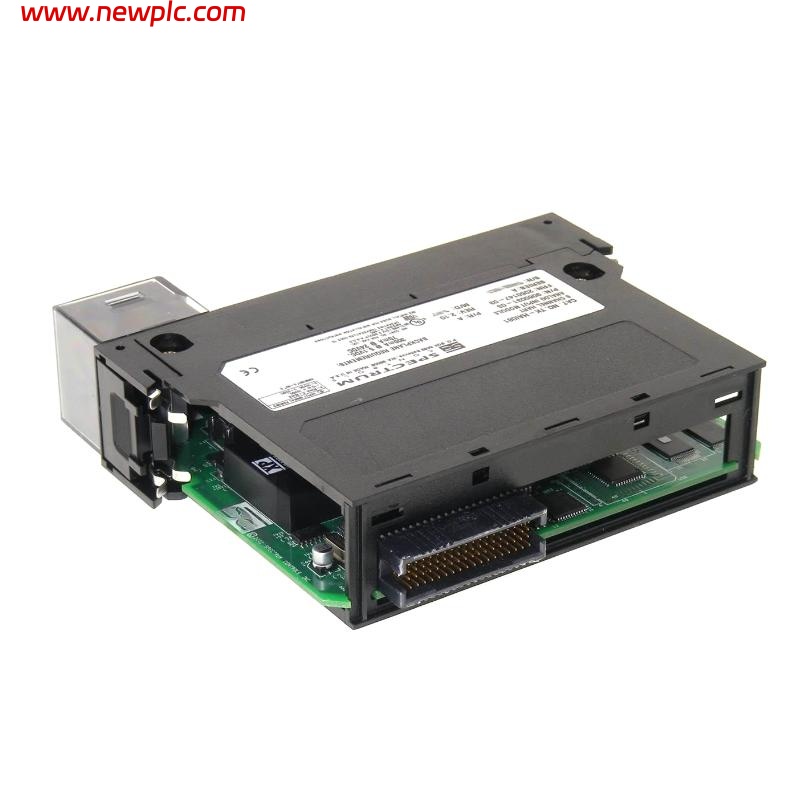

| Product Name | Honeywell TK-HAI081 Analog Input Module |
| Module Type | Analog Input Module |
| Input Channels | 8 differential analog inputs |
| Input Signal Range | 0–20 mA / 4–20 mA configurable |
| Input Type | Current input, voltage input (optional configuration) |
| Update Rate | 10 ms per channel typical |
| Communication Interface | Redundant I/O bus connection |
| Power Supply | 24 V DC nominal |
| Power Consumption | 5 W (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 165 x 150 x 150 mm |
| Weight | 0.55 kg |
| Mounting Type | DIN-rail or system rack mounting |
| Compatibility | Honeywell TDC3000 / Experion PKS systems |
| Certification | CE, UL, RoHS compliant |
FAQ
FAQ
Q1: What is the main function of the TK-HAI081 module?
A1: The TK-HAI081 module is designed to receive multiple analog signals from field devices, convert them into digital data, and transmit the results to the control system for monitoring and control.
Q2: How many channels does this module support?
A2: The module supports up to 8 independent analog input channels, each configurable for current or voltage input depending on process requirements.
Q3: Can the TK-HAI081 handle 4–20 mA and 0–20 mA signals simultaneously?
A3: Yes, each channel can be configured independently to accept either 4–20 mA or 0–20 mA signals through software settings.
Q4: What type of isolation is used in this module?
A4: The TK-HAI081 provides galvanic isolation between input channels and between the channels and the backplane, ensuring signal integrity and protection from interference.
Q5: What is the typical power consumption of the TK-HAI081?
A5: The module consumes 5 watts under normal operating conditions.
Q6: Which control systems are compatible with this module?
A6: The TK-HAI081 is compatible with Honeywell’s TDC3000 and Experion PKS distributed control systems.
Q7: How often does the module update input data?
A7: It typically updates each channel every 10 milliseconds, providing reliable and timely process feedback.
Q8: What type of installation is recommended for this module?
A8: The TK-HAI081 can be mounted on a standard system rack or DIN rail, ensuring secure installation and easy access for maintenance.
