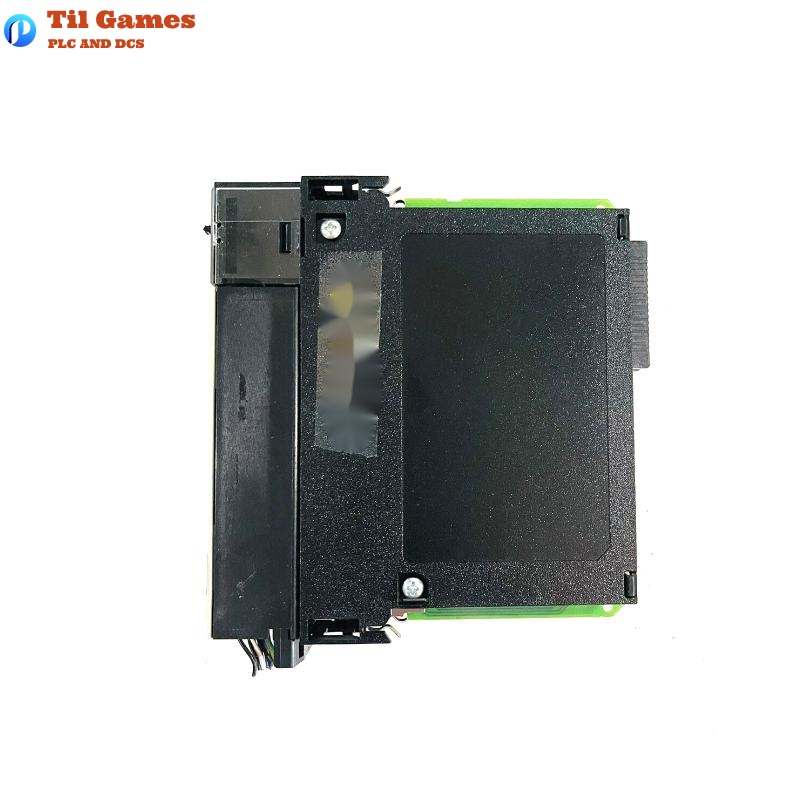

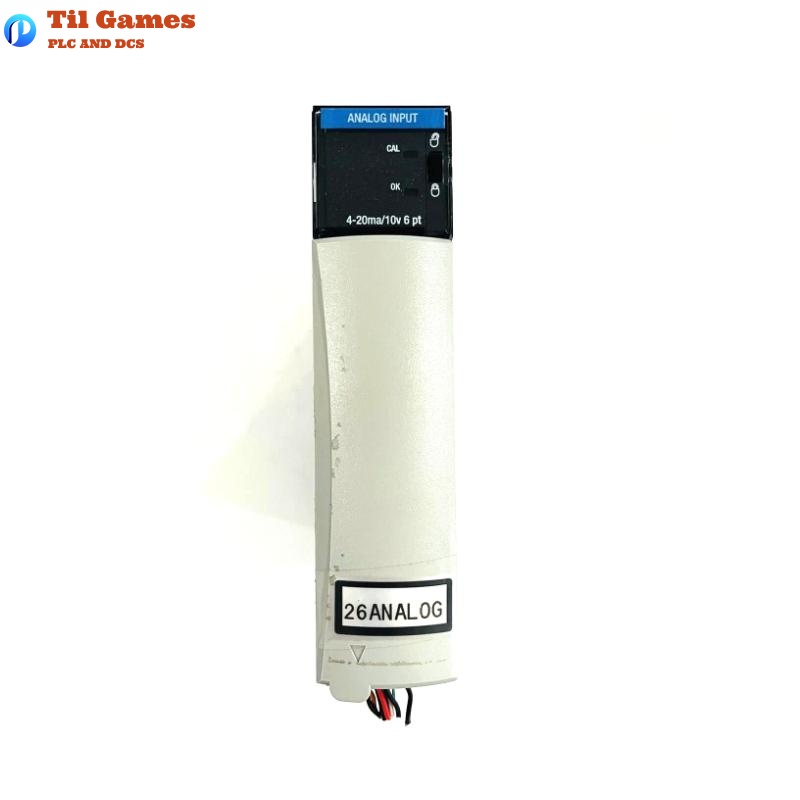

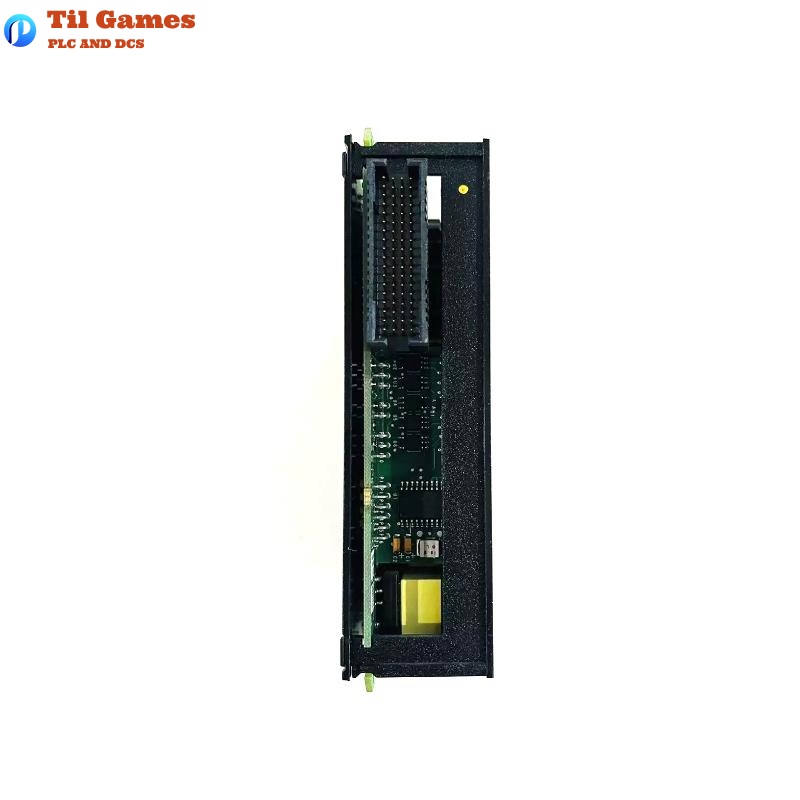

Honeywell TK-IAH061 Experion Analog Input Module

FAQ

Q1: What types of input signals does the TK-IAH061 support?
A1: It supports ±10.5 VDC voltage inputs and 0–21.0 mA current inputs with internal 249 Ω resistance.

Q2: Is channel isolation provided?
A2: Yes, each of the 6 channels is galvanically isolated for better noise immunity and signal integrity.

Q3: What installation environment is supported?
A3: It operates in 0–60°C temperature, 5–95% RH non-condensing; suitable for standard industrial use.

Q4: What is the accuracy of the module?
A4: Better than ±0.1% for voltage and ±0.15% for current including resistor tolerance at 25°C.

Q5: Does the module support open circuit detection?
A5: Yes, it detects open circuits with upscale for voltage and zero for current; detection time is 5s/1s.

Q6: Is hot swap (RIUP) supported?
A6: Permitted in non-hazardous zones only; prohibited in Class I, Div 2 hazardous areas.

Q7: What are the module’s dimensions and weight?
A7: Dimensions are 35 x 140 x 145 mm, and weight is approximately 0.45 kg.

Q8: What type of terminal block does it use?
A8: It uses a 20-position TC-TBNH removable terminal block for easy field wiring.

Experion Analog Input Module Honeywell TK-IAH061
