Technical Specifications
| Parameter | Description |
|---|---|

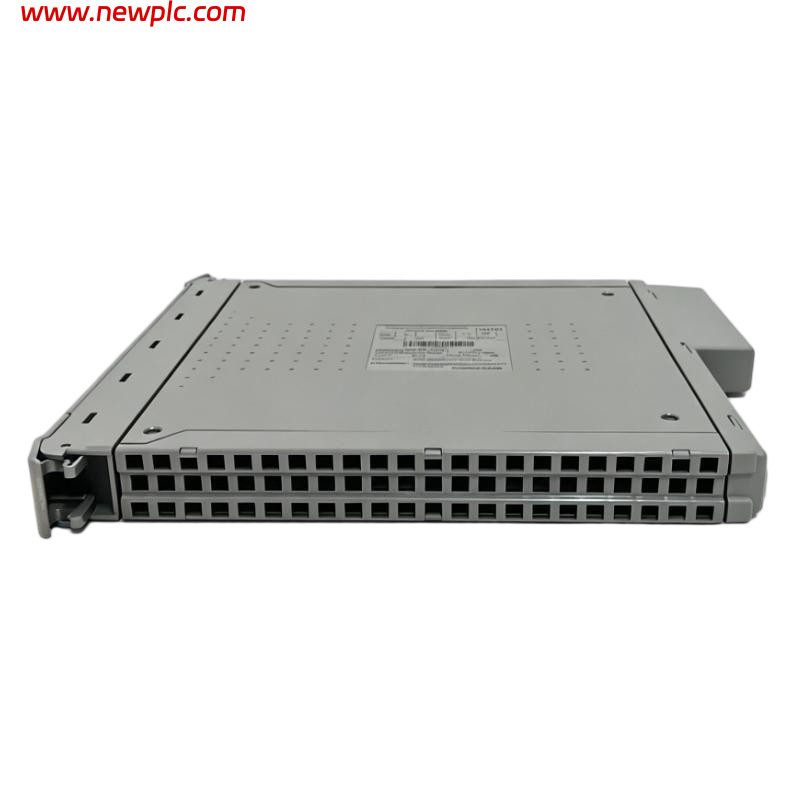

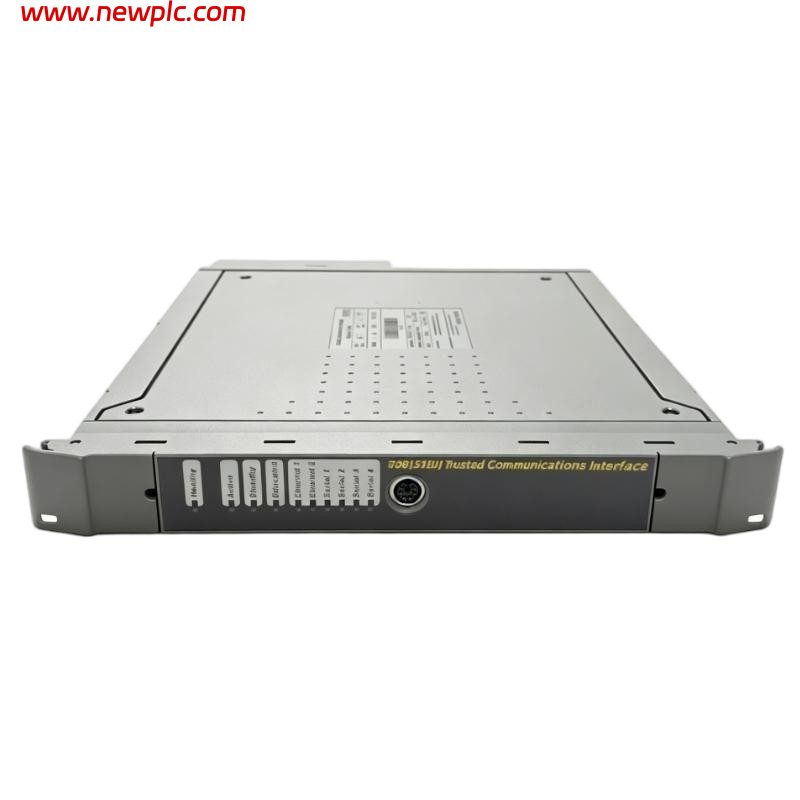

| Product Model | T8151C |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Series | Trusted® TMR Safety System |
| Product Type | Trusted Communications Interface Module |
| Main Function | Communication interface between Trusted TMR processors and external systems |
| System Architecture | Triple Modular Redundancy (TMR) |
| Ethernet Ports | 2 × 10/100Base-T Ethernet |
| Serial Ports | 4 × galvanically isolated serial ports |
| Serial Port 1–2 | RS-232 / RS-422 / RS-485 |
| Serial Port 3–4 | RS-422 / RS-485 |
| Diagnostic Port | 1 × front-panel RS-232 serial port |
| Communication Protocols | Trusted peer-to-peer, Modbus Slave; Modbus Master with optional T812x interface |
| SOE Function | Supported |
| SOE Buffer | Up to 4,000 events |
| Backplane Supply | Redundant 24 VDC from chassis backplane |
| Processor | Independent communication processor |
| Isolation | Galvanic isolation on communication channels |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95%, non-condensing |
| Dimensions | 266 × 31 × 303 mm (H × W × D) |
| Product Weight | Approx. 1.13 kg |
| Country of Origin | USA |
FAQ
FAQ
Q1: What is the ICS Triplex T8151C used for?
A: It is a Trusted Communications Interface Module used to connect the Trusted TMR controller with external control systems, networks and communication devices.
Q2: How many Ethernet ports does the T8151C have?
A: It has two 10/100Base-T Ethernet ports.
Q3: How many serial ports are available?
A: The T8151C has four galvanically isolated serial ports, plus a separate front-panel RS-232 diagnostic port.
Q4: Does the T8151C support Modbus?
A: Yes. It supports Modbus Slave, while Modbus Master operation requires the appropriate Trusted processor interface adapter.
Q5: What is the operating temperature range?
A: The documented operating range is 0°C to +60°C, with storage from -25°C to +70°C.
Q6: Is the T8151C suitable for TMR systems?
A: Yes. It is specifically designed for the Trusted TMR safety system and provides fault-tolerant communication for safety-critical applications.
Q7: What are the dimensions and weight of the T8151C?
A: The official Rockwell documentation lists approximately 266 × 31 × 303 mm (H × W × D) and 1.13 kg.
Q8: What is the difference between T8151C and older T8151 versions?
A: The T8151C is a later-generation communications interface with dual 10/100Base-T Ethernet and integrated serial interfaces, replacing the older 10Base2-based communication architecture.
