Technical Specifications
| Parameter | Description |
|---|---|

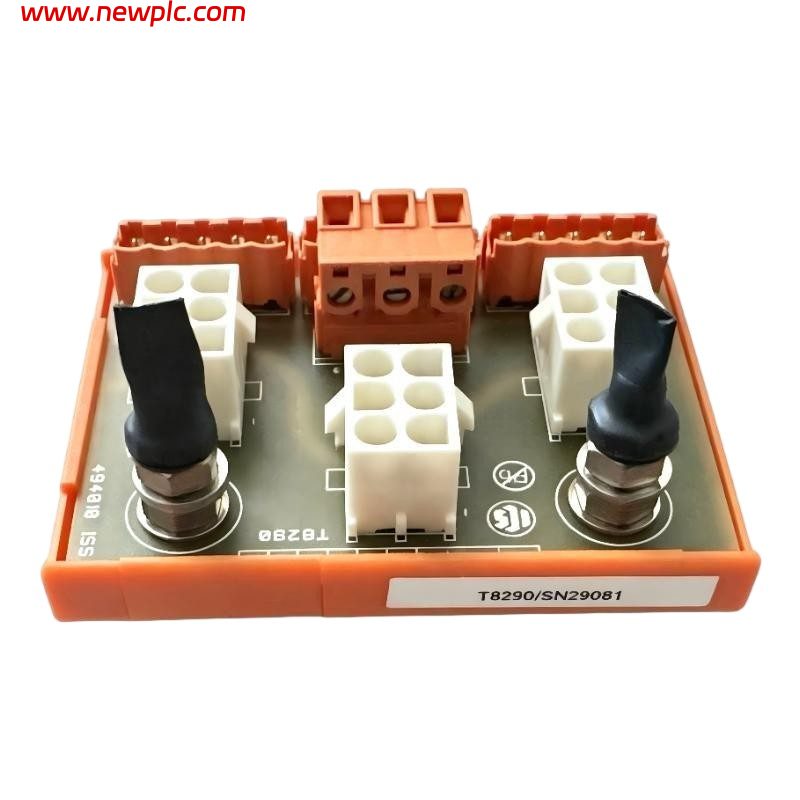

| Product Model | T8290C |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Series | Trusted® Safety System |
| Product Type | Trusted Output Power Distribution Unit |
| Main Function | Distribution of field power to digital output modules |
| Application | Safety Instrumented Systems (SIS), ESD and critical industrial control |
| Supported Output Modules | Trusted sourcing output modules such as T8451 / T8471 |
| Input Voltage Range | 22–120 VDC |
| Maximum Supply Current | 60 A |
| Supply Connection | 2 × M6 × 25 mm studs |
| 0 V Reference | BLZ 2-part terminal |

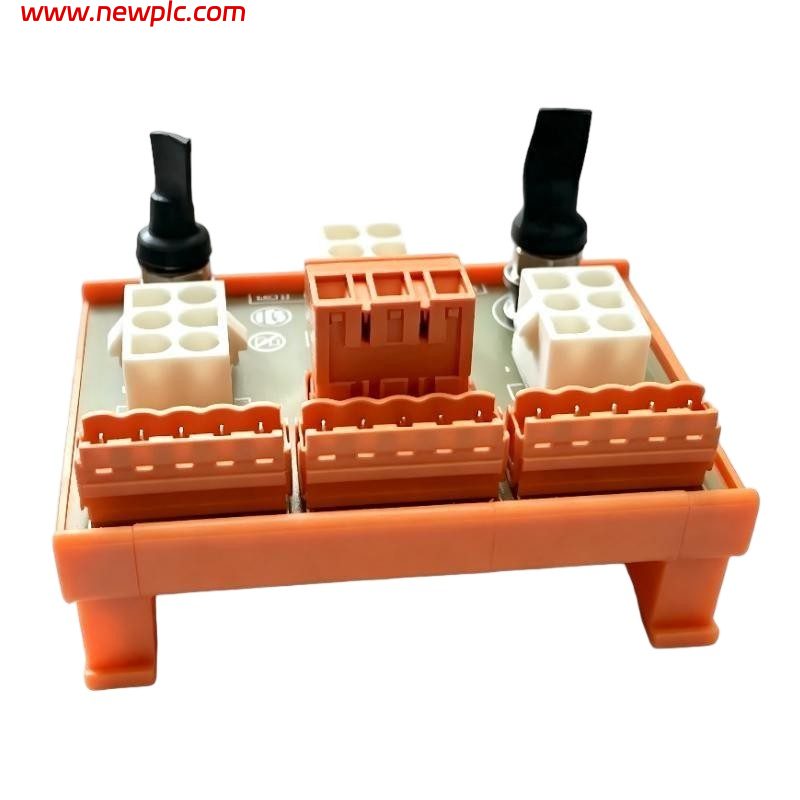

| Power Outputs | 3 × 6-way AMP MATE-N-LOK connectors |
| 0 V Reference Connectors | 3 × 5-way BLZ terminals |
| Conductor Size | 0.5–2.5 mm² |
| Supported Output Modules | Up to 3 modules, subject to total load limit |
| Mounting | DIN rail |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | Approx. 145 × 300 × 45 mm |
| Product Weight | Approx. 2.34 kg |
| Country of Origin | USA / UK |
FAQ
FAQ
Q1: What is the ICS Triplex T8290C used for?
A: It is a Trusted Output Power Distribution Unit used to distribute field power to Trusted digital output modules.
Q2: What input voltage does the T8290C support?
A: It supports a wide 22–120 VDC supply range.
Q3: What is the maximum supply current?
A: The maximum rated supply current is 60 A.
Q4: How many output modules can the T8290C support?
A: It can support up to three output modules, provided the combined load does not exceed the unit’s rated capacity.
Q5: What type of output connectors are used?
A: It uses three 6-way AMP MATE-N-LOK connectors for power distribution, together with three 5-way BLZ terminals for the 0 V reference.
Q6: How is the T8290C installed?
A: The unit is designed for DIN-rail mounting above the associated Trusted output modules.
Q7: What is the operating temperature range?
A: The specified operating temperature is 0°C to +60°C, with a storage temperature range of -25°C to +70°C.
Q8: What are the dimensions and weight of the T8290C?
A: Supplier specifications list approximately 145 × 300 × 45 mm and 2.34 kg.
