Technical Specifications
| Item | Specification |
|---|---|

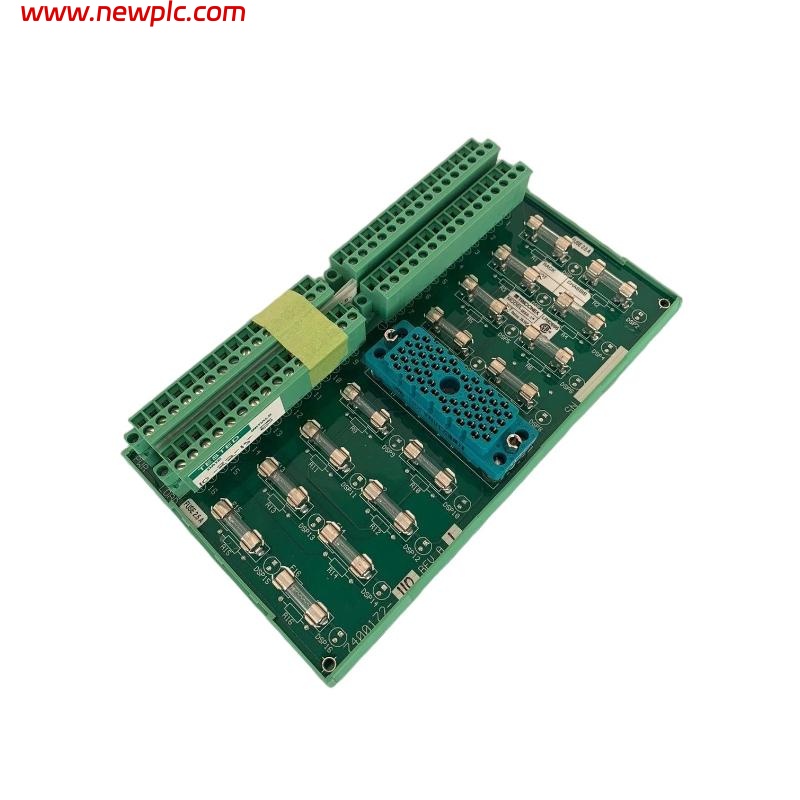

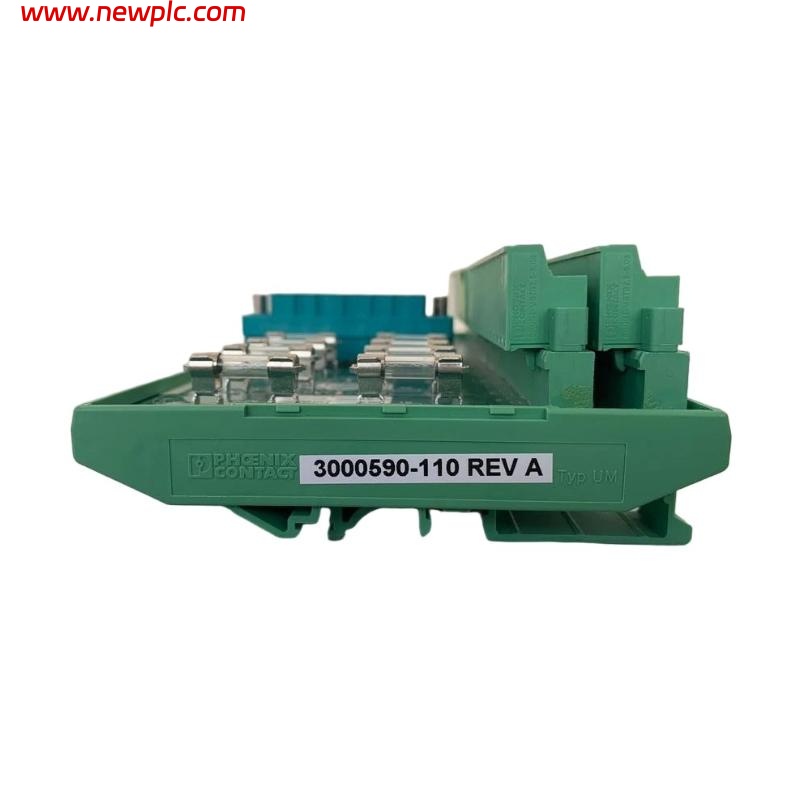

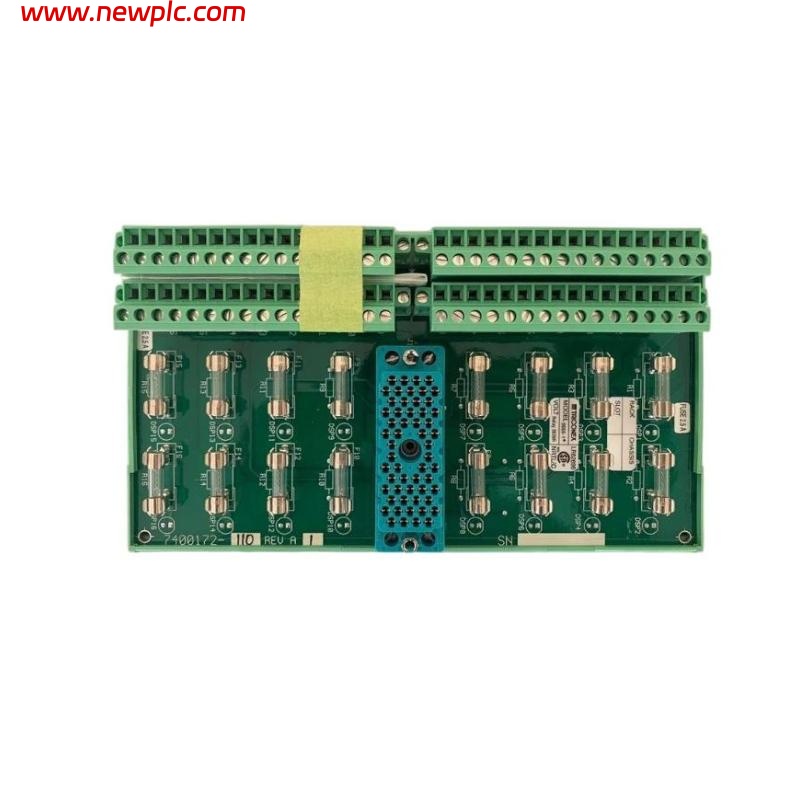

| Model Number | Triconex 3000590-110 |
| Type | Digital Input Terminal Panel |
| System Compatibility | Triconex Safety Control System |
| Number of Channels | 32 digital input channels |
| Mounting Method | Panel mounting |
| Electrical Connection | Screw clamp terminal |
| Wire Type | Solid or stranded wire |
| Wire Range | 0.5 mm² to 2.5 mm² |
| Operating Voltage | 18 VDC to 32 VDC |
| Dielectric Strength | ≥ 500 V AC (terminal to ground) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Material | Industrial-grade flame-retardant plastic |
| Dimensions | 220 x 65 x 45 mm |
| Weight | 0.55 kg |
FAQ
FAQ
Q1: What is the primary use of the Triconex 3000590-110 panel?
A1: It is used for digital input signal interfacing in Triconex safety and critical control systems.
Q2: How many input channels does each panel support?
A2: Each panel supports up to 32 individual digital input channels.
Q3: Can the panel be mounted on a DIN rail?
A3: No, it is designed for direct panel mounting only.
Q4: Does it support stranded and twisted pair wiring?
A4: Yes, it supports both solid and stranded wires within 0.5 mm² to 2.5 mm².
Q5: Does the module have built-in short-circuit protection?
A5: No, short-circuit protection must be implemented externally or by upstream modules.
Q6: What is the acceptable input voltage range?
A6: The panel supports input voltage from 18 VDC to 32 VDC, typically 24 VDC.
Q7: Is the enclosure material industrial compliant?
A7: Yes, it uses flame-retardant engineering plastic meeting industrial standards.
Q8: Are terminal labels included with the shipment?
A8: Yes, terminal identification stickers are included for easy field wiring.
