Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3636R/T |
| Type | Non-triplicated |
| Output Points | 32, non-commoned |
| Output Contact | Normally Open (NO) |
| Voltage Range | Maximum 155 VAC/VDC |
| Current Load per Point | Maximum 2 A |
| Switching Power (Resistive) | Maximum 2000 VA / 150 W |
| Point Isolation | 1500 VDC (3636R), 2500 VDC (3636T) |
| Fuse per Output | 2.5 A fast-acting |
| Diagnostic Indicators | Per point: PASS, FAULT, ACTIVE |
| Hot-Spare Support | Yes |
| External Termination Panel | Required |
| Dimensions | 490 x 453 x 68 mm |
| Weight | 2.5 kg |
FAQ
FAQ
Q1: What are the typical applications for this module?

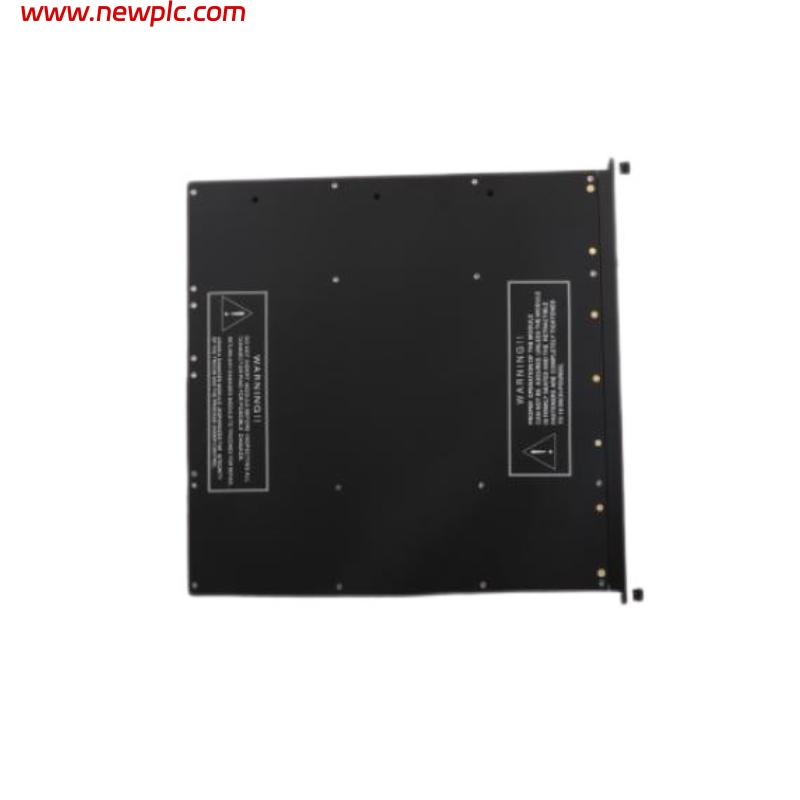

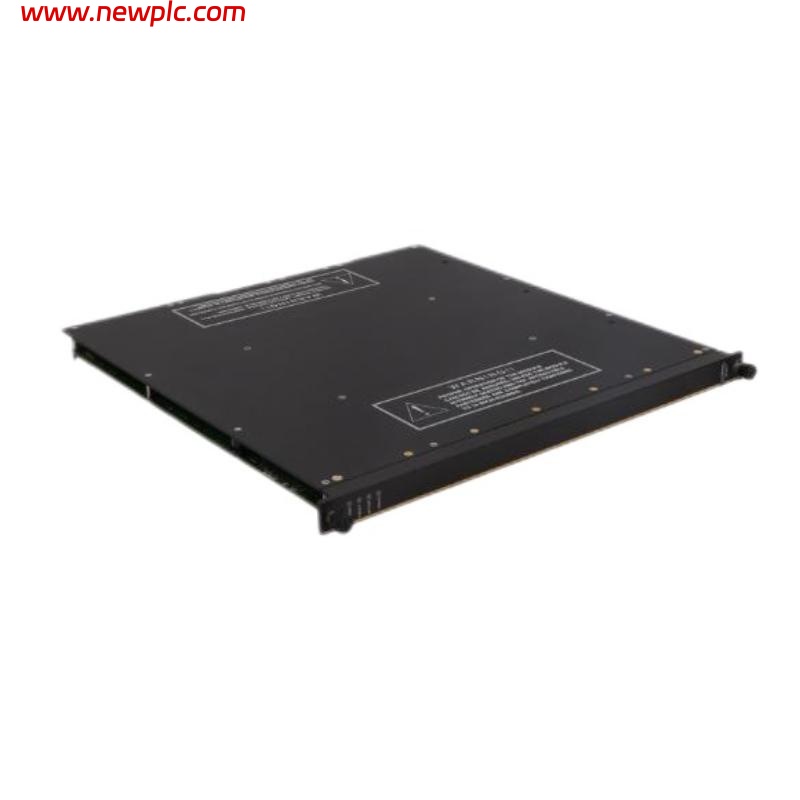

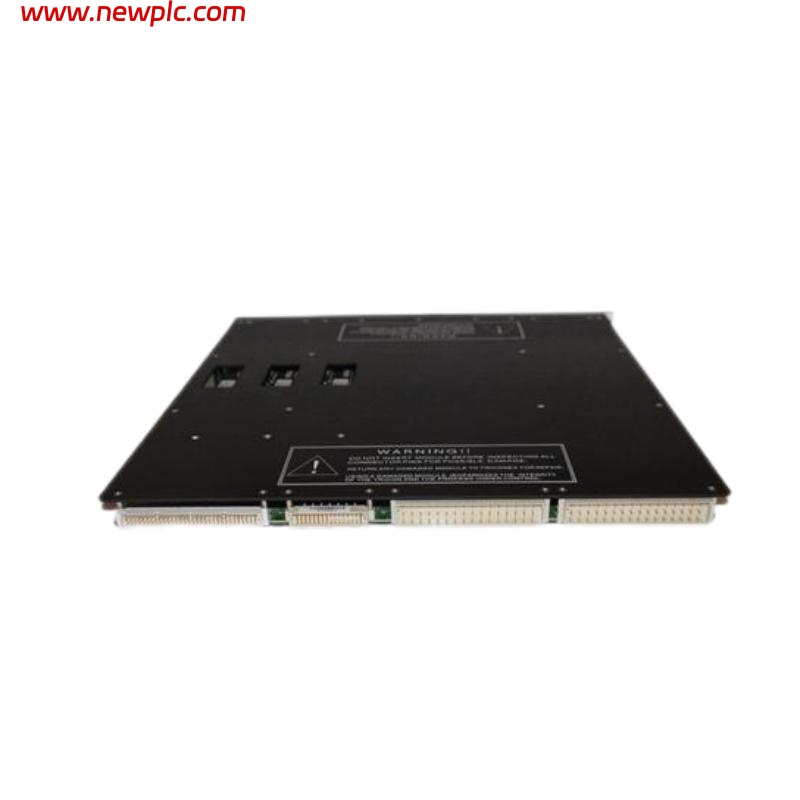

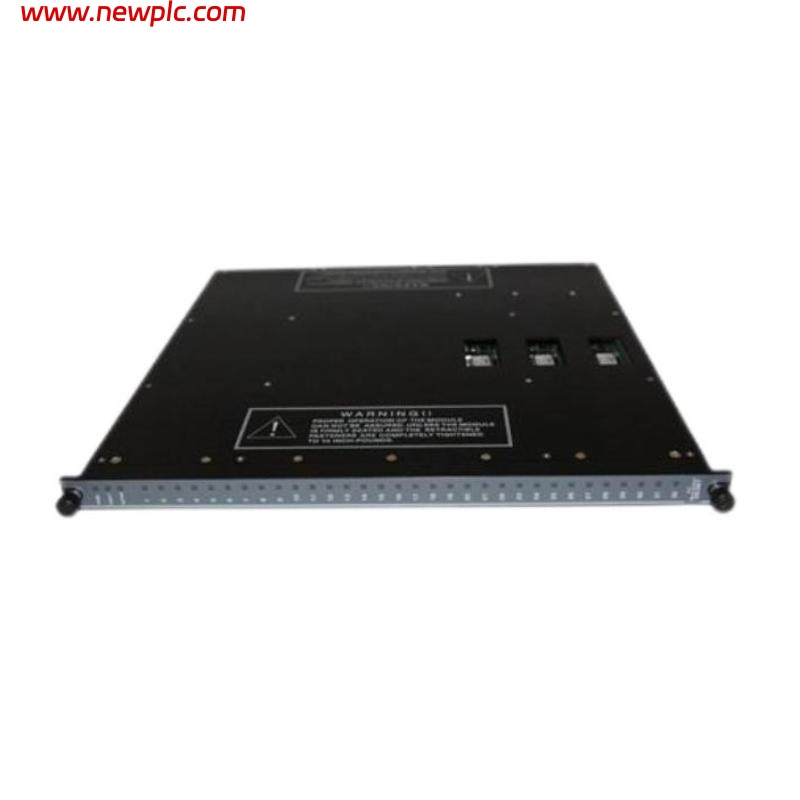

A1: The Triconex 3636A Relay Output Module is suited for non-critical points that require relay contacts, such as interfacing with annunciator panels.
Q2: What is the output contact type of this module?
A2: The output contacts are Normally Open (NO).
Q3: What is the maximum current load per point?
A3: Each output point can carry up to 2 A.
Q4: Does the module support hot-spare functionality?
A4: Yes, it supports hot-spare modules for online replacement.
Q5: Is an external termination panel required?
A5: Yes, an external termination panel (ETP) is required.
Q6: What diagnostic indicators are available on this module?
A6: Each point has PASS, FAULT, and ACTIVE status indicators.
Q7: Are fuses provided per output point?
A7: Yes, each output point is protected by a 2.5 A fast-acting fuse.
Q8: What are the dimensions and weight of the module?
A8: The module dimensions are 490 x 453 x 68 mm, and the weight is approximately 2.5 kg.
