Technical Specifications
| Parameter | Specification |
|---|---|

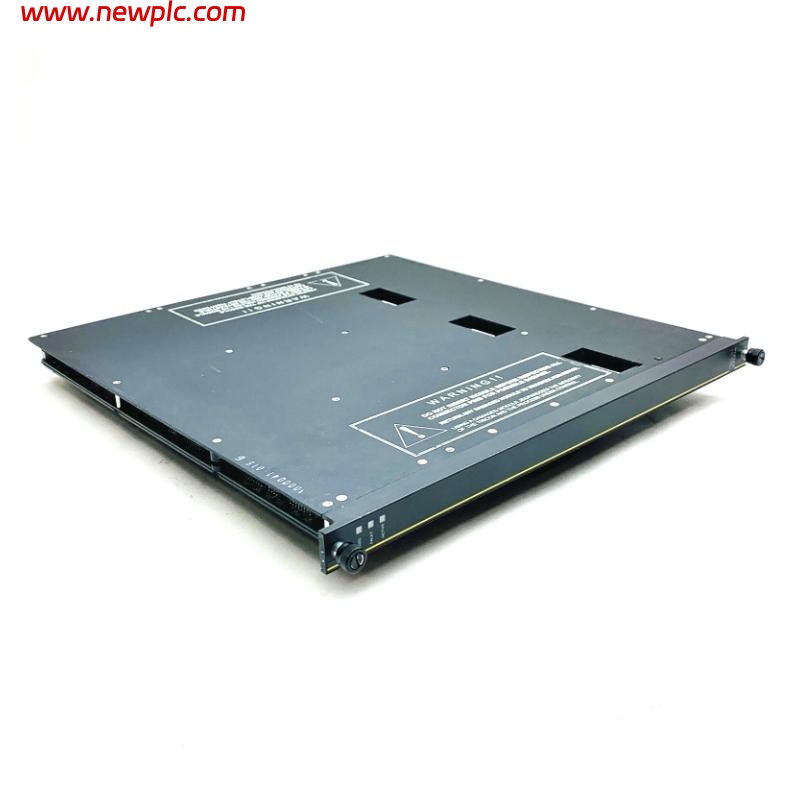

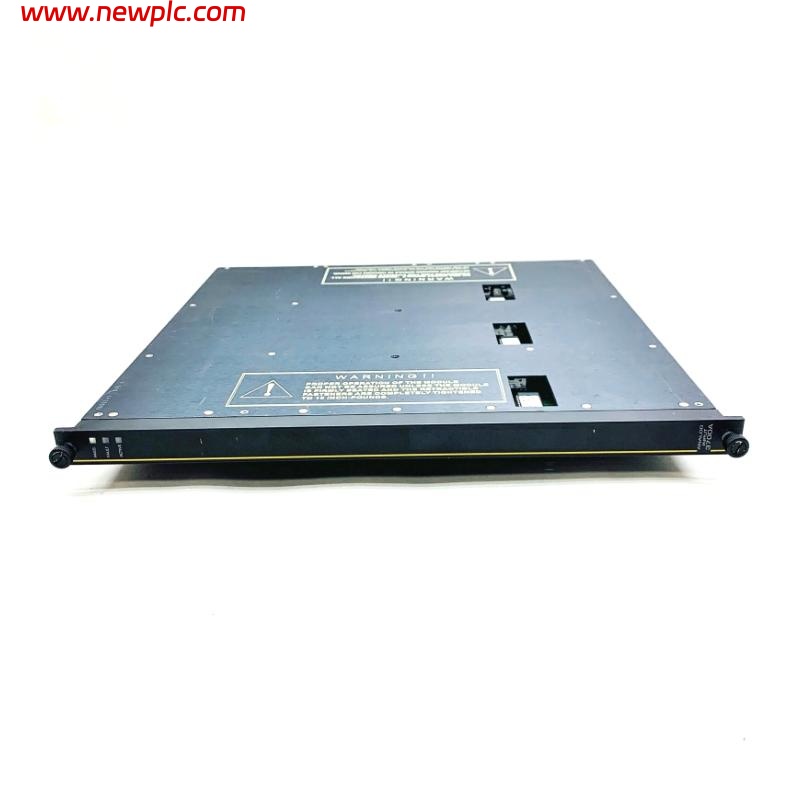

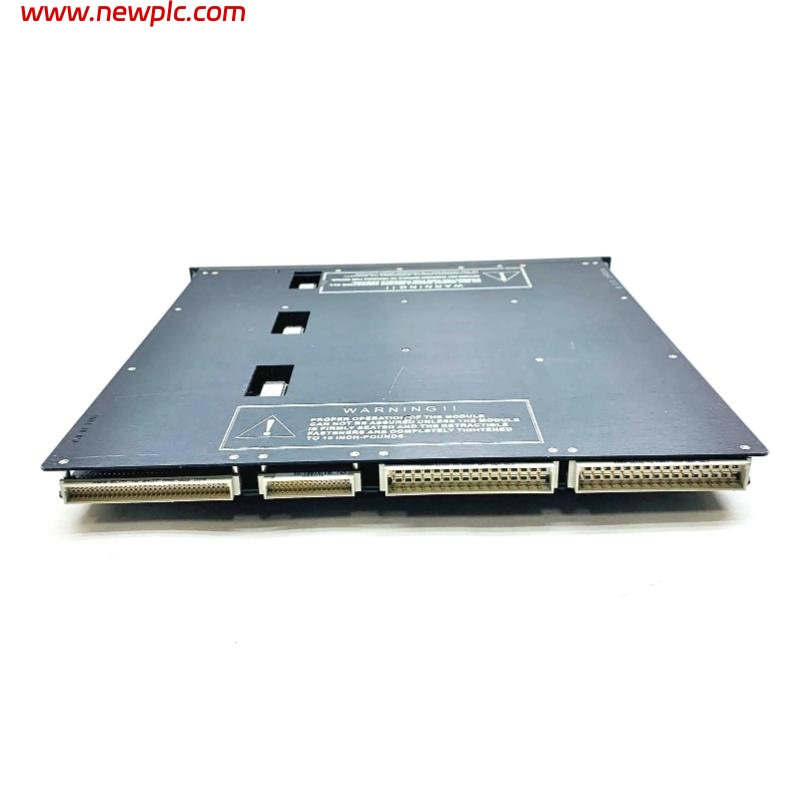

| Model | Triconex 3700A TMR Analog Input Module |
| Input Signal Type | 0–5 VDC Differential, DC Coupled |
| Number of Channels | 32 |
| Input Isolation | Yes, channel-to-channel isolation |
| Calibration | Automatic with internal reference voltages |
| Voting Method | Mid-value selection (in TMR mode) |
| Driving Method | Each channel has independent ADC |
| Dimensions | 203 x 114 x 38 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: How many analog input channels does the 3700A module support?
A1: It supports 32 differential analog input channels.
Q2: What is the input signal range of the 3700A module?
A2: The input signal range is 0–5 VDC.
Q3: What redundancy architecture does the module use?
A3: It uses Triple Modular Redundant (TMR) architecture to ensure high reliability and safety.
Q4: Does the module support automatic calibration?
A4: Yes, it automatically calibrates using internal reference voltages.
Q5: Is there isolation between the input channels?
A5: Yes, all channels are isolated from each other.
Q6: How are input values processed in TMR mode?
A6: The mid-value selection method is used to determine the most accurate value from the three channels.
Q7: What type of input signal is supported?
A7: Only 0–5 VDC differential voltage input signals are supported.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 203 x 114 x 38 mm, and the weight is approximately 1.2 kg.
