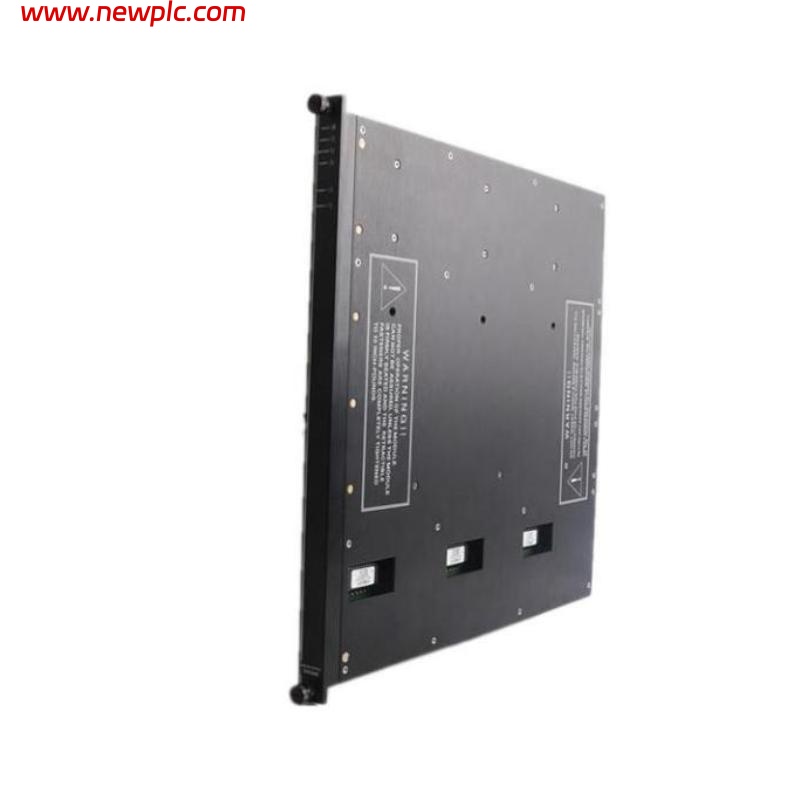

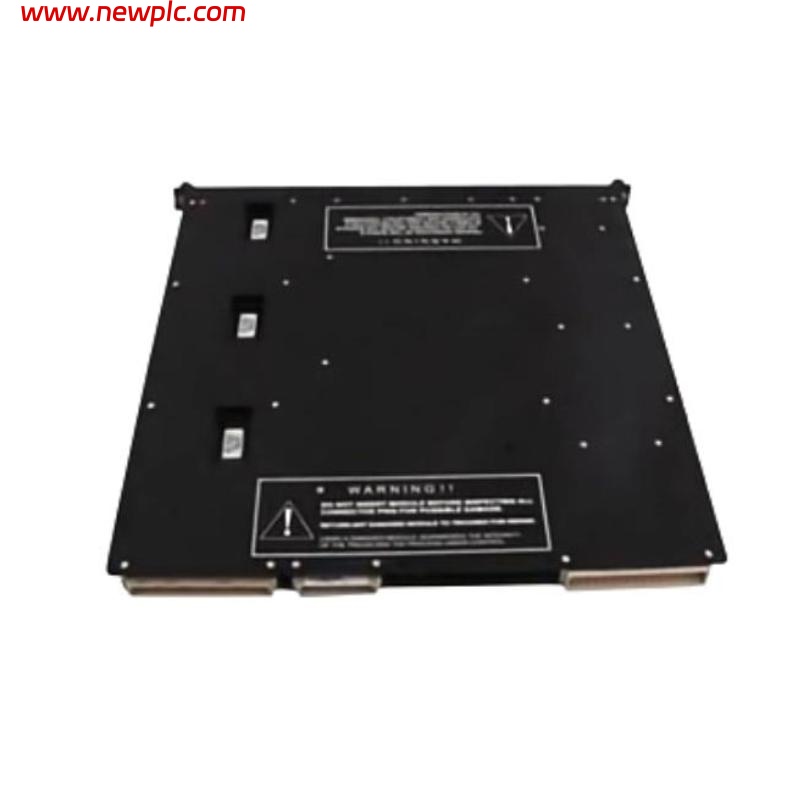

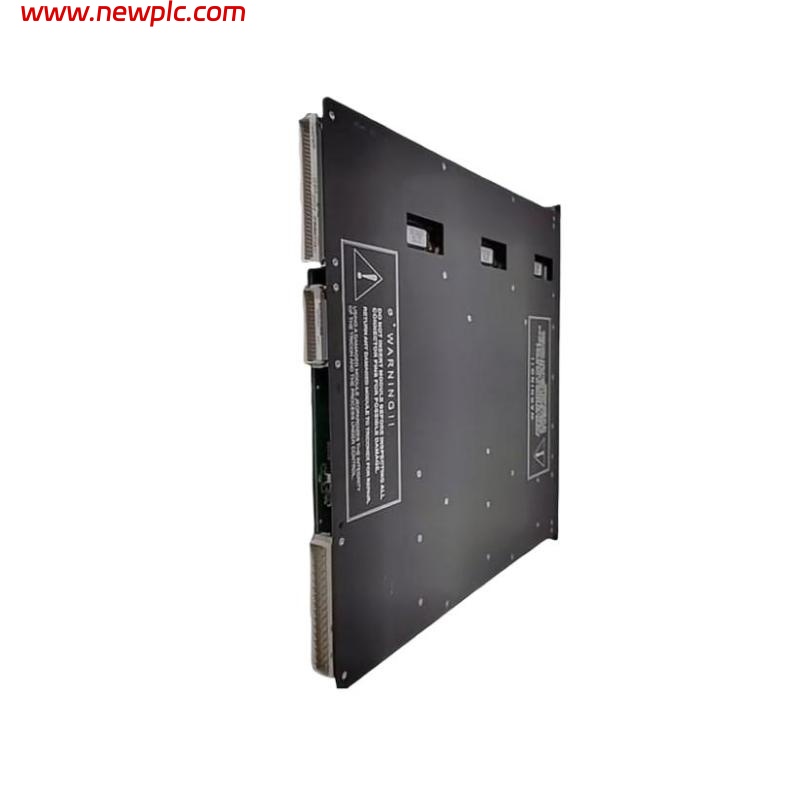

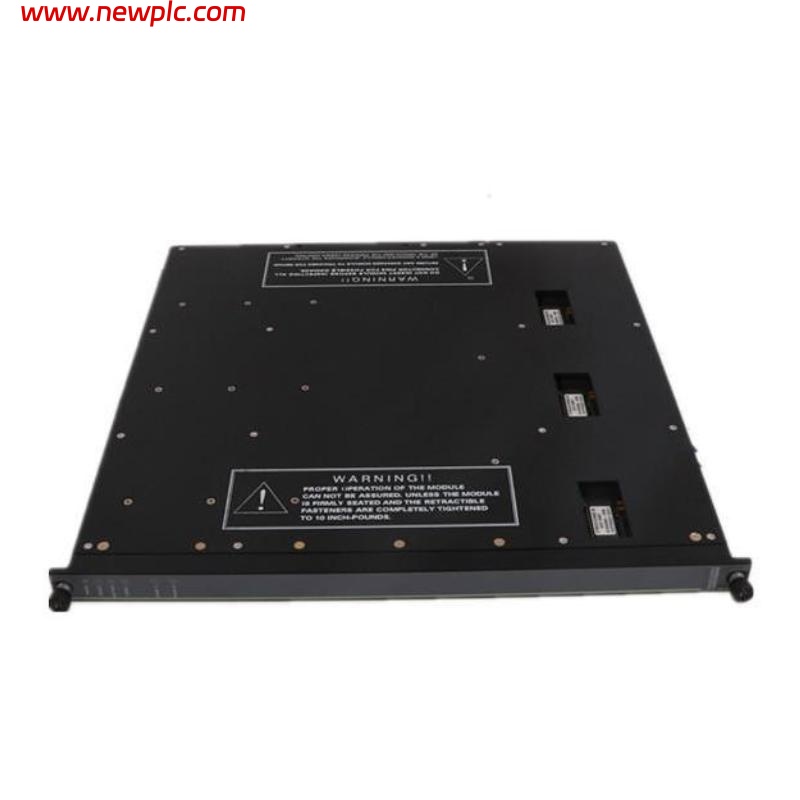

Triconex 3805EN Analog Output Module

FAQ

Q1: What type of analog output does the Triconex 3805EN module support?
A1: It supports standard 4–20 mA current output suitable for process control applications.

Q2: Can the 3805EN module be replaced while the system is running?
A2: Yes, it is hot-swappable and can be replaced under power without interrupting operations.

Q3: Does the module provide diagnostic capabilities?
A3: Yes, it includes current/voltage loopback diagnostics to monitor output status and detect faults.

Q4: Does the module support redundancy?
A4: Yes, it supports redundant loop power sources with individual indicators for each loop.

Q5: Are the output channels isolated?
A5: The module has 8 DC-coupled output channels sharing a common return path.

Q6: Is the module suitable for inductive loads?
A6: While the 3805HN version supports higher inductive loads, the 3805EN handles standard inductive loads.

Q7: Which Tricon systems are compatible with the 3805EN?
A7: It is compatible with both Tricon V9 and V10 platforms, though V10 typically uses the updated 3805HN.

Q8: What are the dimensions and weight of the module?
A8: The module measures 490 x 490 x 68 mm and weighs 2.27 kg.
