Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 4119A |
| Serial Ports | 4 ports RS-232, RS-422 or RS-485 |
| Parallel Ports | 1, Centronics, isolated |
| Port Isolation | 500 VDC |
| Protocol | TriStation, Modbus |
| Modbus Functions Supported | 01 — Read Coil Status, 02 — Read Input Status, 03 — Read Holding Registers, 04 — Read Input Registers, 05 — Modify Coil Status, 06 — Modify Register Content, 07 — Read Exception Status, 08 — Loopback Diagnostic Test, 15 — Force Multiple Coils, 16 — Preset Multiple Registers |
| Communication Speed | 1200, 2400, 9600, or 19,200 Baud |
| Diagnostic Indicators | PASS, FAULT, ACTIVE |
| TX (Transmit) | 1 per port |
| RX (Receive) | 1 per port |
| Dimensions | 114 x 89 x 51 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What communication protocols does the Triconex 4119A support?
A1: The Triconex 4119A supports the TriStation and Modbus communication protocols.
Q2: How many serial ports are available on the 4119A module?
A2: The 4119A module has 4 serial ports which support RS-232, RS-422, or RS-485.
Q3: What is the maximum baud rate supported by the 4119A module?
A3: The 4119A module supports a maximum baud rate of 19,200.
Q4: What type of isolation does the 4119A provide?
A4: The module provides 500 VDC isolation for the serial and parallel ports.
Q5: Can the 4119A module operate with multiple Modbus masters?
A5: Yes, the 4119A can support up to seven Modbus masters per Tricon chassis.

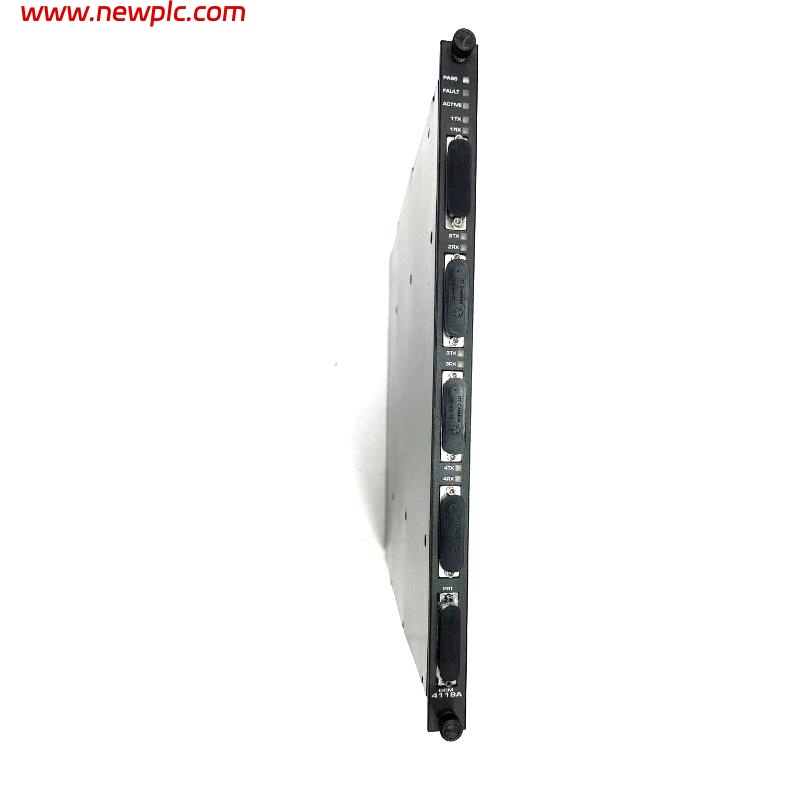

Q6: What diagnostic indicators are available on the 4119A?
A6: The diagnostic indicators available on the 4119A include PASS, FAULT, and ACTIVE.
Q7: What are the dimensions and weight of the 4119A module?
A7: The 4119A module has dimensions of 114 x 89 x 51 mm and weighs 0.4 kg.
Q8: Does the 4119A support parallel communication?
A8: Yes, the 4119A includes one Centronics-compatible parallel port for communication.
