Technical Specifications
| Parameter | Description |
|---|---|

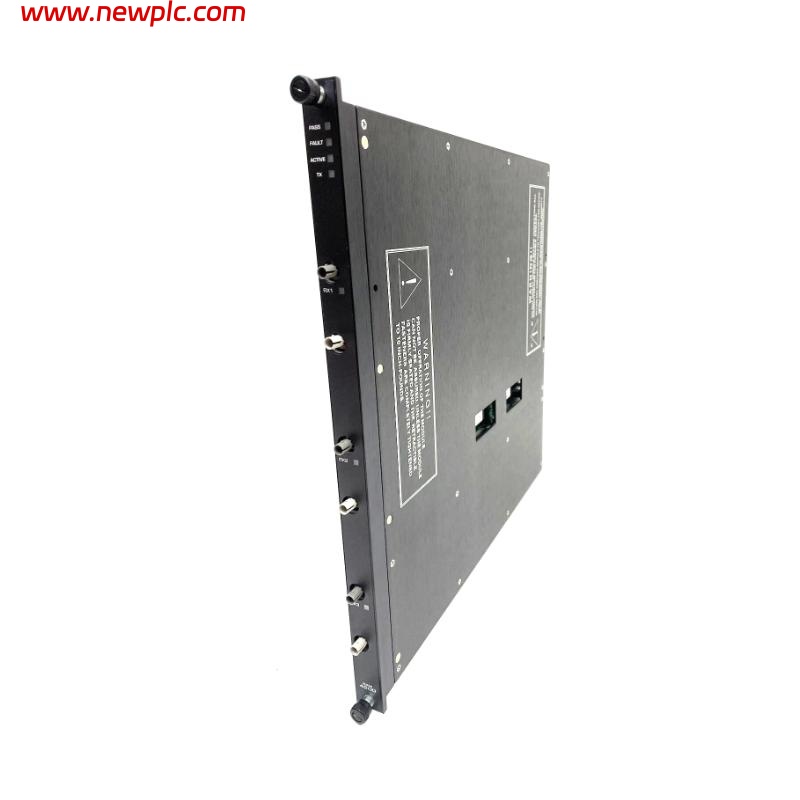

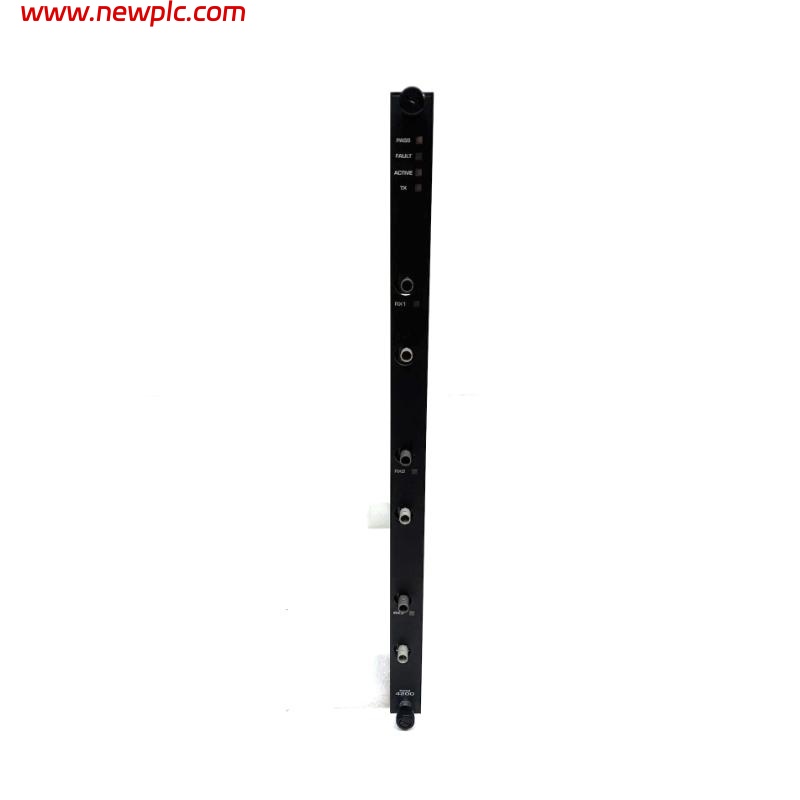

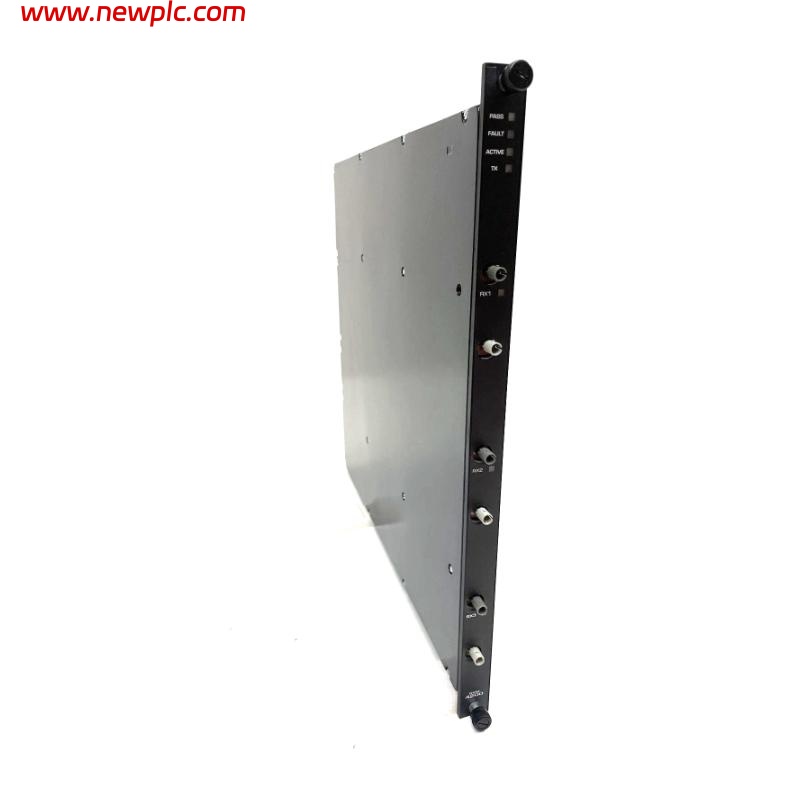

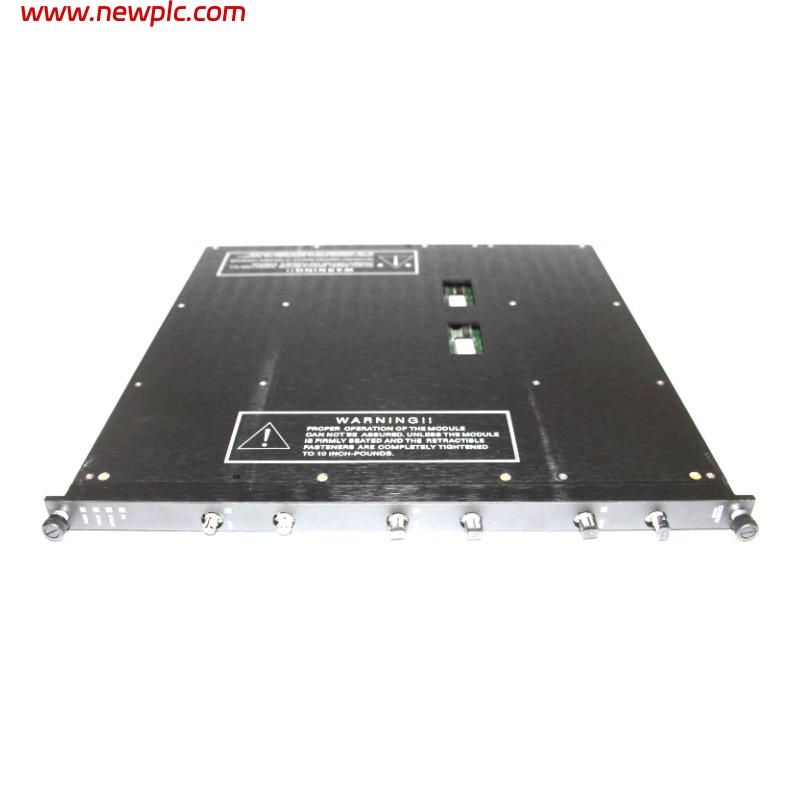

| Product Name | Triconex 4200 Remote Extender Module |
| Module Type | Primary RXM, Multi-Mode Fiber Optics, Set of 3 Modules |
| Application | Remote I/O operation up to 7.5 miles (12 kilometers) |
| Communication Medium | Fiber-optic, multi-mode |
| Number of Modules | 3 (Channels A, B, and C) |
| Compatibility | Tricon main chassis and RXM chassis |
| Use Case | Extends Tricon system I/O capabilities to remote locations |
| EMI/ESD Immunity | High immunity to electrostatic and electromagnetic interference |
| Mounting | Installed in RXM chassis in place of main processor modules |
| Power Requirements | Supplied via RXM chassis power modules |
| Cooling Method | Forced air via chassis ventilation |
| Chassis Slot Requirement | Occupies 3 slots (one for each channel A, B, and C) |
| Distance Supported | Up to 7.5 miles (12 kilometers) |
| Connection Type | 6 Fiber-optic cables (2 per channel: transmit and receive) |
| Dimensions (W x H x D) | 326 x 260 x 50 mm |
| Weight | 5.45 kg |
FAQ
FAQ
Q1: What is the maximum distance the Triconex 4200 module can support?
A1: It supports remote I/O operation up to 7.5 miles (12 kilometers).
Q2: What type of communication medium does the 4200 module use?
A2: It uses multi-mode fiber optic cables, with two fibers per channel (transmit and receive).
Q3: Which systems is the 4200 module compatible with?
A3: It is compatible with Tricon main and RXM chassis systems.
Q4: How many slots are required for installation?
A4: The module occupies three slots, one for each channel (A, B, and C).
Q5: Is the module hot-swappable?
A5: No, the module is not hot-swappable and requires power-down for replacement or installation.
Q6: Does it have protection against EMI/ESD?
A6: Yes, it has high resistance to electrostatic discharge and electromagnetic interference.
Q7: Does the module require a dedicated power supply?
A7: No, it draws power from the RXM chassis power modules.
Q8: What types of I/O modules can it work with?
A8: It supports all Tricon-compatible digital and analog I/O modules for remote applications.
