Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 4354 |

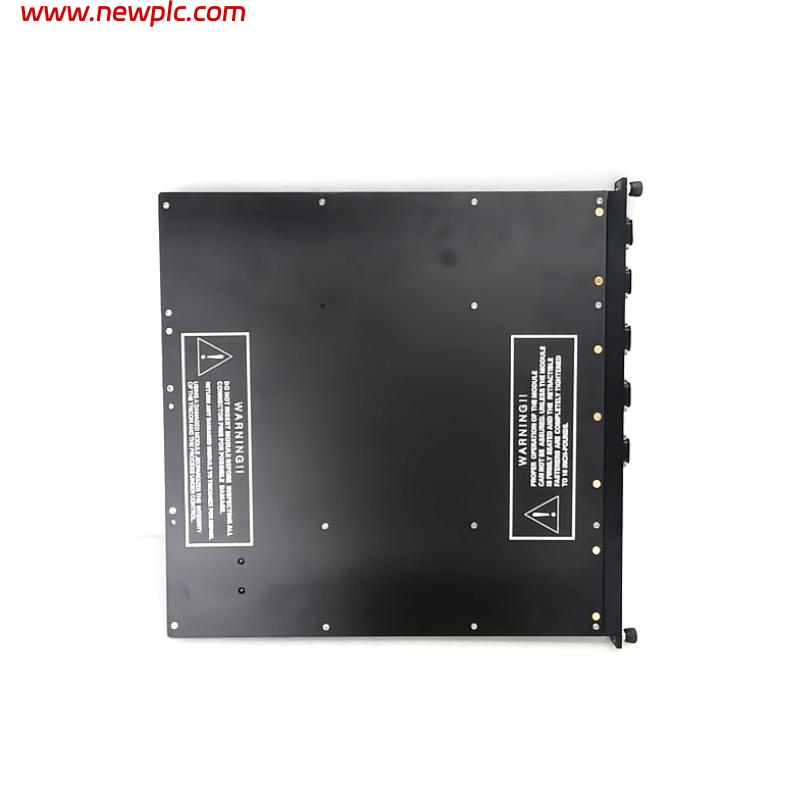

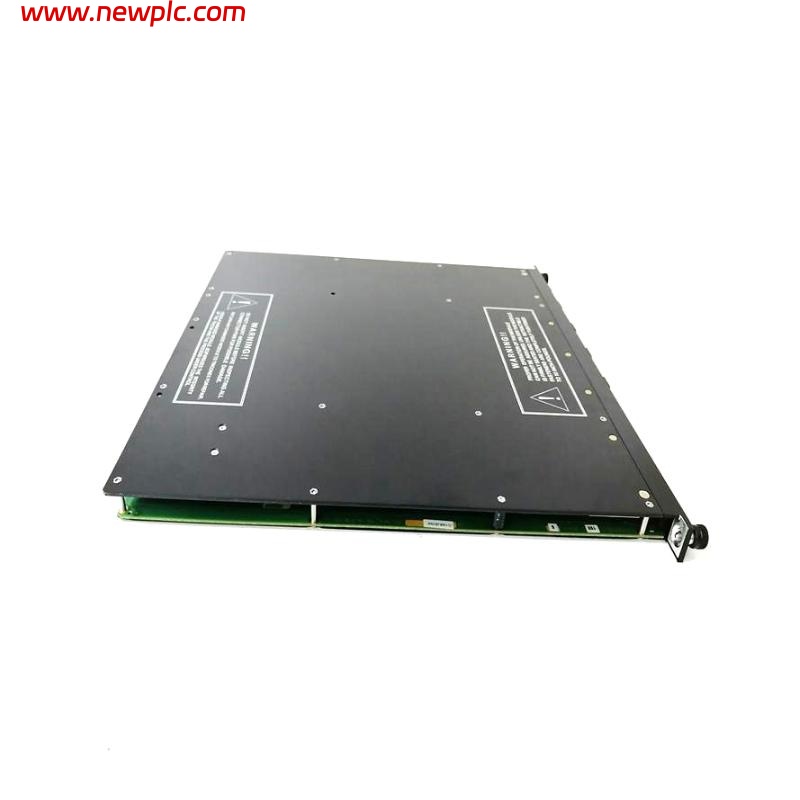

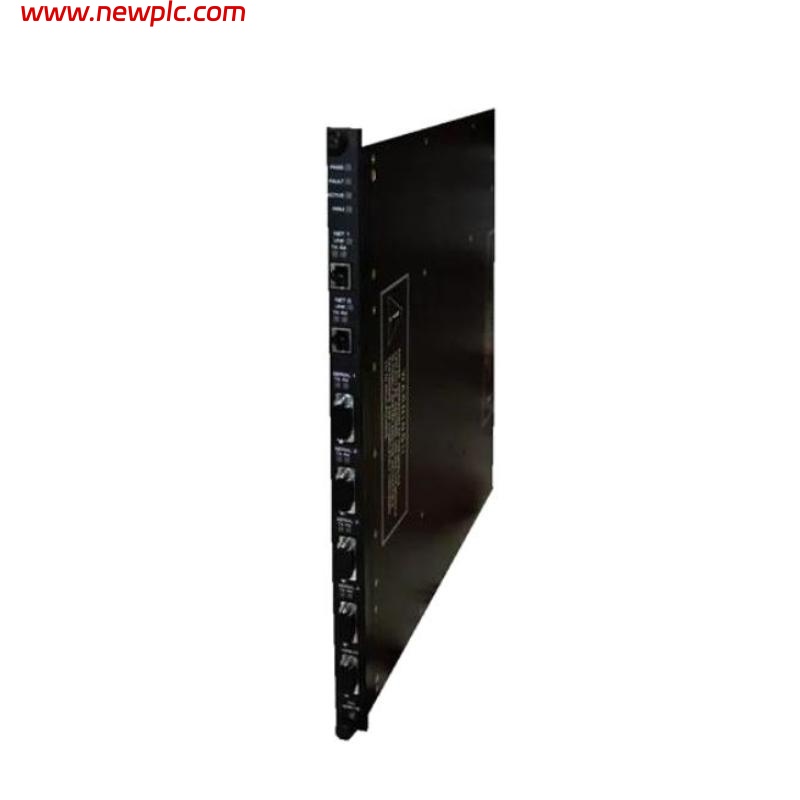

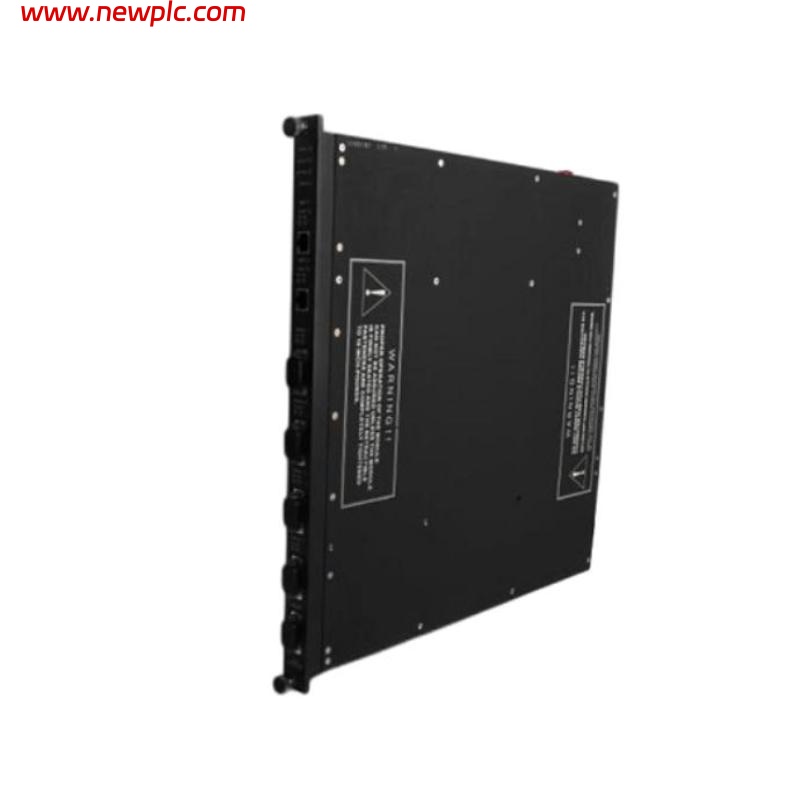

| Description | Triconex Communication Module (TCM) – Enhanced network and serial communication |
| Communication Interfaces | 4 x Serial Ports (RS-232/RS-485) + 2 x Ethernet (802.3) + 1 x Debug Port |
| Protocol Support | Modbus (Master/Slave), TriStation, OPC, Peer-to-Peer, Printer, Ethernet |
| Typical Use | Facilitates communication between Tricon controller and external systems |
| Number of Modules Supported | Up to 4 TCMs per controller (2 logical slots, dual modules per slot) |
| Installation Location | Main chassis or Chassis 2 |
| Redundancy | Yes (via dual-slot installation per logical slot) |
| Power Consumption | 7 W |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock Resistance | 15 G, 6–11 ms duration per axis |
| Vibration Resistance | 2 G, 10–150 Hz |
| EMC Compliance | IEC 61000-4, CISPR 16, CISPR 11 |
| Certification | CE, TÜV, FM, CSA, ATEX (Zone 2), NRC |
| Dimensions (W x H x D) | 200 x 160 x 40 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What is the main function of the Triconex 4354 module?
A1: The 4354 Communication Module enables a Tricon controller to interface with Modbus devices, other Triconex systems, TriStation software, printers, and external Ethernet networks.
Q2: How many communication ports does the 4354 module have?
A2: It features 4 serial ports (RS-232/RS-485), 2 Ethernet ports, and 1 debug port.
Q3: Can the 4354 module support redundant configurations?
A3: Yes, it supports dual-module configurations within the same logical slot for redundancy.
Q4: Which communication protocols are supported by the 4354?
A4: The module supports Modbus (Master/Slave), TriStation, OPC, Ethernet protocols, and peer-to-peer networking.
Q5: What chassis slots are recommended for installing the 4354?
A5: It can be installed in the main chassis or Chassis 2, occupying one or two logical slots.
Q6: What is the power requirement of the 4354 module?
A6: The 4354 consumes approximately 7 watts of power.
Q7: What are the environmental operating conditions for the 4354?
A7: The module operates in temperatures from 0°C to 60°C and in non-condensing humidity up to 95%.
Q8: Is the Triconex 4354 compliant with global industrial standards?
A8: Yes, it complies with CE, TÜV, FM, CSA, ATEX (Zone 2), and NRC safety and EMC standards.
