Technical Specifications
| Parameter | Specification |
|---|---|

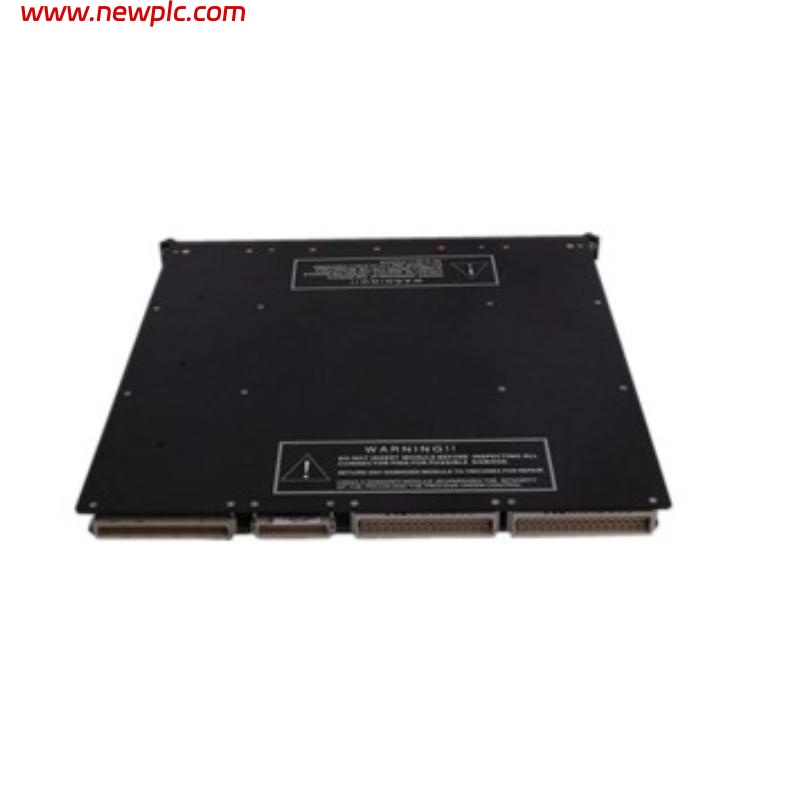

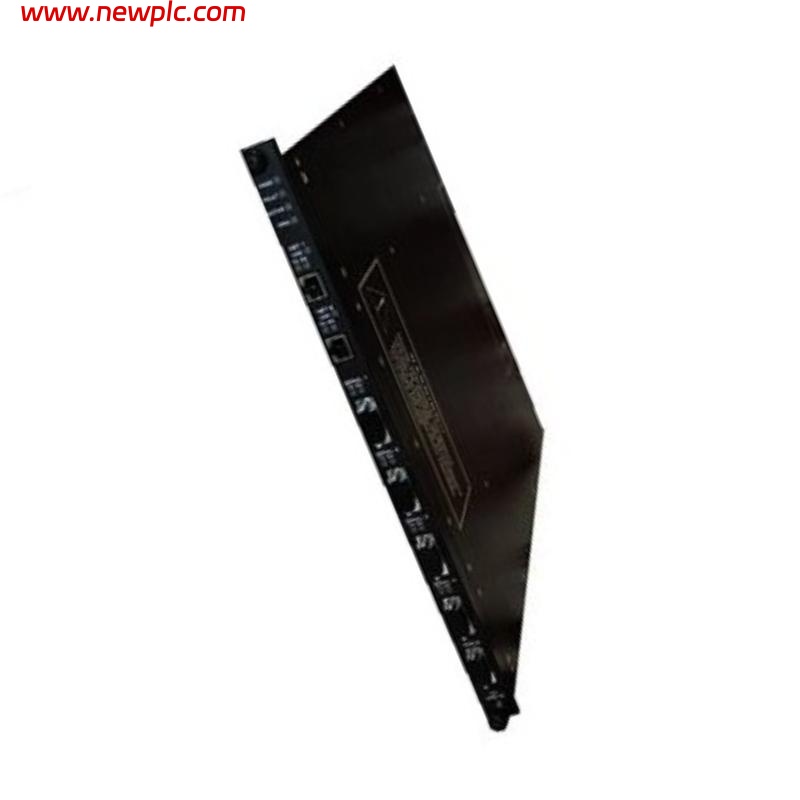

| Model | Triconex 9802 |
| Type | Digital Input Module |
| Input Channels | 16 discrete digital inputs |
| Input Voltage Range | 24 V DC nominal (18–32 V DC operating range) |
| Input Current | Approx. 6 mA per channel |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Response Time | < 10 ms |
| Power Supply Voltage | Supplied via Triconex backplane |
| Power Consumption | Approx. 4 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 132 x 205 x 48 mm |
| Weight | 2.267 kg |
| Mounting | Rack-mounted on Triconex chassis |
| Application | Safety and control system digital input monitoring |
FAQ
FAQ
1. What is the function of the Triconex 9802 module?
It provides 16 discrete digital inputs for safety and control monitoring.
2. How many digital input channels does it have?
It supports 16 discrete digital input channels.
3. What is the input voltage range?
Nominal 24 V DC, with an operating range of 18–32 V DC.
4. What is the typical input current per channel?
Approximately 6 mA per channel.
5. Does the module provide isolation?
Yes, channel-to-channel and channel-to-ground isolation are provided.
6. What is the response time?
Less than 10 milliseconds.
7. What are the operating temperature limits?
0 °C to +60 °C.
8. Where is this module typically used?
Used in Triconex safety and control systems for monitoring discrete digital inputs.
