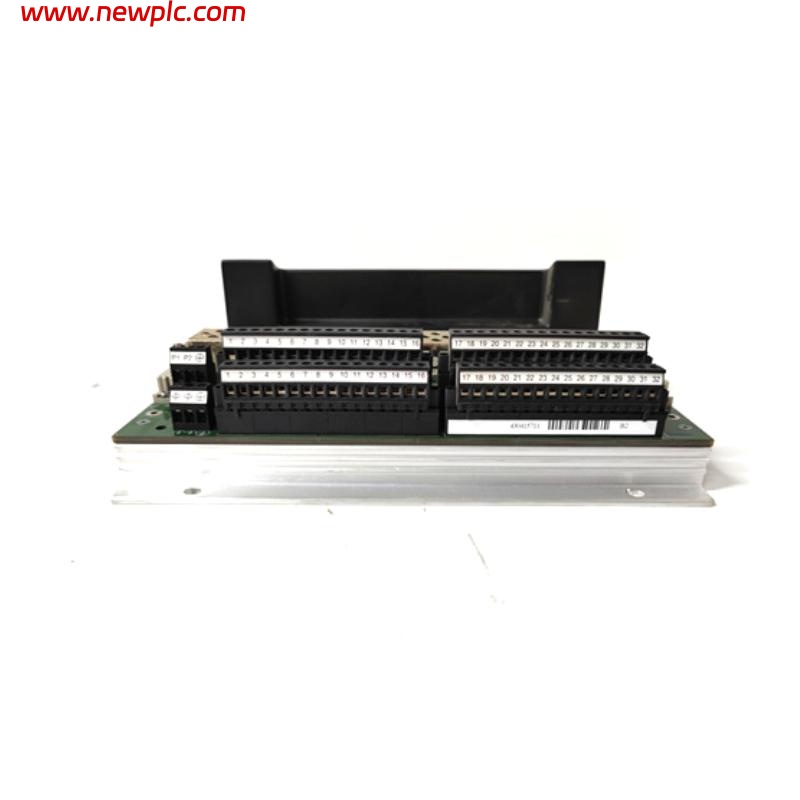

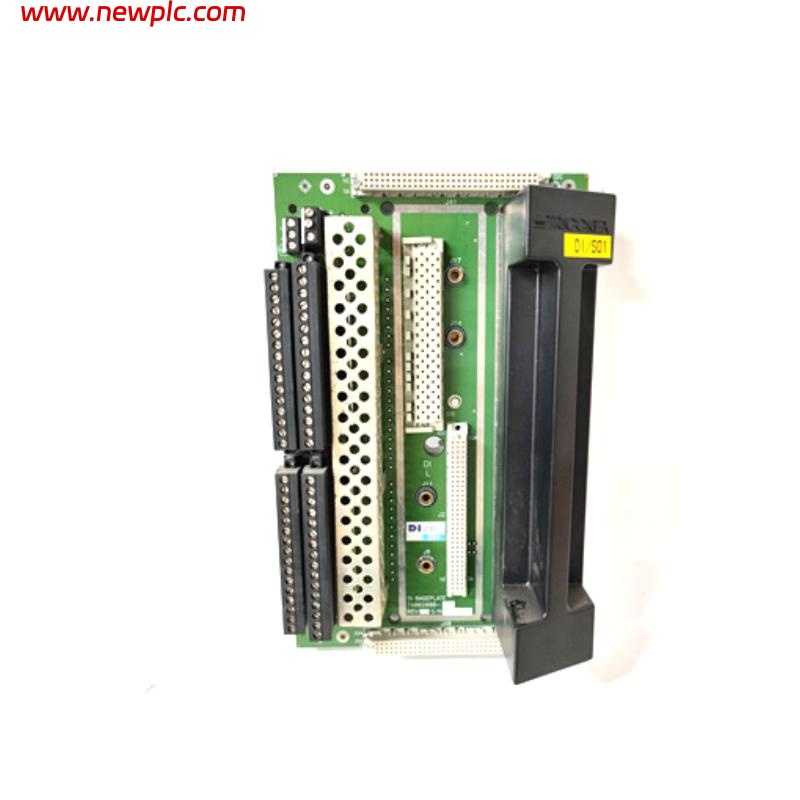

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DI2301 |
| Part Number | 7400208B-020 |
| Operating Voltage | 24V DC |
| Input Type | Digital input |
| Mounting | DIN rail |
| Alarm Contacts | 2, redundant pair, isolated |
| Rated Voltage | ±24 V AC/DC |
| Operational Voltage Range | 0–30 V DC |
| Maximum Switch Voltage | 33 V |
| Maximum Switching Power | 15 W (resistive) |
| Maximum Off-State Leakage | <50 µA |
| Maximum Nominal Current | 0.5 A per contact (continuous), 0.7 A per contact for 100 ms |
| Voltage Drop at Baseplate | <0.25 V DC at 0.5 A |
| Fuses | 1 A fast-acting fuses mounted on baseplate |
| Blown-Fuse Indicator | Present on baseplate |
| Dimensions | 182 x 267 x 45 mm |
| Weight | 1.5 kg |
FAQ
FAQ
-
Q1: What types of field devices can be connected to the DI2301 digital input baseplate?
A: The DI2301 can interface with various field devices such as limit switches, push buttons, proximity sensors, and other discrete digital signal sources. -
Q2: How does the DI2301 handle redundancy in alarm contacts?
A: The module has two isolated and redundant alarm contact pairs, ensuring high reliability for safety-critical signal processing. -
Q3: What is the maximum voltage and current the DI2301 can safely handle?
A: The maximum switch voltage is 33 V, and the maximum nominal current is 0.5 A per contact continuously, with short-term tolerance up to 0.7 A for 100 ms. -
Q4: How does the DI2301 indicate a blown fuse?
A: Each fuse is equipped with a built-in indicator on the baseplate that provides visual confirmation of a blown fuse condition. -
Q5: What is the operational voltage range for safe functioning of the DI2301?
A: The operational voltage range is from 0 to 30 V DC, allowing for minor fluctuations without affecting signal integrity. -
Q6: What is the voltage drop across the baseplate under nominal load conditions?
A: The voltage drop is less than 0.25 V DC at 0.5 A per contact, ensuring minimal signal degradation. -
Q7: Can the DI2301 be mounted in standard industrial racks?
A: Yes, it is designed for DIN rail mounting, compatible with standard industrial control panels. -
Q8: What safety features does the DI2301 offer for digital input integration?
A: The module includes isolated and redundant alarm contacts, fast-acting fuses, blown-fuse indicators, and wide voltage tolerance to ensure safe and reliable integration into safety instrumented systems.
