Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |

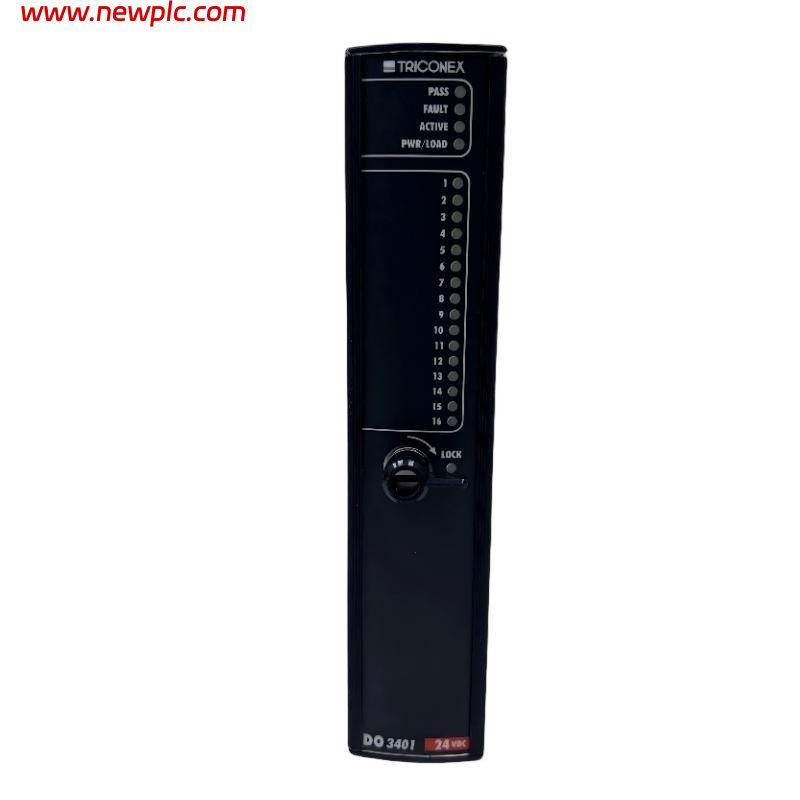

| Product Model | DO3401 |
| Product Type | Digital Output Module |
| Series | Trident Safety Instrumented System (SIS) |
| Function | Provides reliable digital output control signals for safety-critical process applications |
| Output Type | Solid-state Digital Output |
| Number of Channels | 16 Channels |
| Output Voltage | 24 VDC Nominal |
| Operating Voltage Range | 15–30 VDC |
| Maximum Output Voltage | 33 VDC |
| Output Current | 3 A typical, self-limiting (switching current up to 4.8 A) |
| Output Configuration | 16 commoned output points |
| Architecture | Triple Modular Redundant (TMR) |
| Diagnostic Function | Output voter diagnostics, short circuit detection, stuck-on/stuck-off detection, field power monitoring |
| Isolation | Functional-to-protective earth isolation ≥500 VDC; functional-to-logic isolation ≥800 VDC |
| Communication Interface | Tricon proprietary redundant I/O bus |
| Hot Swap Capability | Supported |
| LED Indicators | Power, Fault, Active, Pass status indicators |
| Compatible Systems | Triconex Trident Safety Instrumented System |
| Application | Emergency shutdown systems (ESD), fire & gas systems, turbine control, process safety applications |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Mounting Type | Trident chassis rack mounting |
| Dimensions | Approx. 175 × 100 × 220 mm |
| Weight | Approx. 1.4 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Triconex DO3401 used for?
The DO3401 is used to provide digital output signals from a Triconex safety controller to field devices such as valves, actuators, shutdown devices, and other safety-related equipment.
Q2: What type of module is the DO3401?
The DO3401 is a TMR (Triple Modular Redundant) Digital Output Module designed for Triconex Trident safety instrumented systems. It provides 16 digital output channels with high reliability and fault tolerance.
Q3: How many output channels does the DO3401 provide?
The DO3401 provides 16 digital output channels with a nominal output voltage of 24 VDC, suitable for controlling industrial field devices.
Q4: What are the dimensions and weight of the DO3401?
The module has approximate dimensions of 175 × 100 × 220 mm and weighs approximately 1.4 kg.
Q5: What diagnostic functions does the DO3401 provide?
The module provides output diagnostics including short circuit detection, loss of field power monitoring, output state verification, and detection of stuck-on or stuck-off conditions to improve system safety.
Q6: Is the DO3401 suitable for safety-critical applications?
Yes. The DO3401 is specifically designed for safety instrumented systems used in industries such as oil & gas, petrochemical, chemical processing, and power generation where high availability is required.
Q7: What should be checked before installing the DO3401?
Before installation, verify the Trident chassis compatibility, module configuration, field wiring, 24 VDC power supply, output load requirements, and safety system configuration.
Q8: What are the advantages of the Triconex DO3401?
The DO3401 provides high reliability through TMR architecture, fast fault detection, redundant signal processing, hot-swappable installation, and stable digital output control for critical industrial safety applications.
