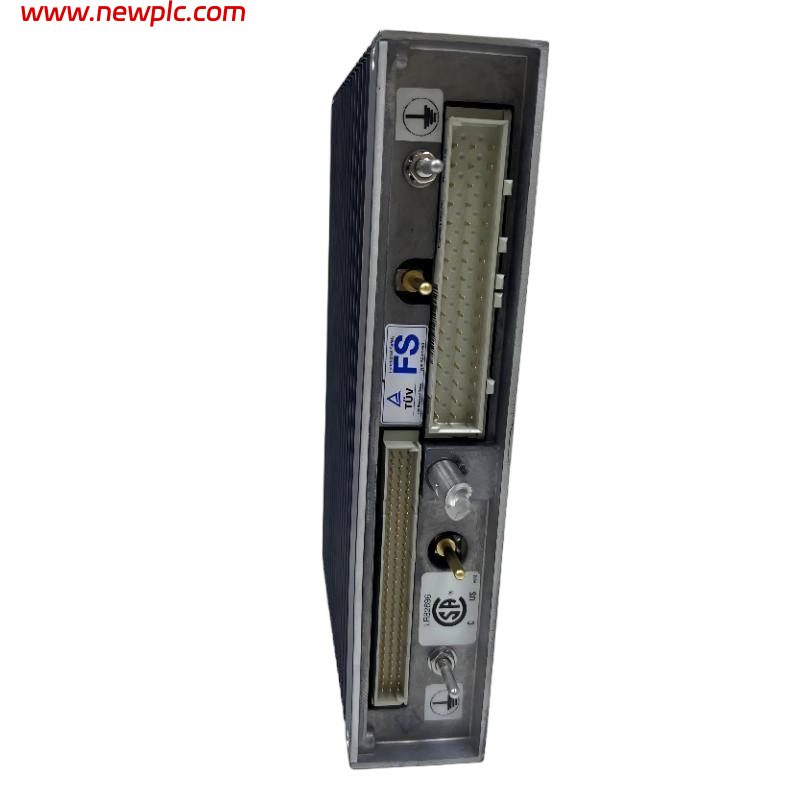

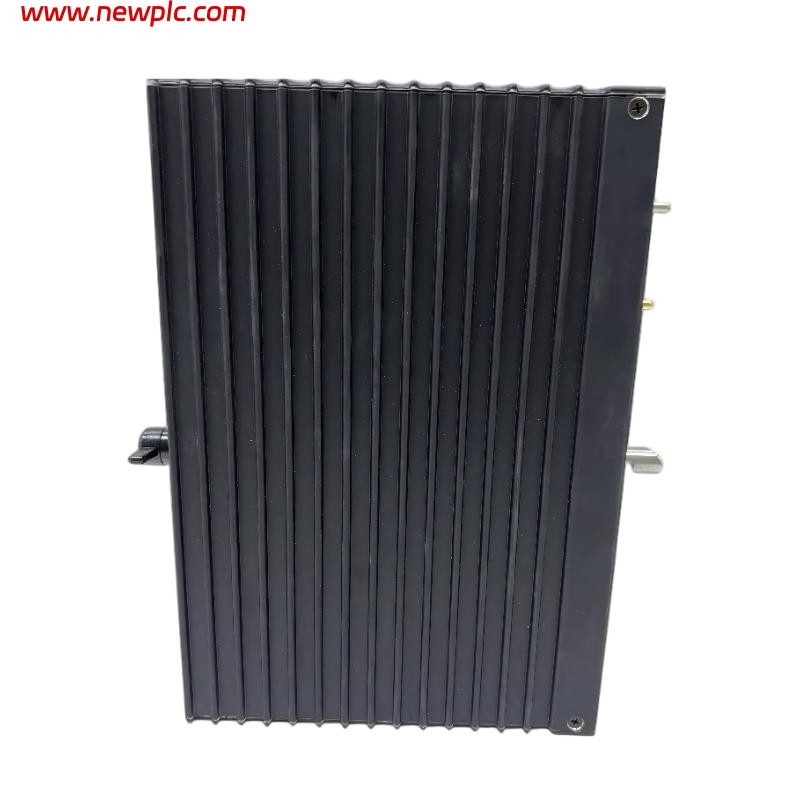

Triconex MP3101 Main Processor Module

FAQ

Q1: What is the Triconex MP3101 used for?
The MP3101 is the main processor module of the Trident safety controller. It executes safety logic programs, manages I/O processing, handles communication functions, and controls system diagnostics.

Q2: What type of module is the MP3101?
The MP3101 is a TMR Main Processor Module used in Triconex Trident safety systems. It is designed for high-availability and safety-critical industrial applications.

Q3: What processor does the MP3101 use?
The standard MP3101 uses a Motorola MPC860 32-bit processor running at 50 MHz, with dedicated memory resources for application execution and diagnostics.

Q4: What are the dimensions and weight of the MP3101?
The module has approximate dimensions of 220 × 44 × 169 mm and weighs approximately 1.5 kg.

Q5: What communication interfaces are available on the MP3101?
The MP3101 provides Ethernet communication through a TriStation port, RS-232/RS-485 Modbus communication, and diagnostic communication interfaces for system maintenance.

Q6: Does the MP3101 support redundancy?
Yes. The MP3101 uses a Triple Modular Redundant (TMR) design with three independent processing channels. The voting mechanism improves system reliability and allows continued operation during certain hardware failures.

Q7: What should be checked before installing the MP3101?
Before installation, verify Trident chassis compatibility, firmware version, power supply requirements, communication configuration, and the condition of the backup battery.

Q8: What are the advantages of the Triconex MP3101?
The MP3101 provides high reliability, fault-tolerant processing, advanced diagnostics, redundant communication, hot-swappable maintenance capability, and stable performance for safety-critical industrial control applications.
