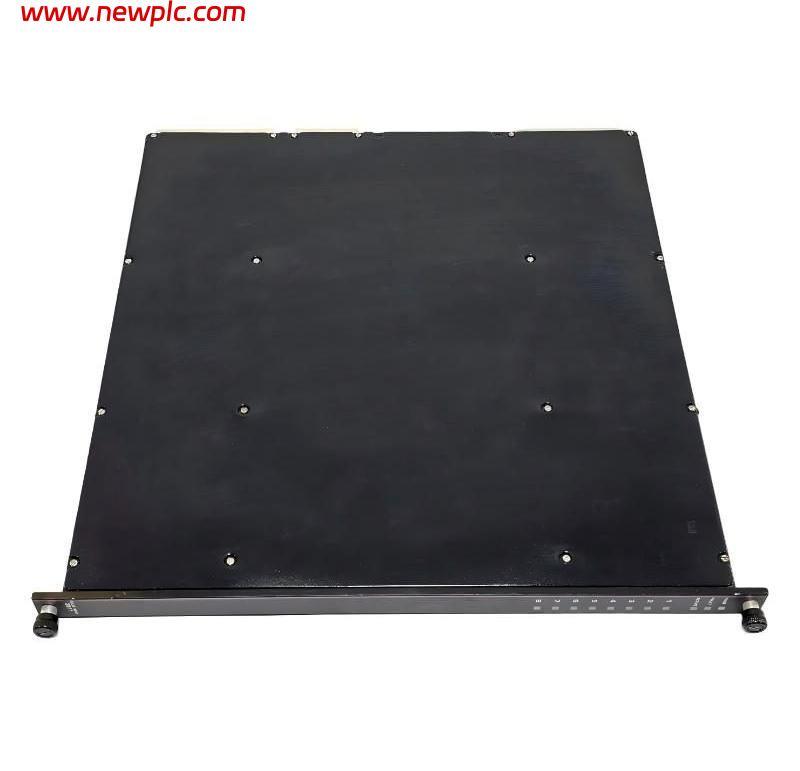

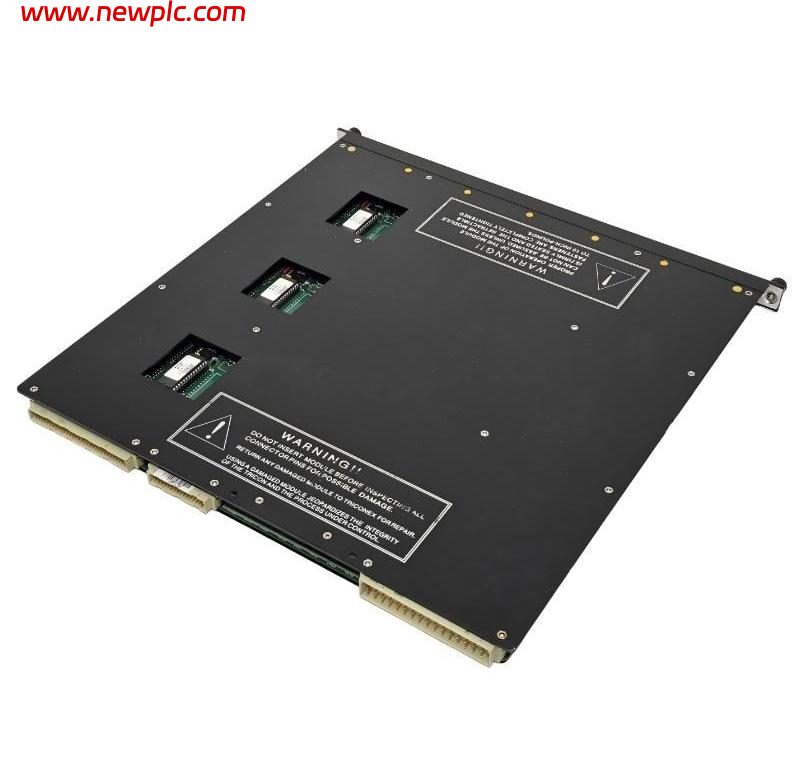

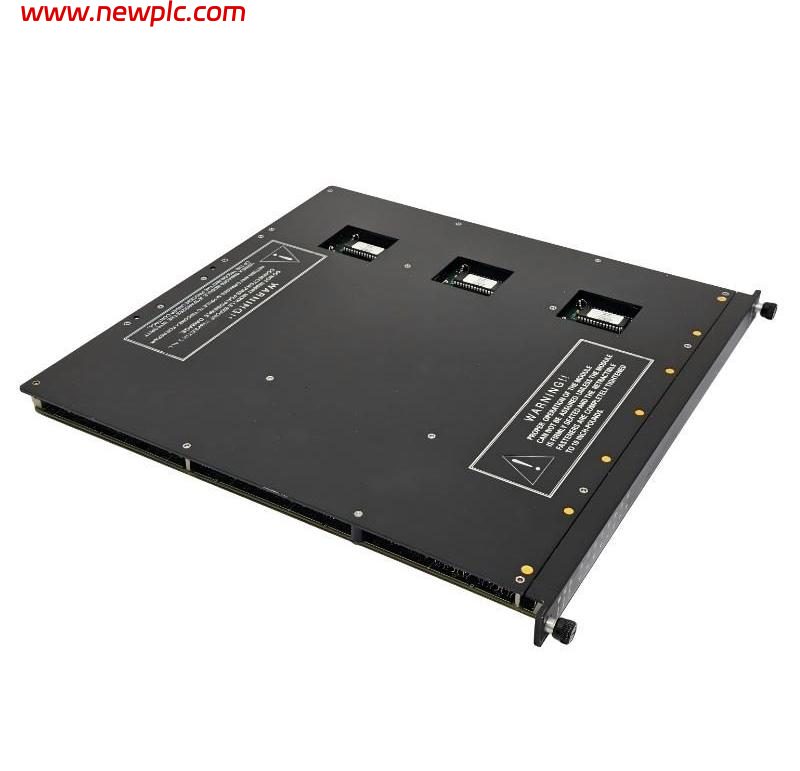

Triconex PI3382 Pulse Input Module

FAQ

Q1: What is the Triconex PI3382 used for?
A: The PI3382 is a Pulse Input Module used to receive and process pulse or frequency signals from field devices in a Triconex safety instrumented system.

Q2: What type of signals can the PI3382 handle?
A: The PI3382 is designed for pulse and frequency signals, making it suitable for applications where process information is represented by discrete pulses or pulse frequency.

Q3: What applications can use the PI3382?
A: Typical applications include monitoring rotational speed, flow measurement, frequency and other pulse-generating field devices.

Q4: Which Triconex system is the PI3382 designed for?
A: The PI3382 is designed for use with the Triconex Tricon safety system and is installed as part of the system’s modular I/O architecture.

Q5: Is the PI3382 an analog input module?
A: No. The PI3382 is specifically a pulse input module. It is intended for pulse/frequency signals rather than conventional 4–20 mA analog signals.

Q6: Where is the PI3382 installed?
A: The module is installed in the appropriate Tricon chassis, where it interfaces with field pulse signals and communicates the processed input information to the Tricon controller.

Q7: What are the dimensions and weight of the PI3382?
A: The PI3382 measures approximately 230 × 50 × 115 mm and weighs approximately 0.5 kg.

Q8: Where is the Triconex PI3382 manufactured?
A: The stated country of origin for the PI3382 is the USA.
