Technical Specifications
| Parameter | Specification |
|---|---|

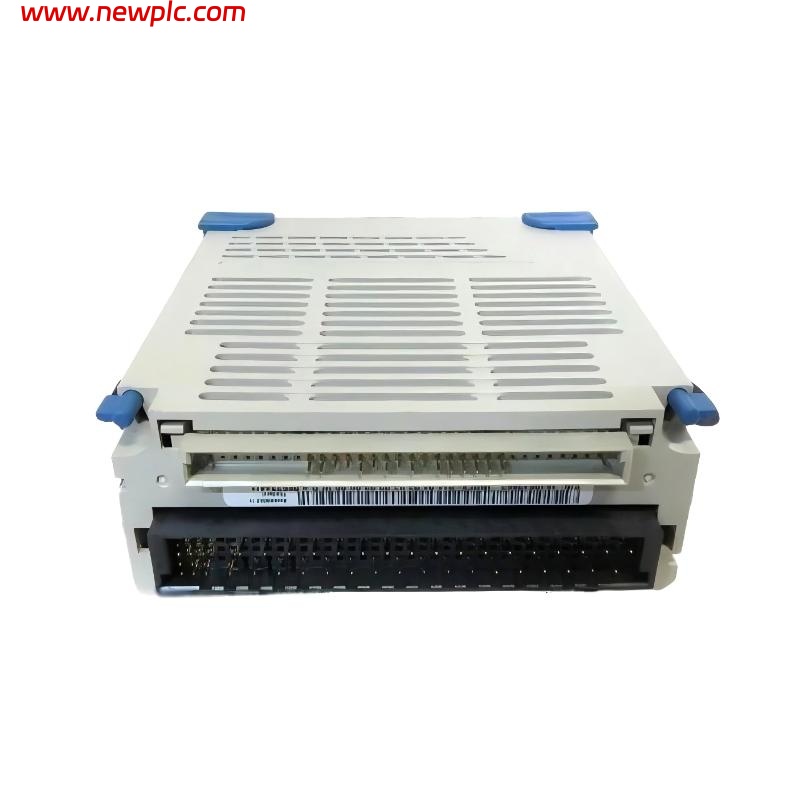

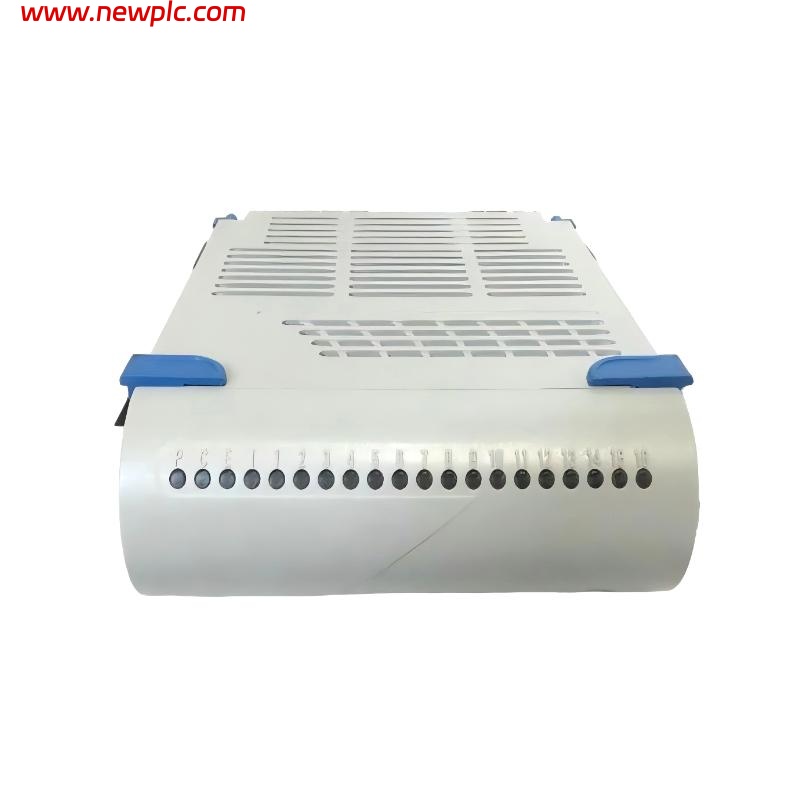

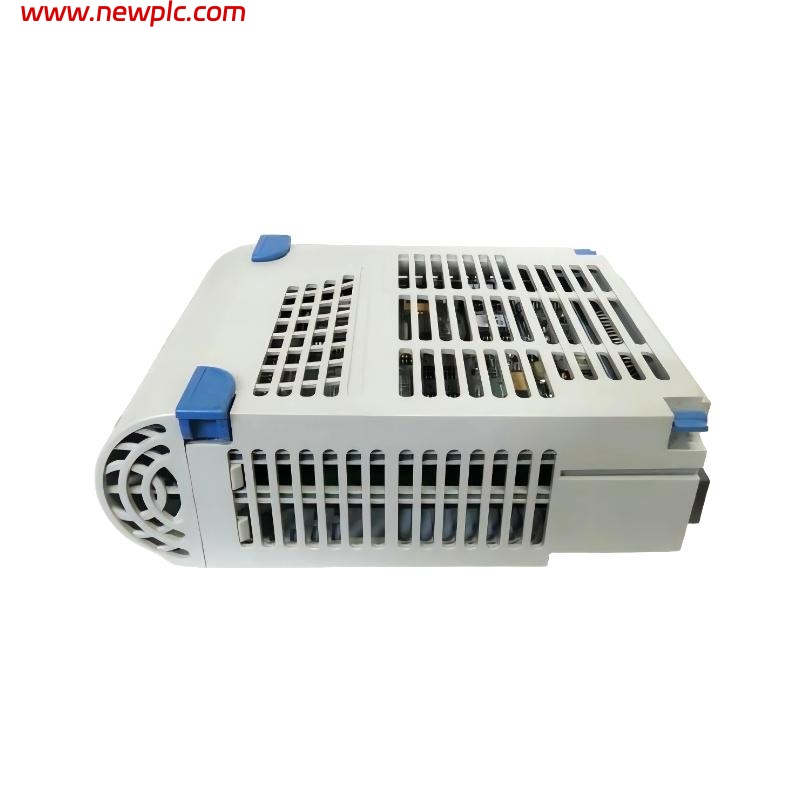

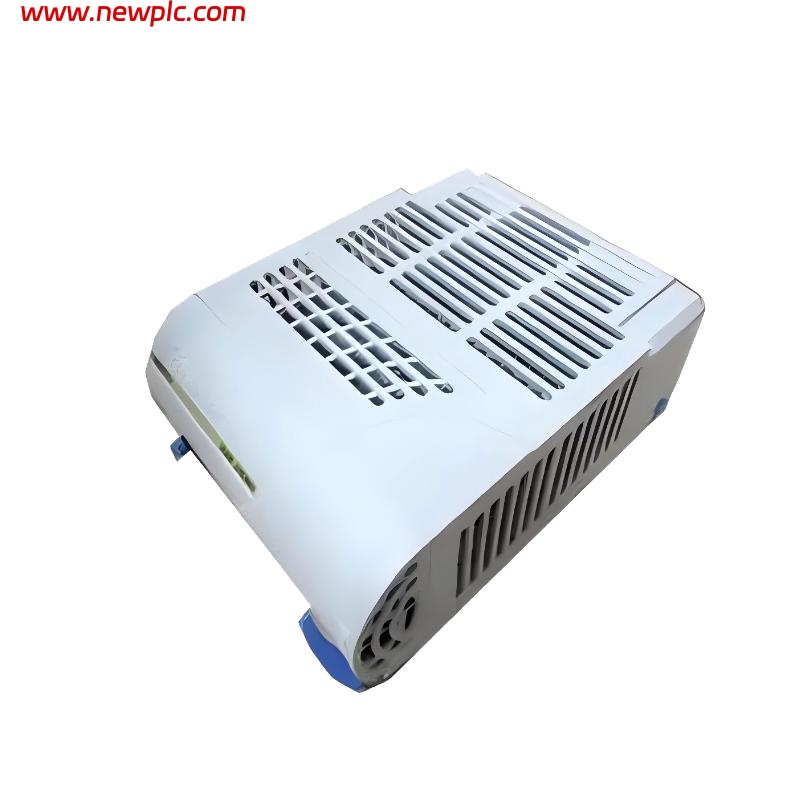

| Model | Ovation 1C31025G02 |
| Type | Digital Output Module |
| System Compatibility | Ovation Distributed Control System |
| Function | Provides digital output control for field devices |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | Approx. 5 W |
| Output Type | Solid-state digital outputs |
| Number of Channels | 16 output channels |
| Output Current Capacity | Up to 0.5 A per channel |
| Response Time | < 1 millisecond |
| Communication Interface | Ovation system bus |
| Isolation | Channel-to-bus galvanic isolation |
| Diagnostic Functions | Output status monitoring, fault detection |
| Redundancy Support | Supported through system configuration |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protection Class | IP20 |
| Compliance Standards | IEC, CE, and ANSI industrial standards |
| Dimensions | 41 × 159 × 108 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the primary function of the Ovation 1C31025G02 module?
A1: The 1C31025G02 provides digital output control for field devices within the Ovation Distributed Control System.
Q2: How many output channels does the 1C31025G02 provide?
A2: The module offers 16 solid-state digital output channels.
Q3: What is the response time of the 1C31025G02?
A3: The module features a response time of less than 1 millisecond, enabling fast control actions.
Q4: What communication interface does the 1C31025G02 use?
A4: It communicates via the Ovation system bus for integration with other system modules.
Q5: Does the 1C31025G02 provide galvanic isolation?
A5: Yes, it includes channel-to-bus galvanic isolation to protect against electrical interference.
Q6: What diagnostic functions are available in the 1C31025G02?
A6: The module monitors output status and detects faults to ensure reliable operation.
Q7: Can the 1C31025G02 be used in redundant configurations?
A7: Yes, redundancy is supported through the Ovation system configuration for critical applications.
Q8: What environmental conditions can the 1C31025G02 operate under?
A8: It operates effectively between 0°C and +60°C with relative humidity from 5% to 95%, non-condensing.
