Technical Specifications
| Parameter | Value |
|---|---|

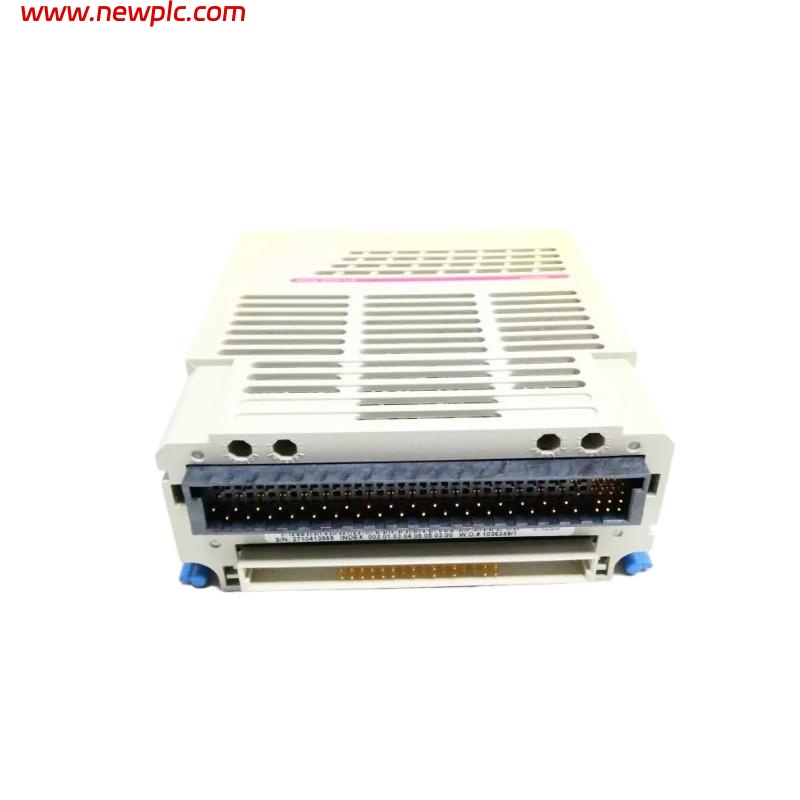

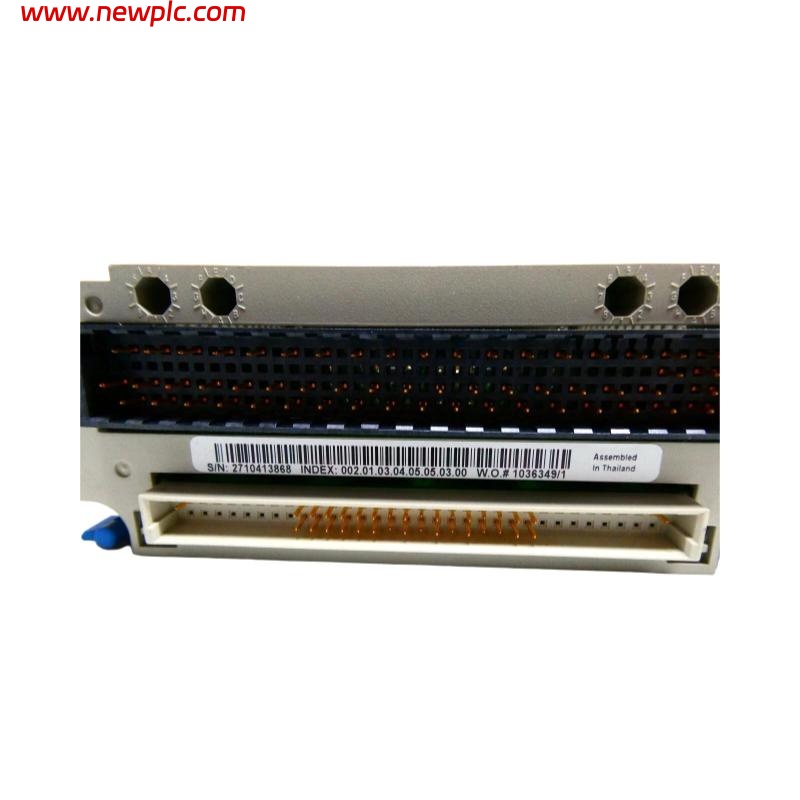

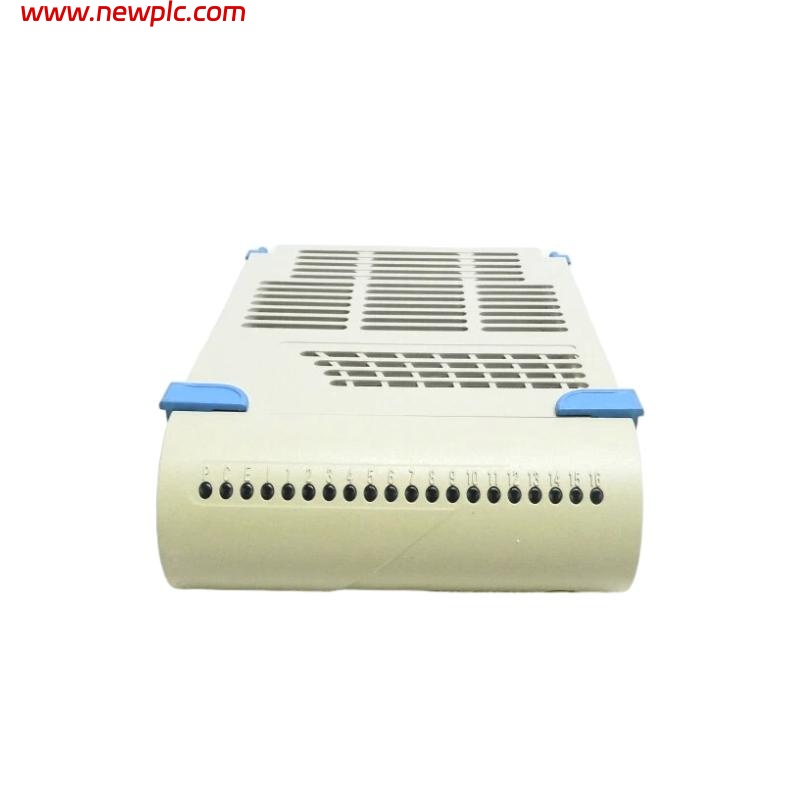

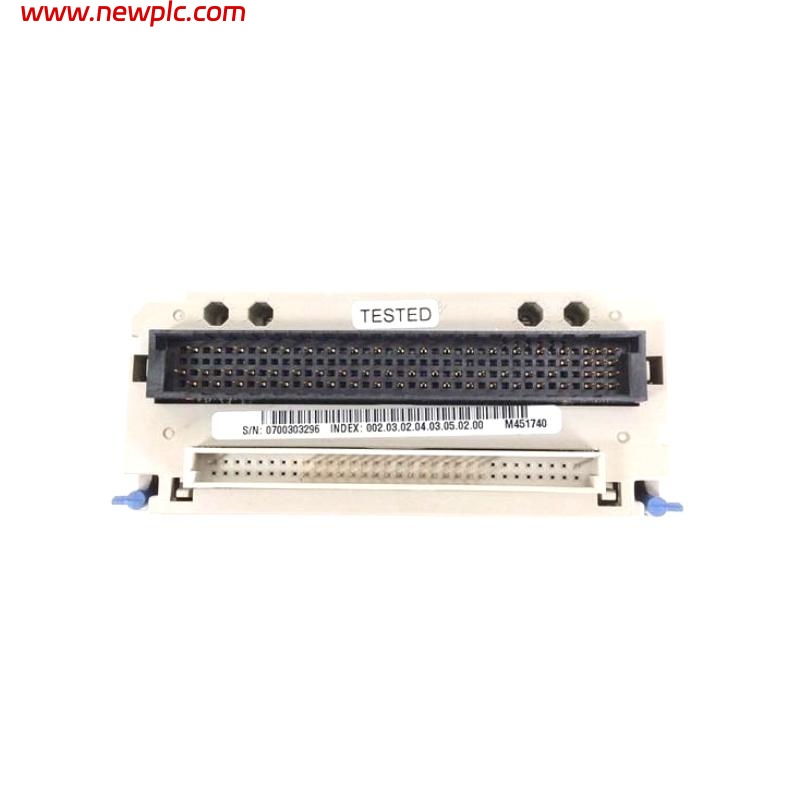

| Module Type | Analog Output Module |
| Output Channels | 8 channels |
| Output Signal | 4–20 mA or 0–10 V (configurable) |
| Resolution | 12 bits |
| Load Resistance | 0–750 Ω |
| Power Supply | 24 VDC nominal |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Humidity | 5–95% non-condensing |
| Dimensions | 40 × 260 × 200 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the number of analog output channels supported?
A1: The 1C31129G01 module supports 8 analog output channels.
Q2: Can it output both voltage and current signals?
A2: Yes, it can be configured for either 4–20 mA current or 0–10 V voltage output.
Q3: What is the resolution of this module?
A3: The resolution is 12 bits.
Q4: What is the operating temperature range?
A4: The operating temperature range is 0–60°C.
Q5: What is the power supply requirement?
A5: It requires a nominal 24 VDC power supply.
Q6: What is the maximum load resistance supported?
A6: Maximum load resistance is 750 Ω.
Q7: What kind of environment can this module be installed in?
A7: It supports 5–95% non-condensing humidity and industrial temperature conditions.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 40 × 260 × 200 mm and weight is approximately 1.1 kg.
