Technical Specifications
| Parameter | Description |
|---|---|

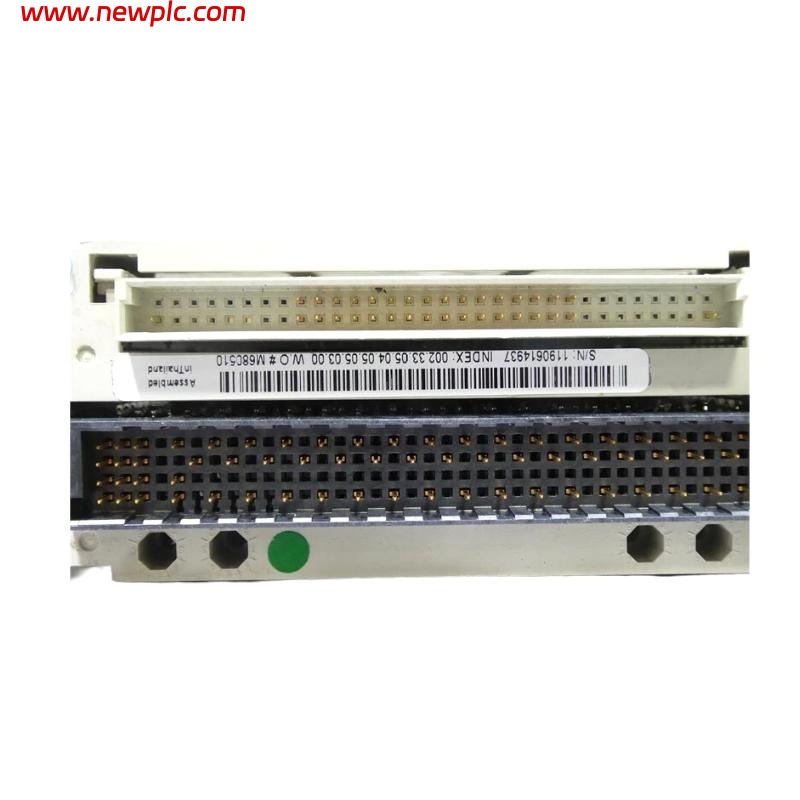

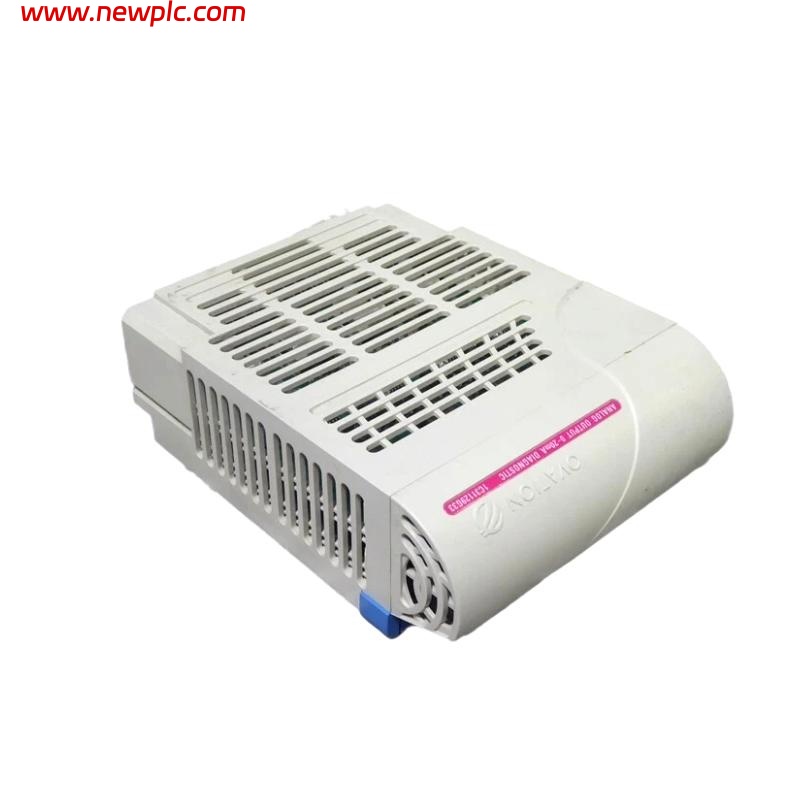

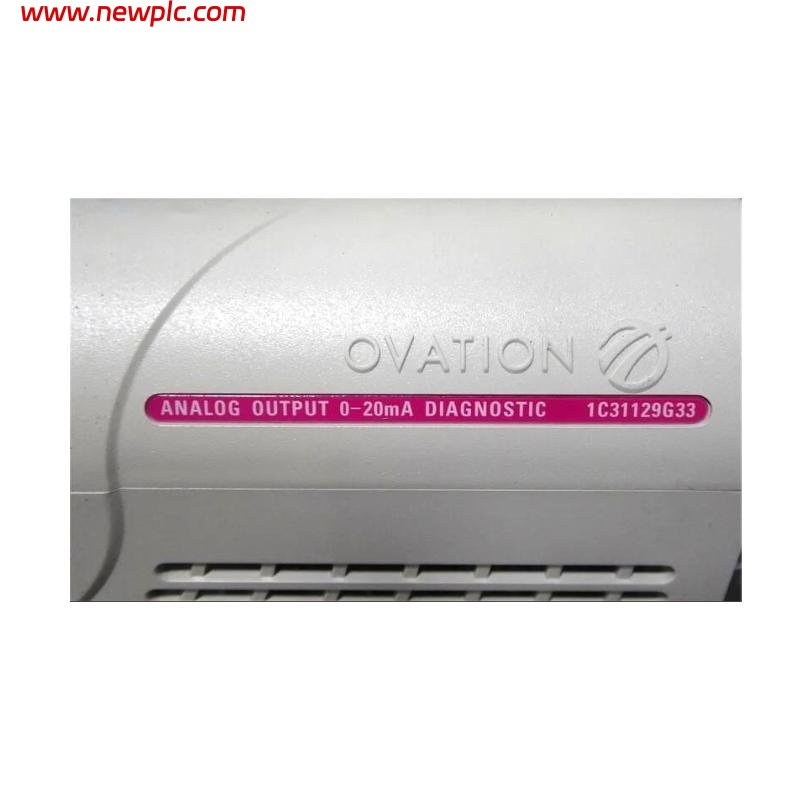

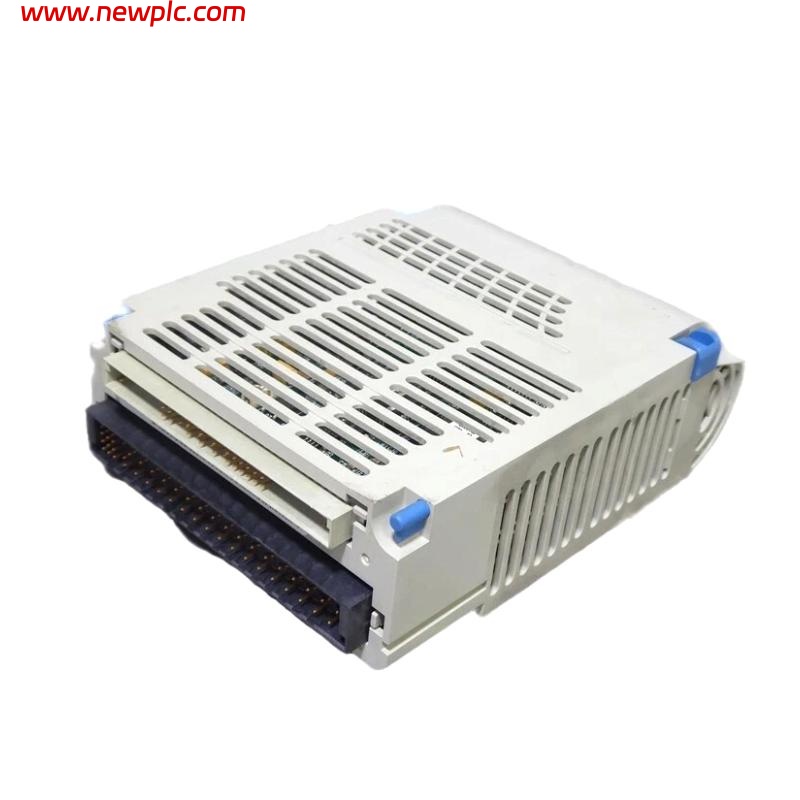

| Product Name | OVATION Diagnostic Analog Output Module |
| Model Number | 1C31129G33 |
| Output Channels | 8 isolated analog output channels |
| Output Type | Current output (typically 4–20 mA) |
| Resolution | 12-bit D/A conversion |
| Diagnostics | Built-in self-diagnostics and loop integrity monitoring |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Power Supply Voltage | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration | 1 G peak, 5–500 Hz |
| Shock | 30 G, 11 ms |
| Installation Type | Standard Ovation I/O base installation |
| Dimensions (H x W x D) | 160 x 45 x 200 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What types of analog output does the module support?
A1: It supports standard 4–20 mA current outputs.
Q2: Does the module include self-diagnostic features?
A2: Yes, the 1C31129G33 includes built-in self-diagnostics and loop integrity monitoring.
Q3: Is there isolation between output channels?
A3: Yes, the module provides galvanic isolation between channels and between channels and system.
Q4: How many output channels are available?
A4: It has 8 independent analog output channels.
Q5: What are the environmental operating conditions for this module?
A5: Operating temperature is 0°C to 60°C, storage temperature is -40°C to 85°C, humidity 5% to 95% non-condensing.
Q6: Can this module be used in redundant systems?
A6: Yes, it supports integration with redundant controllers and I/O configurations.
Q7: How is the module installed?
A7: It is installed in a standard Ovation I/O base and supports hot-swapping.
Q8: Is the module suitable for harsh industrial environments?
A8: Yes, it is designed for industrial use and can be deployed with certified enclosures and proper grounding.
