Technical Specifications
| Parameter | Description |
|---|---|

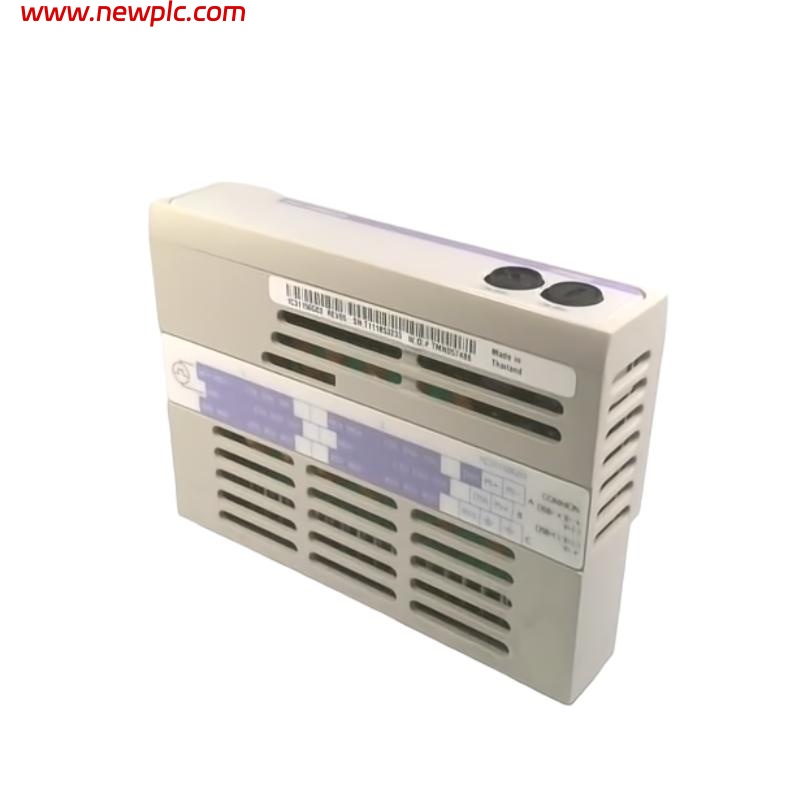

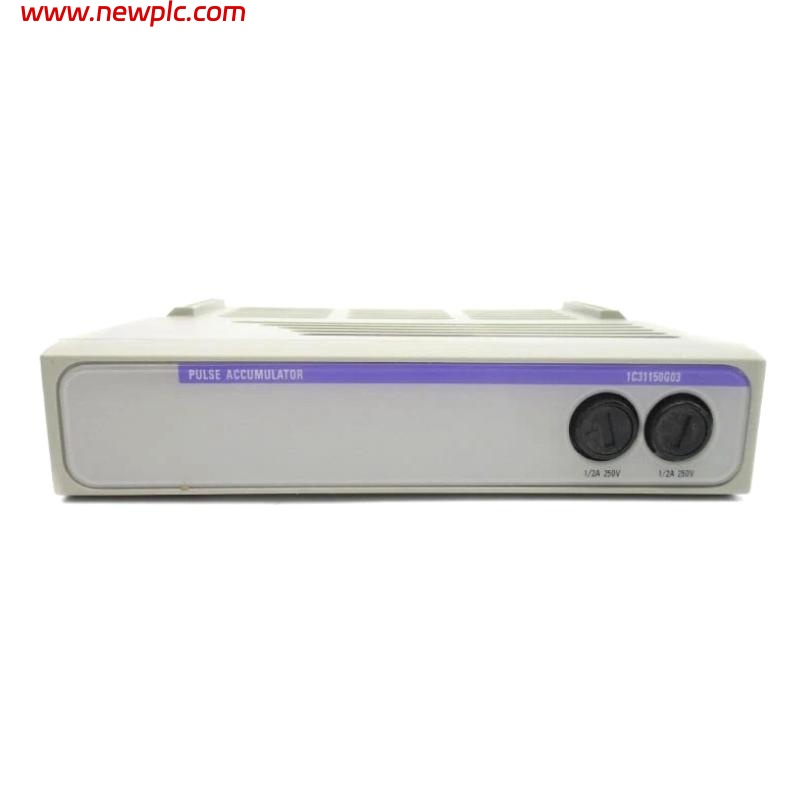

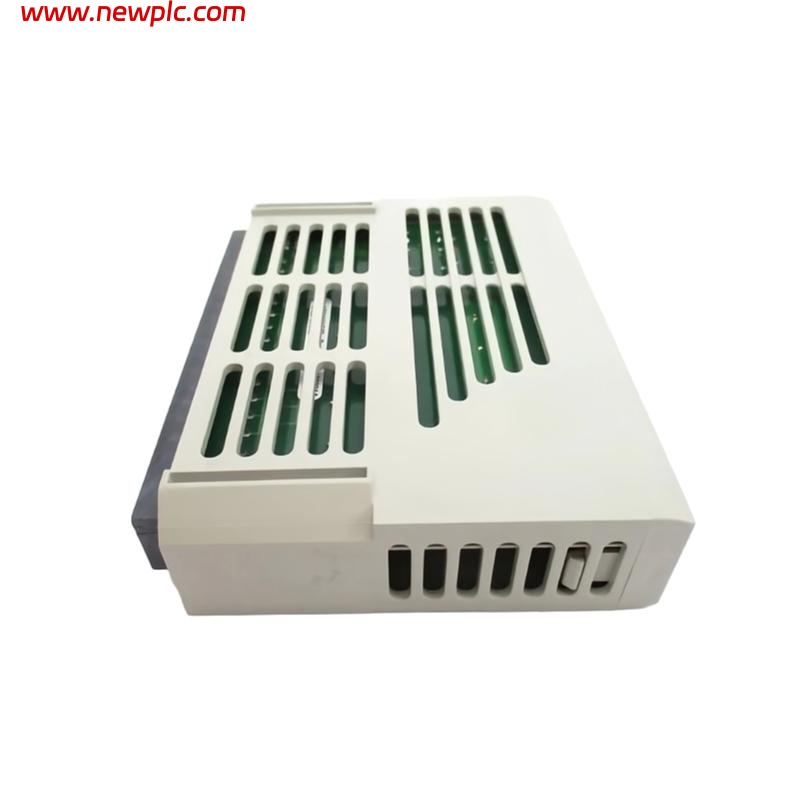

| Model Number | 1C31150G03 |
| Product Type | Pulse Accumulator Personality Module |
| Compatible Electronic Module | 1C31147G01 (Medium Speed), 1C31147G02 (High Speed) |
| Input Channels | 2 |
| Input Voltage Range | 24/48V, 5/12V |
| Input Type | Pulse (frequency, event count, or duration measurement) |
| Mounting | DIN Rail |
| Function | Pulse counting, speed/frequency measurement, or duration timing |
| Fuse Type | 5 x 20 mm cartridge, 0.63A, 250V fast acting |
| Part Number for Fuse | EX06071 |
| Module Configuration | Positive common / Negative common / External power supply configurations |
| Dimensions | 120 x 90 x 60 mm |
| Weight | 0.227 kg |
FAQ
FAQ
Q1: What is the function of the Ovation 1C31150G03 module?
A1: It functions as a personality module for pulse accumulator applications, allowing measurement of pulse count, frequency, or duration.
Q2: Which electronic module is compatible with the 1C31150G03?
A2: It is compatible with the 1C31147G01 (medium speed) and 1C31147G02 (high speed) electronic modules.
Q3: How many input channels does this module support?
A3: The module supports 2 input channels.
Q4: What types of signals can this module measure?
A4: It can measure pulse frequency, event count over time, or pulse duration.
Q5: What is the physical size and weight of the 1C31150G03 module?
A5: The module measures 120 x 90 x 60 mm and weighs 0.227 kg.
Q6: Does this module require a fuse?
A6: Yes, it uses a 0.63A, 250V fast-acting 5×20 mm cartridge fuse (part number EX06071).
Q7: What mounting method is used for this module?
A7: It is mounted on a DIN rail inside the Ovation I/O cabinet.
Q8: Can this module be used with both positive and negative common configurations?
A8: Yes, the 1C31150G03 supports both positive and negative common, as well as external power configurations.
