Technical Specifications
| Item | Specification |
|---|---|

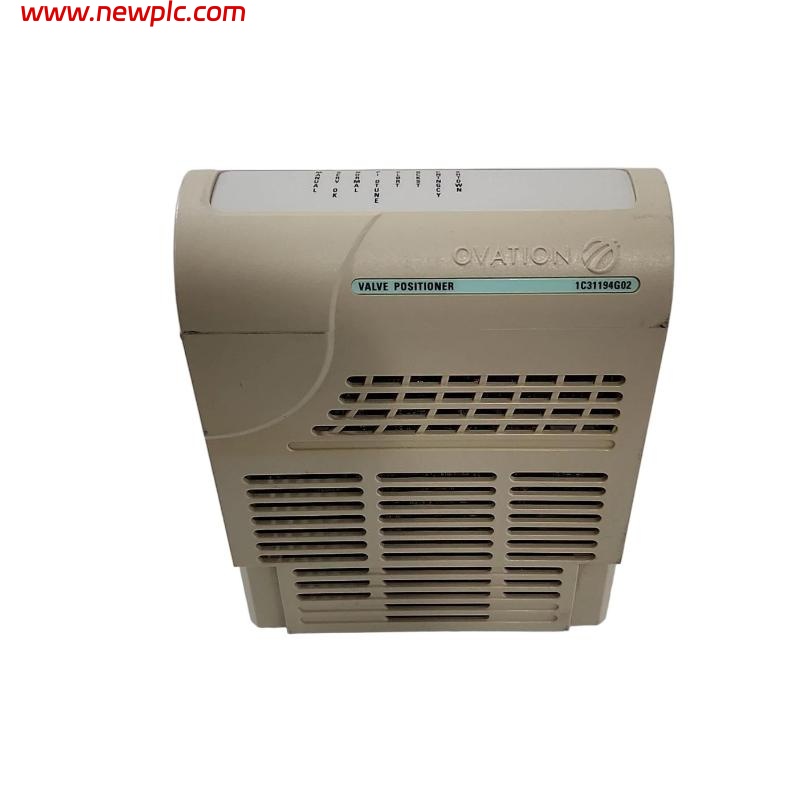

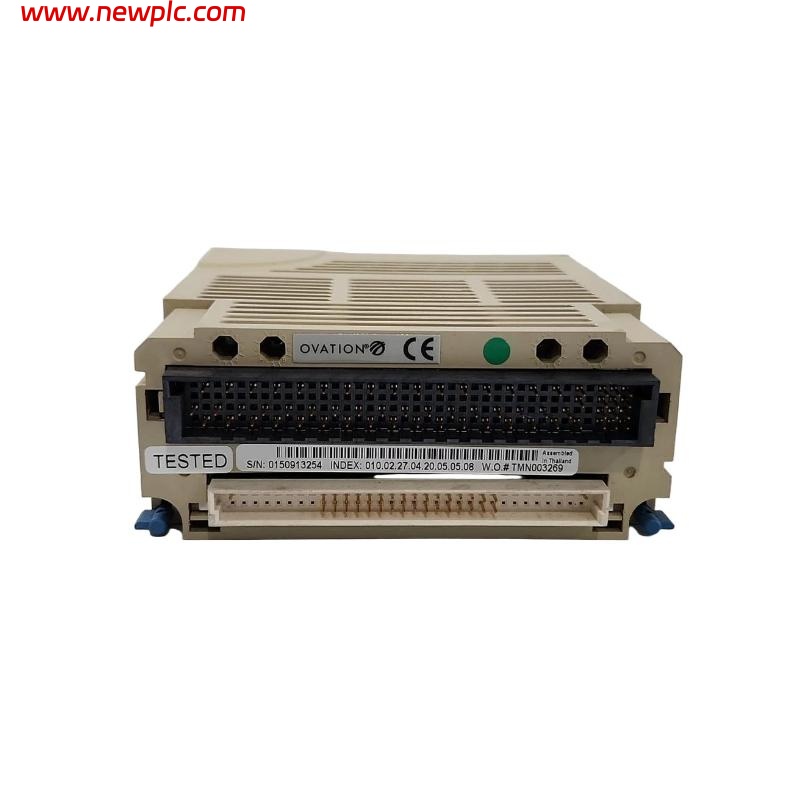

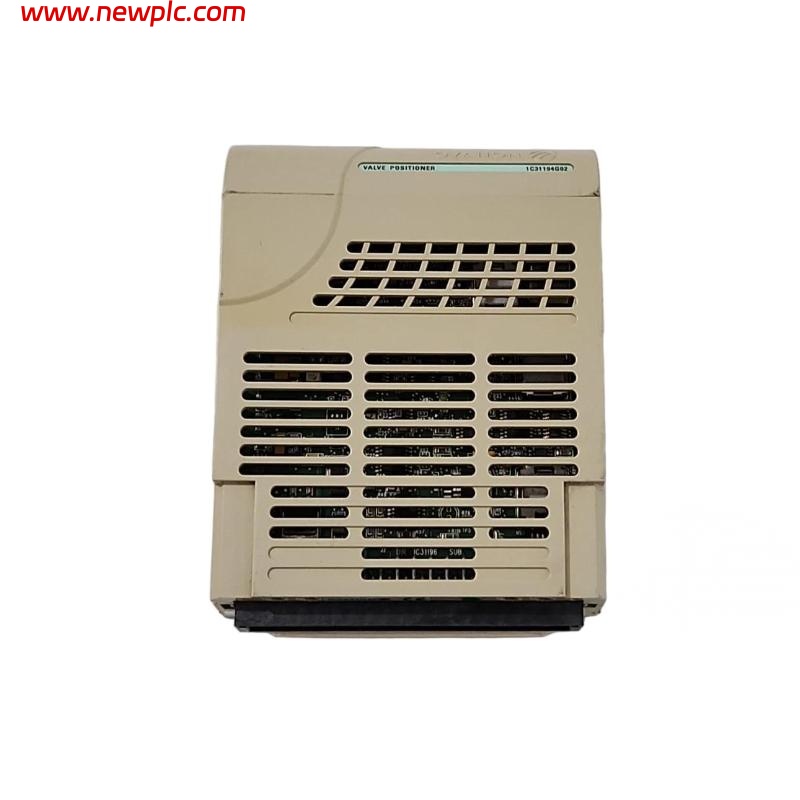

| Model | 1C31194G02 |
| Product Name | Valve Positioner Module |
| System Platform | Emerson Ovation Control System |
| Function | Precisely controls valve position with actuators |
| Input Signal | 4–20 mA current input signal |
| Output Signal | 4–20 mA current output signal |
| Accuracy | ±0.5% of input range |
| Feedback Type | Analog voltage or current feedback signal |
| Communication | Backplane connection with Ovation system |
| Power Requirement | 24 VDC (via backplane) |
| Power Consumption | < 5 W |
| Status Indicators | Module and communication LEDs |
| Mounting Type | Slot-mount for Ovation I/O chassis |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -40°C to 85°C |
| Dimensions | 483 × 178 × 220 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What is the primary function of the 1C31194G02 module?
It is used to precisely control the valve position in conjunction with actuators.
Q2: What type of input signal does the module support?
The module accepts 4–20 mA current input signals.
Q3: Does the module support feedback functionality?
Yes, it supports analog voltage or current feedback signals.

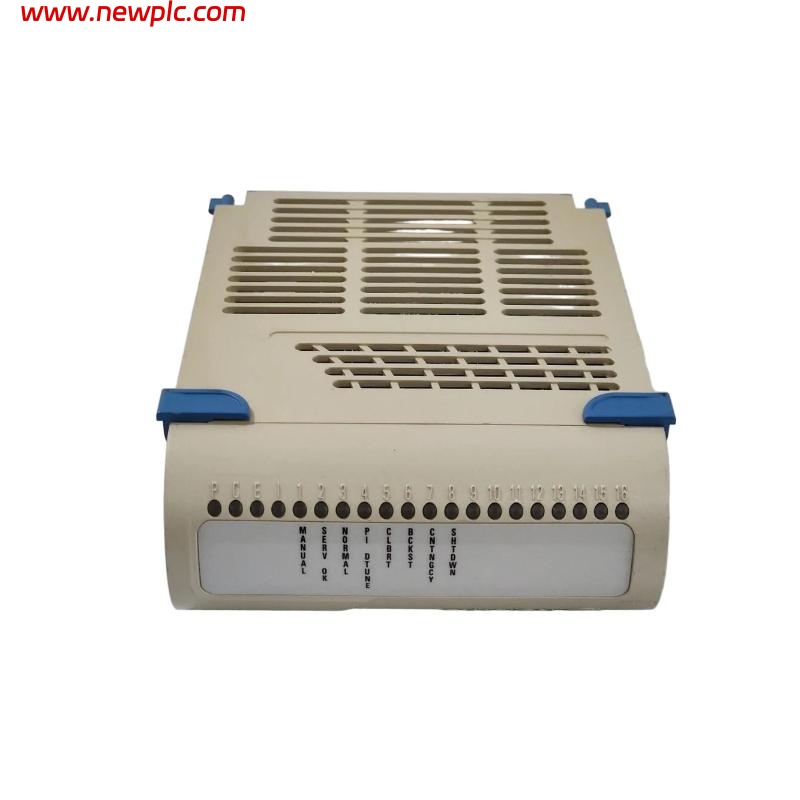

Q4: Does the module have status indicators?
Yes, it has LEDs for module and communication status.
Q5: Does the module support redundancy?
Yes, it can be configured for redundancy to increase system reliability.
Q6: What is the power requirement for the module?
The module is powered by a 24 VDC supply through the system backplane.
Q7: What is the operating temperature range?
The operating temperature range is 0°C to 60°C.
Q8: What are the dimensions and weight of the module?
The dimensions are 483 × 178 × 220 mm, and the weight is approximately 0.34 kg.
