Technical Specifications
| Item | Specification |
|---|---|

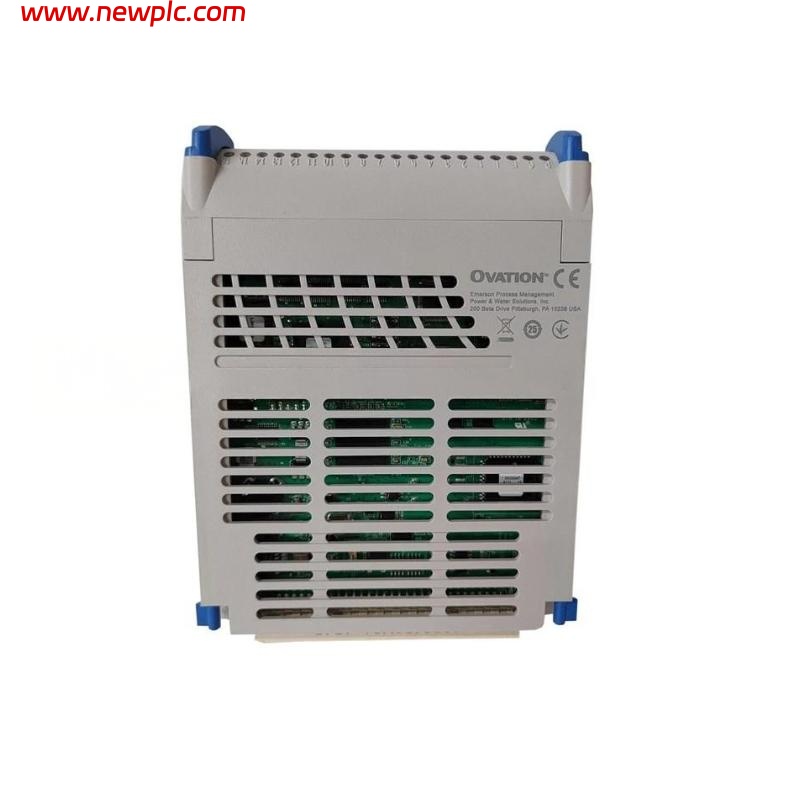

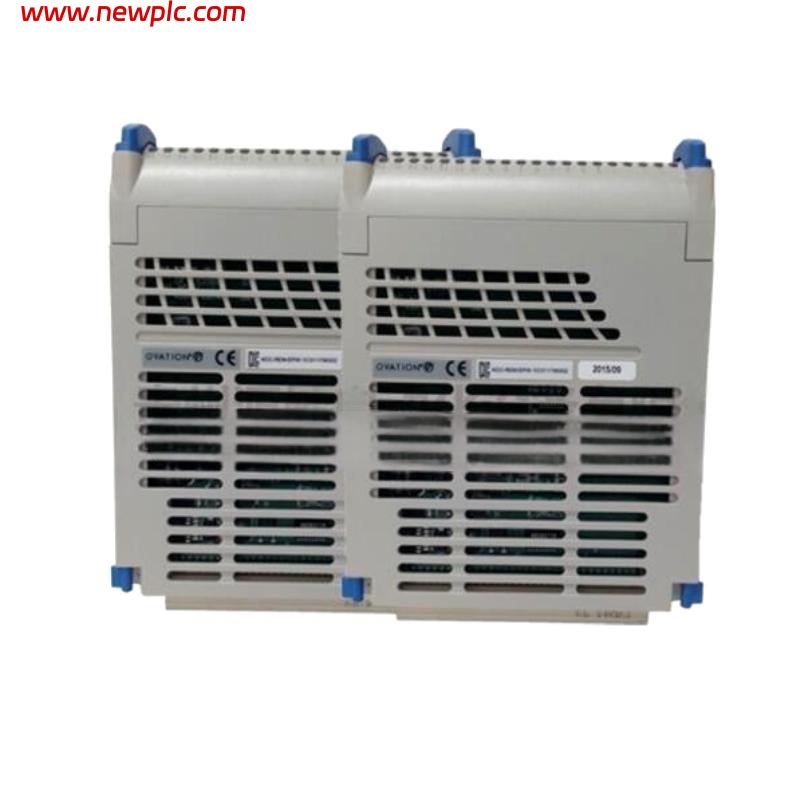

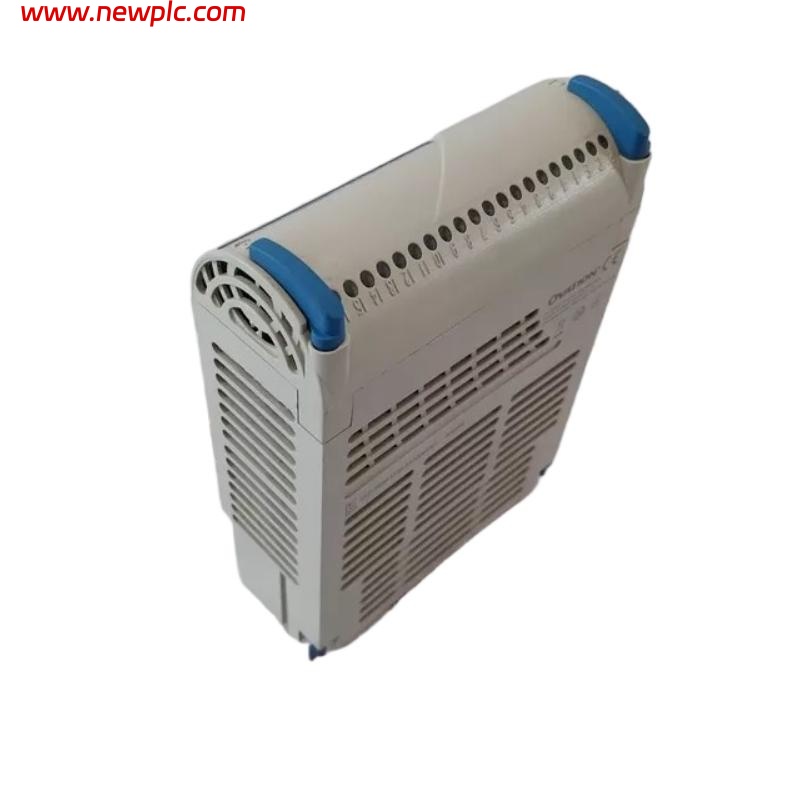

| Model | 1X00690H01 |
| Product Type | Single-ended Digital Input Module |
| Series | Emerson Ovation DCS |
| Input Type | Single-ended digital inputs |
| Number of Channels | 16 channels |
| Input Voltage Level | Typically 24 VDC |
| Isolation | Channel and system isolation |
| Communication | Ovation backplane communication |
| Mounting Method | Rack slot installation |
| Power Supply | Backplane supplied |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -40°C – 85°C |
| Dimensions | 130 × 25 × 150 mm |
| Weight | 0.35 kg |
FAQ
FAQ
1. What is the main function of this module?
A1: It collects digital input signals from field devices.
2. How many input channels does it provide?
A2: It provides 16 single-ended digital input channels.
3. What input voltage level is required?
A3: Typically 24 VDC digital input signals.
4. Does it support isolation?
A4: Yes, the module features isolation for enhanced safety and stability.
5. How is the module installed?
A5: It is inserted directly into the corresponding slot of the Ovation rack.
6. Does it require external power?
A6: No, power is supplied through the Ovation backplane.
7. What are the module’s dimensions and weight?
A7: Dimensions are 130 × 25 × 150 mm, weight approx. 0.35 kg.
8. What applications is this module suitable for?
A8: It is used for digital signal acquisition such as valve status, relay feedback, and switch monitoring.
