Technical Specifications
| Item | Description |
|---|---|

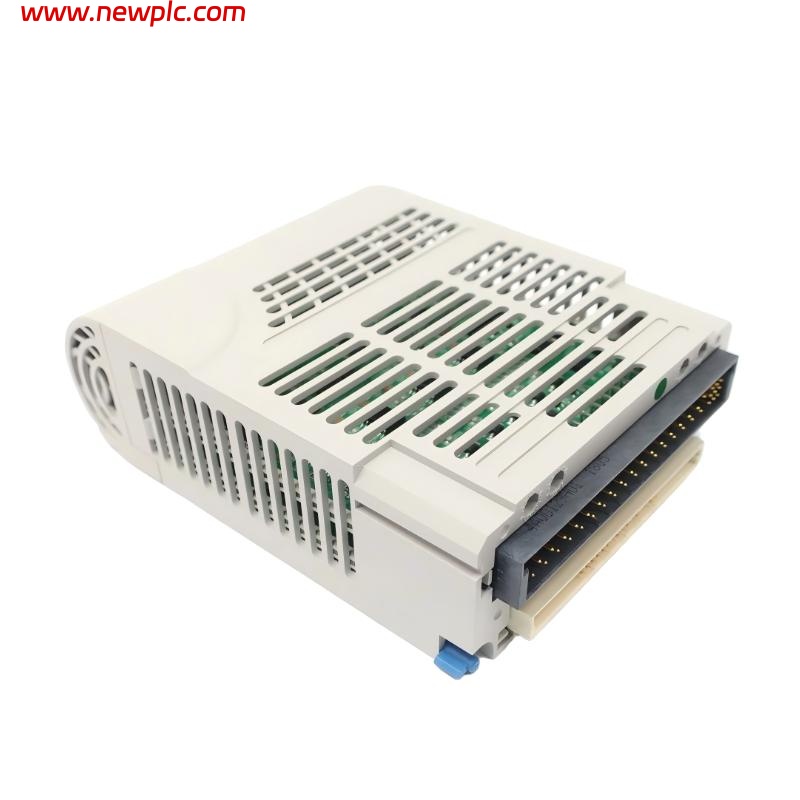

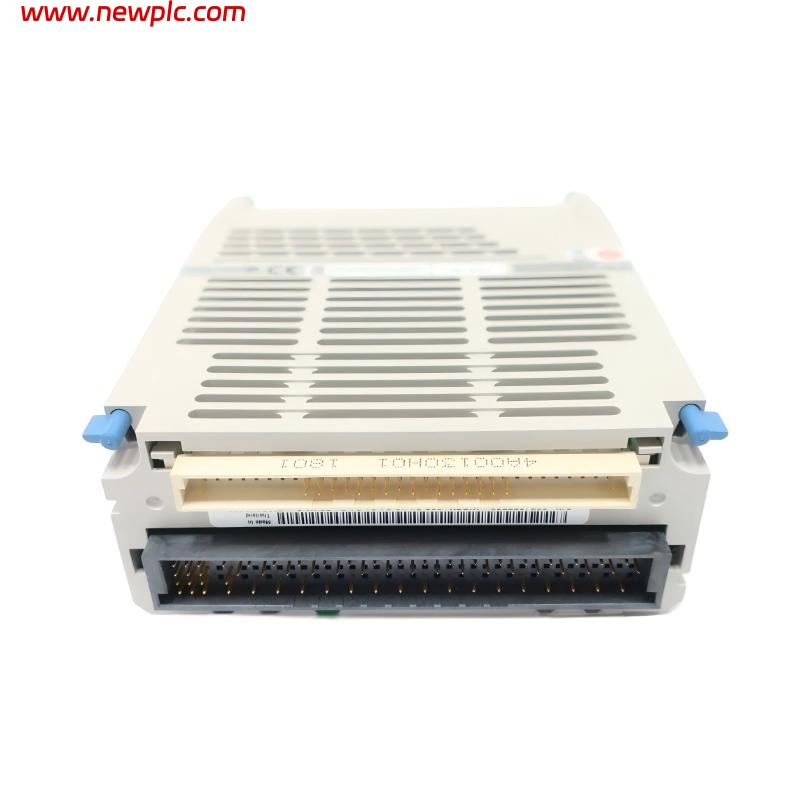

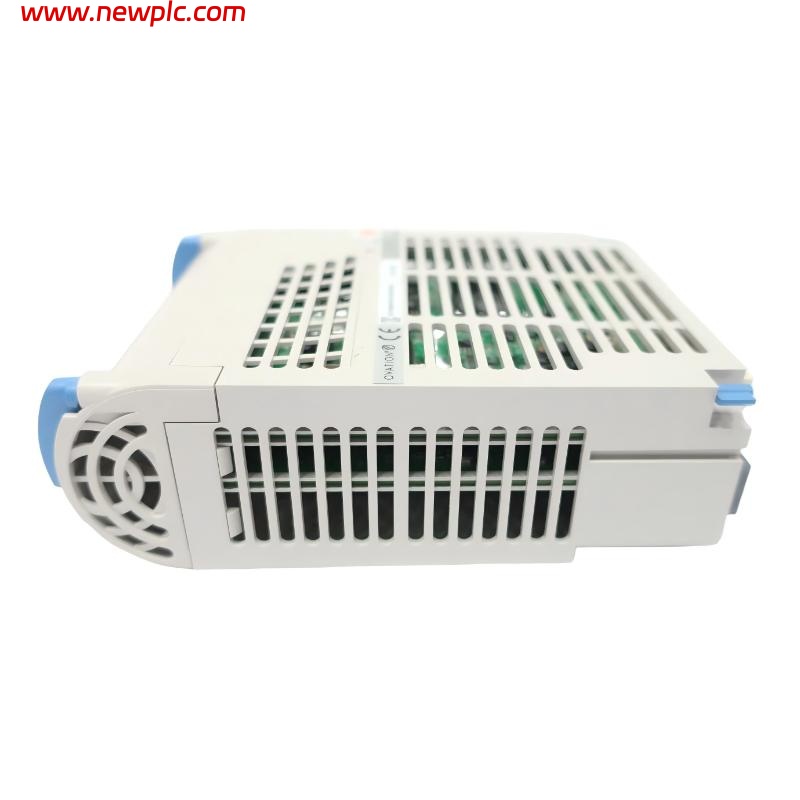

| Product Model | Ovation 5X00454G01 |
| Type | Ethernet Remote I/O Base Assembly |
| Function | Serves as the base assembly for Ethernet-connected remote I/O modules, enabling distributed data acquisition and control |
| Communication | High-speed Ethernet interface for deterministic data transfer between remote I/O modules and Ovation controllers |
| Module Support | Provides mechanical and electrical support for multiple remote I/O modules |
| Signal Handling | Aggregates digital and analog signals from connected modules for system processing |
| Isolation | Electrical isolation between I/O modules and the Ethernet interface to protect the system |
| Diagnostics | Monitors communication status, module health, and detects interface errors |
| Integration | Front-panel and backplane interfaces for seamless connection to Ovation I/O and control systems |
| Operating Method | Continuous data exchange between remote modules and central controllers for monitoring and control |
| Applications | Remote process control, distributed monitoring, and system expansion in industrial automation |
| Cooling | Passive, relies on system airflow for temperature management |
| Dimensions | 200 × 150 × 50 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What is the primary function of the 5X00454G01 in an Ovation system?
A1: It serves as the base assembly for Ethernet-connected remote I/O modules, enabling distributed data acquisition and control.
Q2: How does the base assembly communicate with Ovation controllers?
A2: It uses a high-speed Ethernet interface to ensure deterministic data transfer between remote I/O modules and controllers.
Q3: What types of signals can be handled by the base assembly?
A3: It aggregates both digital and analog signals from connected I/O modules for processing by the Ovation system.
Q4: Does the assembly provide isolation to protect the system?
A4: Yes, electrical isolation is provided between I/O modules and the Ethernet interface to prevent interference.
Q5: Can the base assembly provide diagnostics?
A5: Yes, it monitors communication status, module health, and detects interface errors for system reliability.
Q6: How are modules integrated into the base assembly?
A6: Modules connect via the front-panel and backplane interfaces, ensuring seamless mechanical and electrical integration.
Q7: Is the base assembly suitable for system expansion?
A7: Yes, it allows multiple remote I/O modules to be added, enabling distributed control and monitoring.
Q8: How is the assembly cooled during operation?
A8: It relies on passive cooling with system airflow to maintain proper operating temperatures.
