Technical Specifications
| Item | Specification |
|---|---|
| Product Model | Ovation 5X00499G01 |

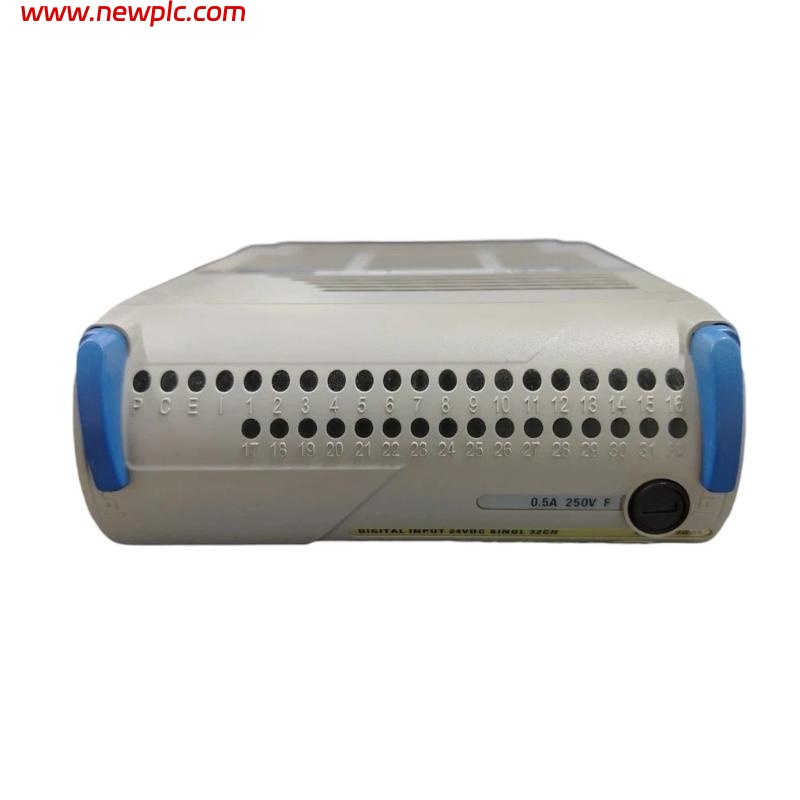

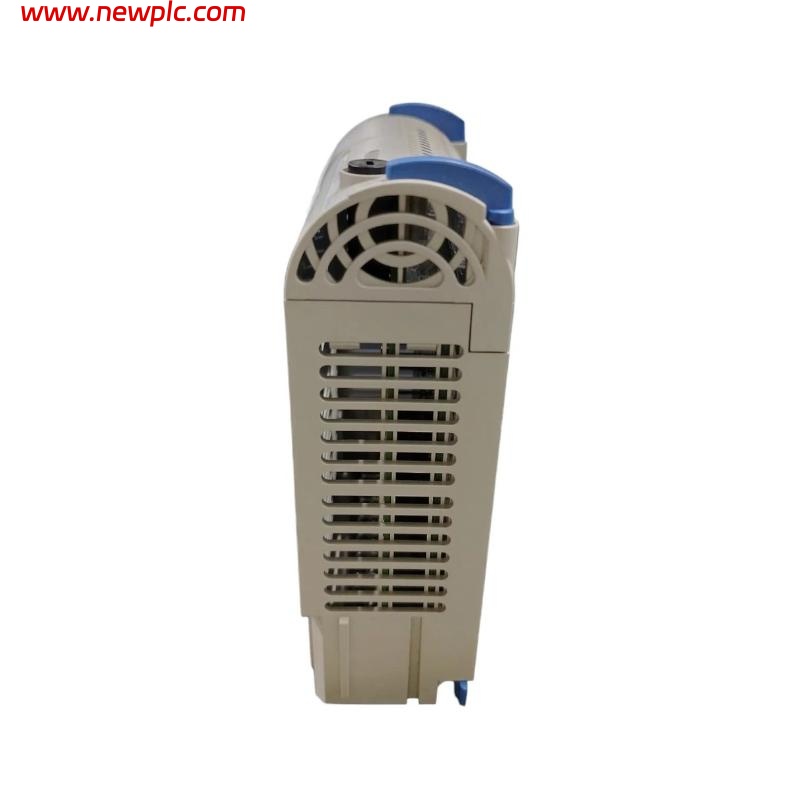

| Product Type | Numeric Input Module |
| Function | Provides digital input signal acquisition for equipment status monitoring in industrial automation systems |
| Input Channels | 16 channels |
| Input Type | 24 VDC digital input |
| Input Voltage Range | 20–30 VDC |
| Input Signal Type | Dry contact, switch input |
| Maximum Input Current | 5 mA (per channel) |
| Isolation | Input isolated from control system logic |
| Power Supply | +24 VDC |
| Power Consumption | Up to 4 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | 180 × 120 × 40 mm |
| Weight | 0.55 kg |
FAQ
FAQ
Q1: What is the main purpose of the Ovation 5X00499G01?
A1: It is used for acquiring digital input signals (such as equipment switch states) for monitoring equipment status in industrial automation systems.
Q2: How many input channels does the module provide?
A2: It provides 16 digital input channels.
Q3: What types of input signals are supported?
A3: It supports 24 VDC digital input signals, including dry contact and switch inputs.
Q4: Does the module provide input isolation?
A4: Yes, the module provides electrical isolation between inputs and the control system logic.
Q5: What is the power supply requirement for the module?
A5: It operates on a +24 VDC power supply.
Q6: What is the operating temperature range?
A6: The operating temperature range is 0°C to +60°C, with a storage temperature range of –40°C to +85°C.
Q7: What are the dimensions and weight of the module?
A7: The module dimensions are 180 × 120 × 40 mm, and the weight is 0.55 kg.
Q8: In what applications is the module typically used?
A8: It is used in power plant automation, process control, and equipment monitoring systems.
